Does the 2 cavity PET blow molding machine come with an automatic preform loader?

The SW-F2 series is compatible with an automatic embryo loader (2×1.2×2.7m). The loader feeds preforms continuously, enabling fully unattended 24-hour production without manual input.

Sailwin 2 Cavity Automatic PET Blow Molding Machine

Home › PET Blow Molding Machine › 2 Cavity

SAILWIN · SW-F2 SERIES · COMPACT ENTRY-LEVEL

2 Cavity PET Blow Molding Machine
2,800 BPH — 100ml to 1,800ml

Q: What is the output of a 2 cavity PET blow molding machine?

The Sailwin SW-F2-650 and SW-F2-2000 both achieve 2,800 bottles per hour theoretical output. The SW-F2-650 handles bottles up to 650ml, while the SW-F2-2000 handles up to 1,800ml.

Q: Can a 2 cavity PET blow molding machine produce custom shaped bottles?

Yes. The SW-F2 series supports custom bottle shapes including bear, square, oval and non-standard profiles. Sailwin manufactures custom molds to match your bottle drawing and validates samples before shipment.

Q: What is the minimum investment to start a PET bottle production line?

The SW-F2-650 2 cavity machine is Sailwin's lowest-cost entry into fully automatic PET blow molding. It includes servo drive, automatic preform loader compatibility, and Mitsubishi PLC control — at a significantly lower price than 4 or 6 cavity machines.

Q: What bottle sizes does the SW-F2 series support?

The SW-F2-650 handles bottles up to 650ml (max height 260mm, max diameter 68mm, neck up to 38mm). The SW-F2-2000 handles up to 1,800ml (max height 330mm, max diameter 105mm, neck up to 45mm).

Q: How much space does the SW-F2 series require?

The SW-F2-650 requires only 2.8×1.9×2.2m floor space and weighs 2,000kg — making it suitable for small factory workshops. The SW-F2-2000 is slightly larger at 3.3×1.8×2.0m, weighing 2,500kg.

Q: How long does mold changeover take on the SW-F2 series?

Physical mold changeover takes approximately 30 minutes with one operator. The Mitsubishi PLC stores up to 50 bottle recipes — switching between saved recipes requires no mechanical re-adjustment.

Q: What certifications and warranty does the Sailwin SW-F2 include?

All SW-F2 machines are CE certified and pass a full factory acceptance test before shipment. A 1-year warranty with remote technical support is included. Spare parts are stocked and dispatched within 24 hours.

The lowest-cost entry into full automatic PET blow molding — compact footprint, full servo drive, custom bottle shape capability. Ideal for startups, small batch producers and specialty bottle manufacturers.

⚡ Servo Features 🍼 Bottle Shapes

✓ 2,800 BPH · 2 cavities

✓ Custom bottle shapes supported

✓ Compact: 2.8×1.9×2.2m

✓ CE certified · Factory direct

WhatsApp View Full Specs ↓

FULL SPECIFICATIONS

2 Cavity PET Blow Molding Machine — SW-F2 Series

Two models on the same compact 2-cavity platform. Choose SW-F2-650 for small bottles up to 650ml, or SW-F2-2000 for larger containers up to 1,800ml.

2-CAVITY SERIES · ENTRY LEVEL

View Full PET Range →

Parameter	Unit	SW-F2-650 2 Cavity · ≤ 650 ml	SW-F2-2000 2 Cavity · ≤ 1,800 ml
CLAMPING SYSTEM
Number of Cavities	pcs	2	2
Clamping Force	kg	35,000	45,000
Mold Stroke	mm	90	110
Stretching Stroke	mm	300	400
Bottom Stroke	mm	50	50
Cavity Pitch	mm	76.2	114.3
Number of Holders	pcs	62	52
CONTAINER
Max Container Volume	ml	650	1,800
Max Container Height	mm	260	330
Max Container Diameter	mm	68	105
Max Preform Height	mm	100	140
Max Neck Diameter	mm	38	45
Theoretical Output	B/H	2,800	2,800
ELECTRICAL SYSTEM
Heating Oven Qty	pcs	2×2	4×4
Number of Lamps	pcs	2×8	4×8
Heating Power	kW	32	48
Installed Power	kW	30	55
AIR SYSTEM
Operating Pressure	MPa	0.7–0.9	0.7–0.9
Blowing Pressure	MPa	2.5–3.0	2.5–3.0
High Pressure Air Consumption	L/min	2.4/30	2.4/30
CHILLER SYSTEM
Chiller Power	HP	3	3
MACHINE DIMENSIONS & WEIGHT
Machine Dimension (L×W×H)	m	2.8×1.9×2.2	3.3×1.8×2.0
Machine Weight	kg	2,000	2,500
Embryo Loader Size	m	2×1.2×2.7	2×1.2×2.7

Need a custom bottle shape or non-standard neck size? Send us your drawing.

PRECISION AUTOMATION

Mechanical Arm Transfer & High-Pressure Blowing Station

The SW-F2 series runs fully unattended — mechanical arm transfer eliminates manual bottle handling, while the high-pressure blowing station ensures consistent shape at every cycle.

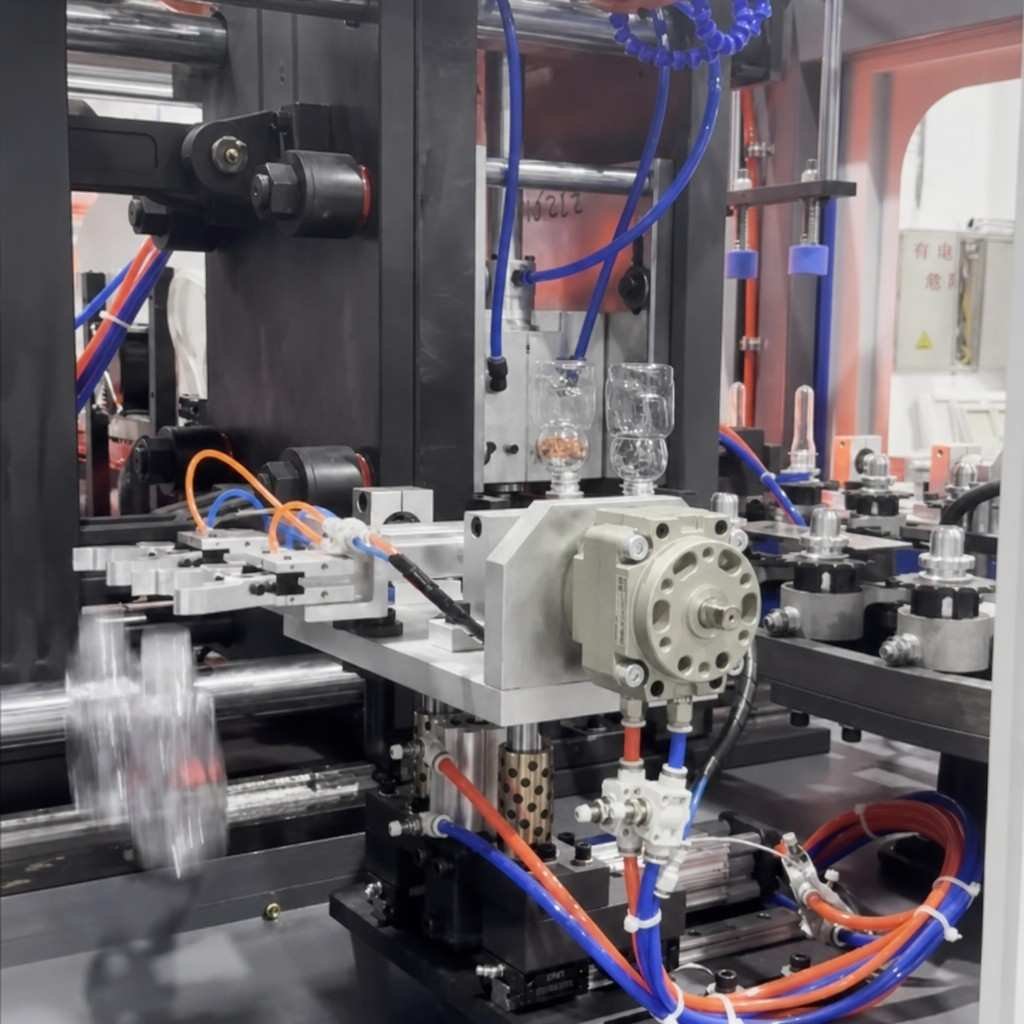

2 cavity PET blow molding machine mechanical arm bottle transfer detail Sailwin SW-F2

Mechanical arm · precision bottle transfer system

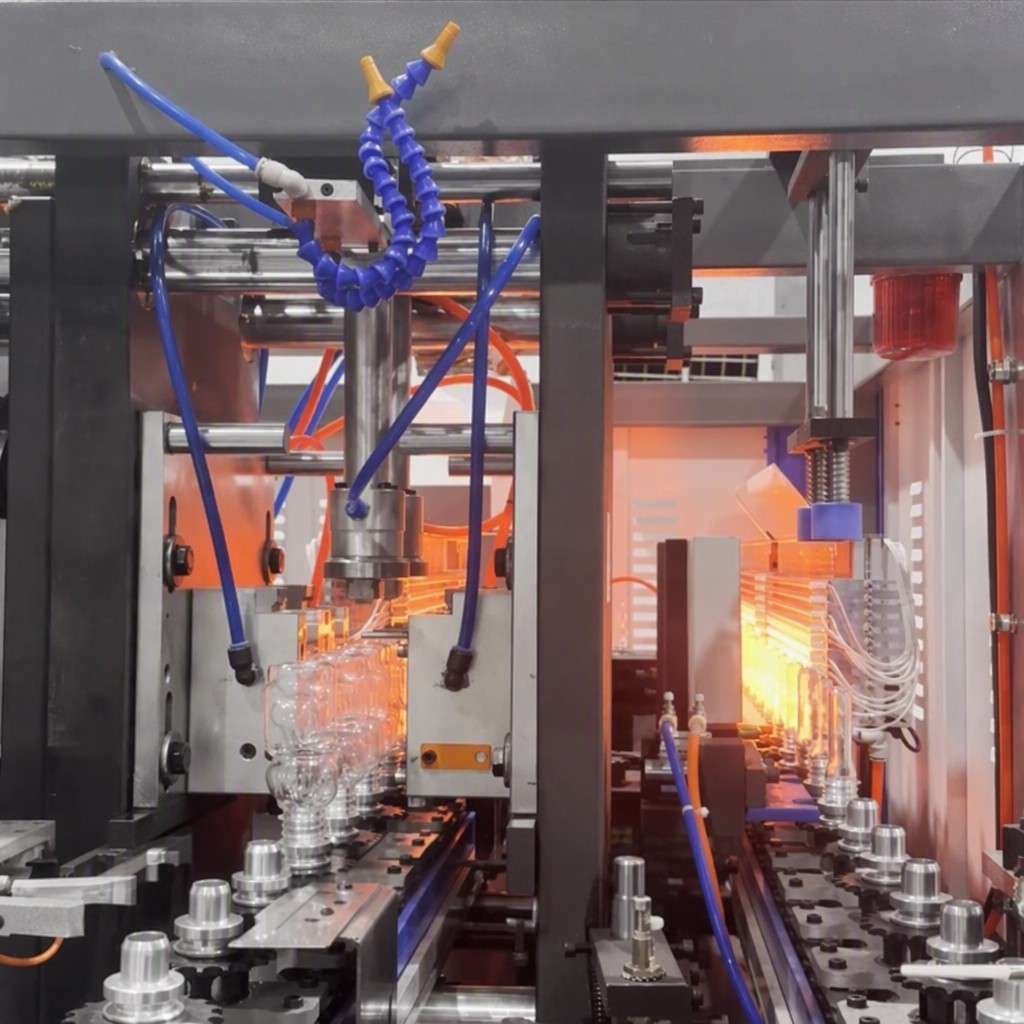

2 cavity PET blow molding machine high pressure blowing station mold Sailwin SW-F2

High-pressure blowing station · 2.5–3.0 MPa · full cycle view

🦾

Automated Bottle Transfer

Servo-driven mechanical arm picks and places each bottle with ±0.1mm repeatability — no manual intervention required.

💨

High-Pressure Blowing

2.5–3.0 MPa blowing pressure with pre-blow + main blow two-stage control — consistent wall thickness on complex bottle profiles.

🔩

35,000–45,000 kg Clamping

Heavy-duty servo clamping unit locks the mold without flash or deformation — suitable for custom shaped and wide-body bottles.

CORE TECHNOLOGY

Built for Custom Bottles — Three Core Systems

Where most 2-cavity machines only handle standard round bottles, the SW-F2 series supports complex custom shapes — bear bottles, square, oval and non-standard profiles.

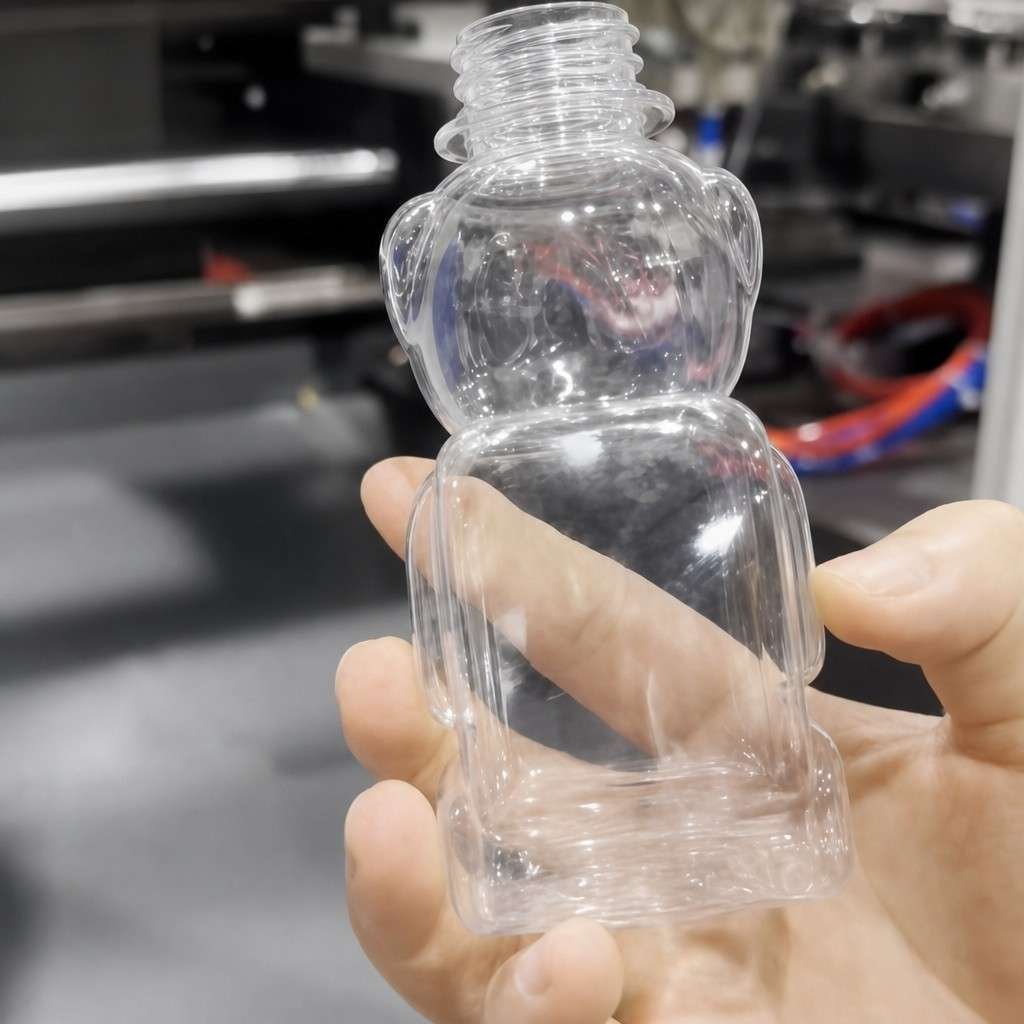

2 cavity PET blow molding machine custom shaped bear bottle sample output Sailwin SW-F2

CUSTOM SHAPES

Bear, Square & Oval Bottles

Handles complex custom bottle shapes easily. Submit your drawing — we manufacture matching molds and validate them before shipment.

✓ Custom mold design available
✓ Max neck: 38mm (F2-650) / 45mm (F2-2000)
✓ Pre-shipment bottle sample test

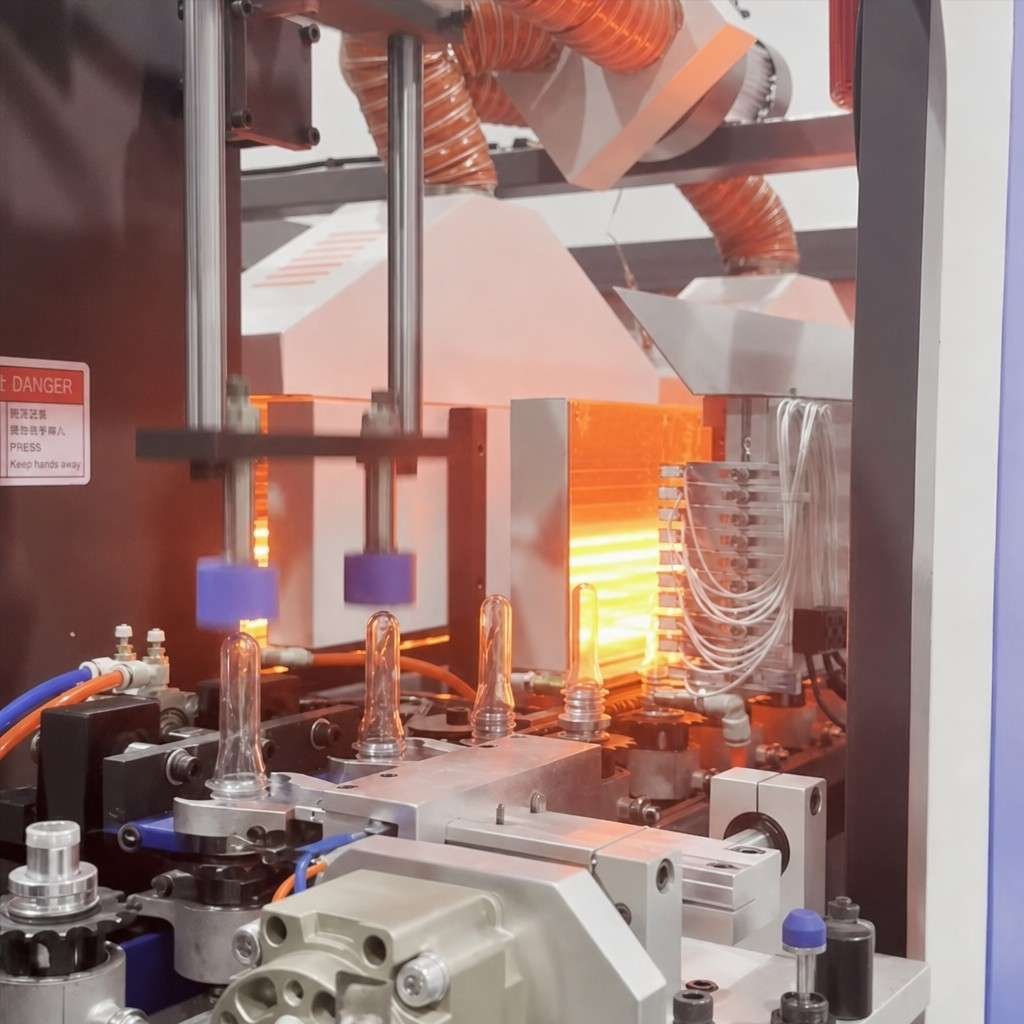

2 cavity PET blow molding machine infrared preform heating zone Sailwin SW-F2

INFRARED HEATING

Precision Preform Heating Ovens

Multi-zone infrared oven with independent temperature control per lamp row, ensuring uniform wall thickness even for complex shapes.

✓ 2×2 ovens (F2-650) / 4×4 ovens (F2-2000)
✓ 32–48 kW heating power
✓ ±1°C zone temperature control

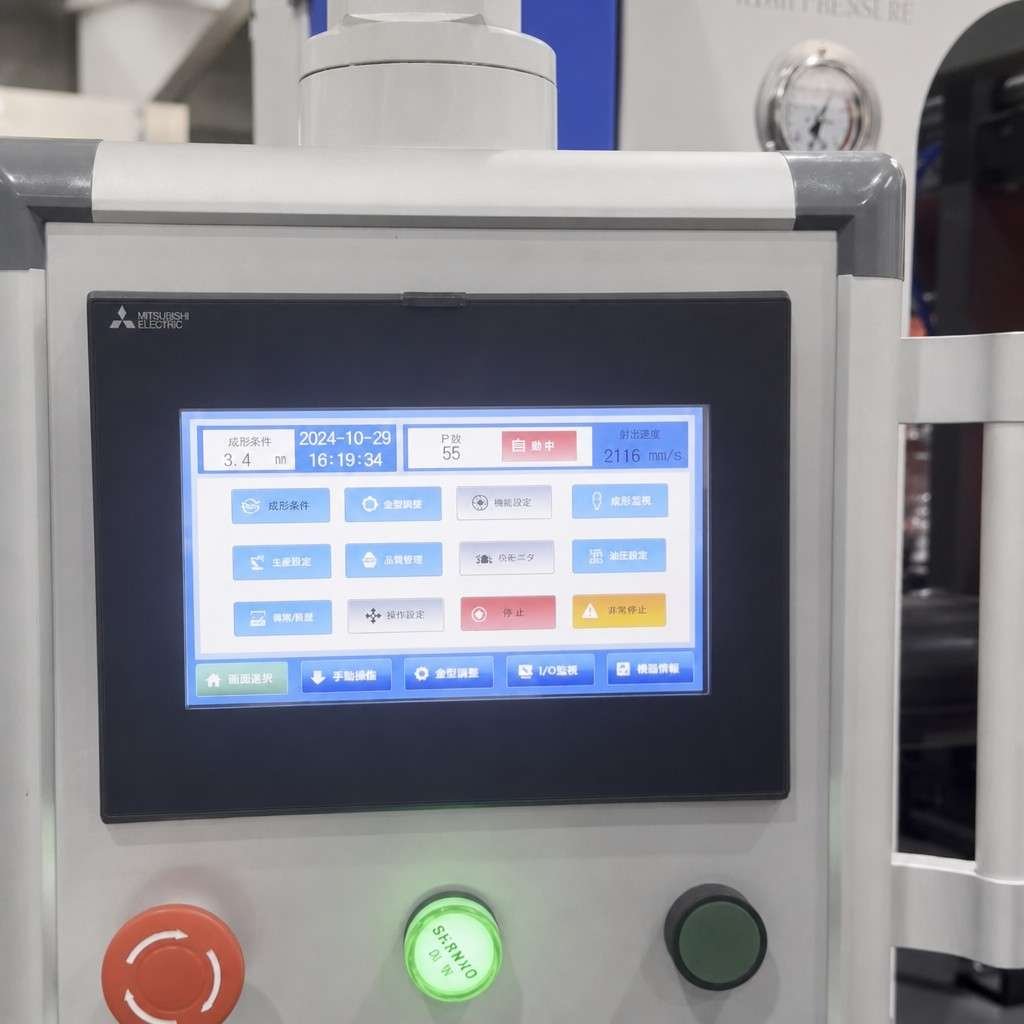

Mitsubishi touchscreen control panel 2 cavity PET blow molding machine Sailwin SW-F2

CONTROL SYSTEM

Mitsubishi PLC & 50 Recipes

Full-colour touchscreen with real-time diagnostics. Stores 50 bottle recipes for quick 30-minute mold switchover without recalibration.

✓ Mitsubishi Electric PLC
✓ 50-recipe memory store
✓ Real-time self-diagnostics

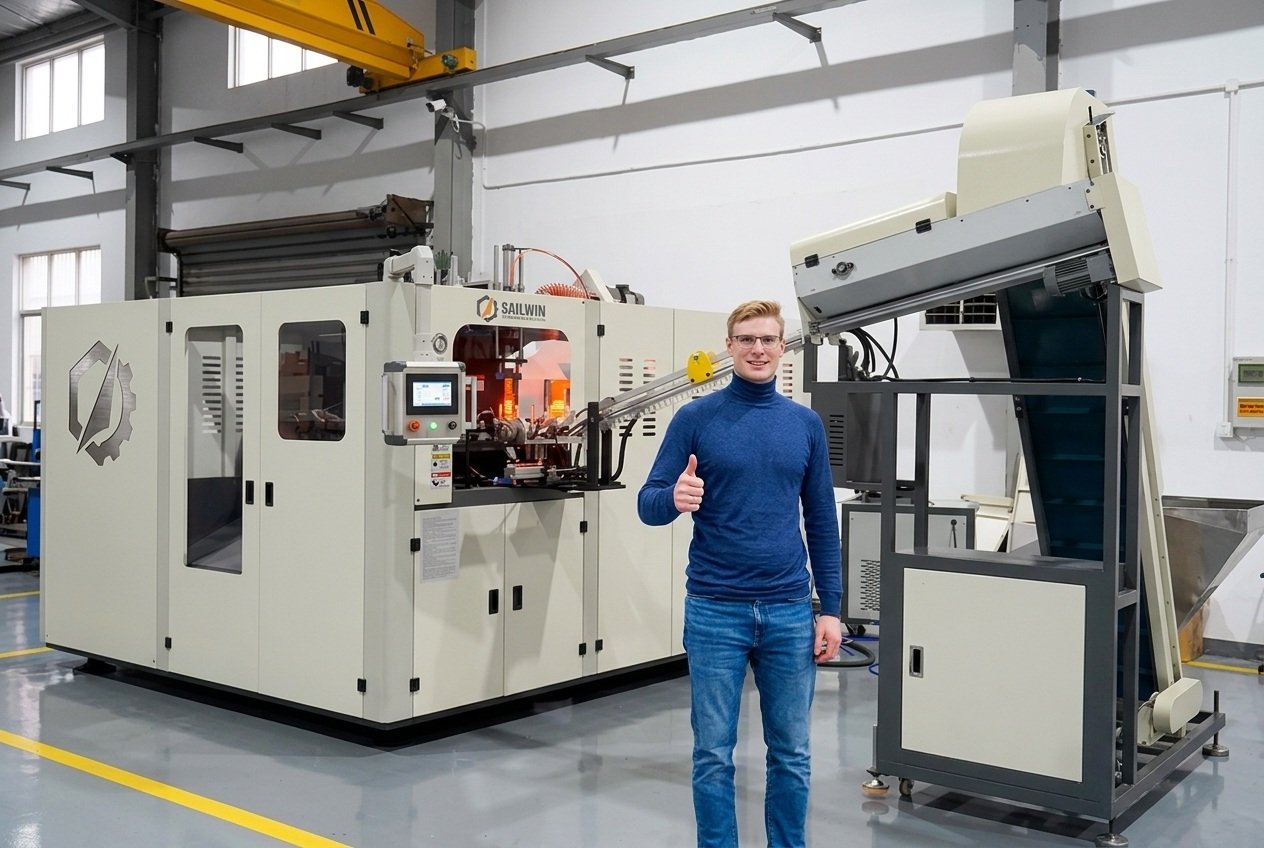

European customer thumbs up with Sailwin 2 cavity PET blow molding machine factory visit

CUSTOMER TRUST

Trusted by Startups & Specialty Bottle Producers Worldwide

The SW-F2 series is the first machine for dozens of bottle manufacturers who needed full automation without the capital cost of a 4 or 6 cavity line. From custom shaped juice bottles in Europe to personal care containers in Southeast Asia — the SW-F2 delivers.

60+

Countries

2008

Est. Year

1yr

Warranty

FAQ

2 Cavity PET Blow Molding Machine — Frequently Asked Questions

What is the output of a 2 cavity PET blow molding machine? ＋

The Sailwin SW-F2-650 and SW-F2-2000 both achieve 2,800 bottles per hour theoretical output. The SW-F2-650 handles bottles up to 650ml, while the SW-F2-2000 handles up to 1,800ml edible oil or condiment containers.

In contrast to semi-automatic machines, the 2 cavity fully automatic platform runs without manual preform loading — consequently reducing labour cost by 60–70% on the same shift.

Can a 2 cavity PET blow molding machine produce custom shaped bottles? ＋

Yes — this is a key advantage of the SW-F2 series. The machine supports custom bottle shapes including bear, cartoon, square, oval and non-standard profiles that standard machines cannot produce.

Sailwin manufactures a custom mold to match your bottle drawing, validates the sample in-factory, and ships the mold together with the machine. Furthermore, mold changeover takes under 30 minutes.

What is the minimum investment to start a PET bottle production line? ＋

The SW-F2-650 is Sailwin's lowest-cost entry into fully automatic PET blow molding. It includes full servo drive, Mitsubishi PLC control, and automatic preform loader compatibility — at significantly lower investment than 4 or 6 cavity machines.

In addition, the compact 2.8×1.9×2.2m footprint means it can be installed in small factory workshops without major renovation. Contact us for a factory-direct price.

What bottle sizes does the SW-F2 series support? ＋

The SW-F2-650 handles bottles up to 650ml (max height 260mm, max diameter 68mm, neck up to 38mm). The SW-F2-2000 handles up to 1,800ml (max height 330mm, max diameter 105mm, neck up to 45mm).

Both models support water, juice, personal care, edible oil and custom specialty bottles. Specifically, if your bottle is non-standard, send us the drawing and we will confirm compatibility.

Does the 2 cavity PET blow molding machine include an automatic preform loader? ＋

Yes. The SW-F2 series is compatible with an automatic embryo loader (2×1.2×2.7m). It continuously feeds preforms into the heating zone — enabling fully unattended 24-hour operation with one operator per shift.

The loader is available as an optional add-on. Furthermore, if you are planning a complete filling line, our team can advise on full turnkey configuration.

How much space does the SW-F2 series require? ＋

The SW-F2-650 requires only 2.8×1.9×2.2m floor space and weighs 2,000kg — one of the most compact fully automatic PET blow molding machines available. The SW-F2-2000 is slightly larger at 3.3×1.8×2.0m, weighing 2,500kg.

In addition, both models include the embryo loader (2×1.2×2.7m) as a separate unit — plan for a combined footprint of approximately 5×3m including loader and working clearance.

How long does mold changeover take on the SW-F2 series? ＋

Physical mold changeover takes approximately 30 minutes with one operator. The Mitsubishi PLC stores up to 50 bottle recipes — switching between saved recipes requires no mechanical re-adjustment.

Consequently, if you produce 2–5 bottle formats on the same machine, the SW-F2 is specifically designed to minimise changeover downtime between runs.

What certifications and warranty does the Sailwin SW-F2 include? ＋

All SW-F2 machines are CE certified and pass a full factory acceptance test before shipment. Each machine is run at full speed with your target bottle for final validation.

A 1-year full warranty is included with remote technical support via video call. In addition, spare parts are stocked in-factory and dispatched within 24 hours of request.

SAILWIN MACHINERY · EST. 2008 · FACTORY DIRECT

2,800 BPH · Custom Bottles Welcome
CE Certified · Ships in 45–60 Days

The team behind every SW-F2 machine — 16 years of PET blow molding expertise, factory direct pricing, and a custom mold service that most suppliers cannot offer.

Tell us your bottle shape, size and daily output target — we'll send a tailored quote within 24 hours.
