PET Blow Molding Machine
Full Range — 2 to 9 Cavities
Factory-direct PET bottle blowing machines covering fully automatic, semi-automatic, wide-neck JAR and large-volume series. From 0.1L to 20L · 800 to 16,000 BPH · CE certified · shipped to 60+ countries.
PRODUCT SERIES
Choose Your PET Blow Molding Machine Series
Every series is engineered for a specific production scenario. Select your category below to explore models, specifications and pricing.
Fully Automatic PET Blow Molding Machine
Servo-driven, fully automatic PET stretch blow molding machines for continuous 24/7 production. Ideal for water, CSD, edible oil and hot-fill bottle manufacturing at scale.
| Model | Cavities | Output (BPH) | Max Volume |
|---|---|---|---|
| SW-F2-650 | 2 | 2,800 | 650ml |
| SW-F4-650 | 4 | 5,500 | 600ml |
| SW-F4-2000 | 4 | 4,500 | 1,800ml |
| SW-F6-2000 | 6 | 7,500 | 1,800ml |
| SW-F6H-800 High Speed | 6 | 12,000 | 800ml |
| SW-F8H-800 High Speed | 8 | 16,000 | 800ml |

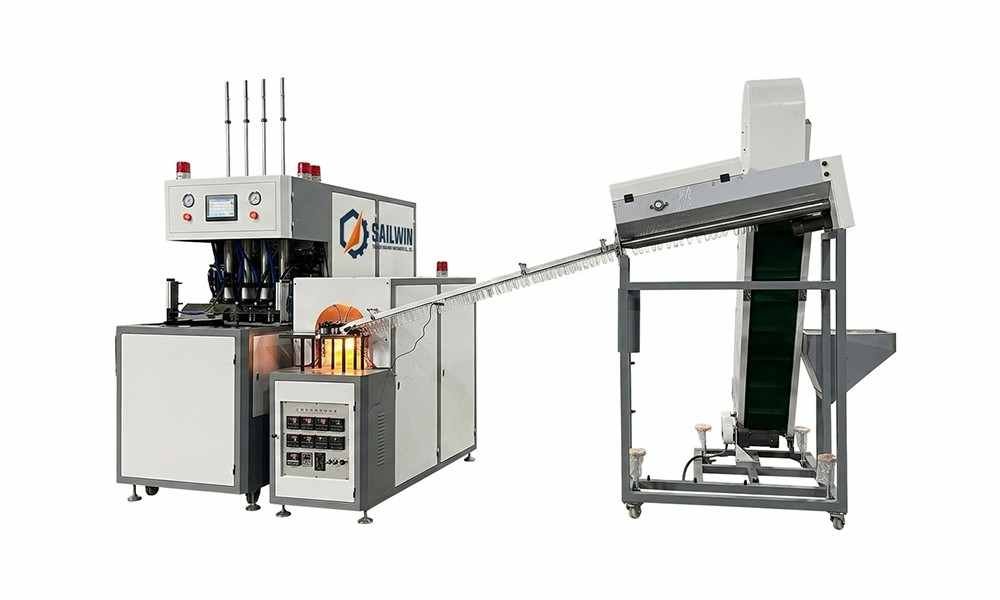

Semi-Automatic PET Blow Molding Machine
Manual preform loading with automatic blowing cycle. Lower initial investment, easy operation, and flexible format switching. Ideal for start-ups, small-batch production and frequent bottle-size changes.
| Model | Cavities | Output (BPH) | Max Volume |
|---|---|---|---|
| SW-2000-2 | 2 | 1,000 | 2L |
| SW-1500-4 | 4 | 2,000 | 1.5L |
| SW-880-6L | 2 | 1,000 | 6L |
| SW-10L-2 | 2 | 1,200 | 10L |
| SW-5G | 1 | 100–200 | 25L (5 gal) |

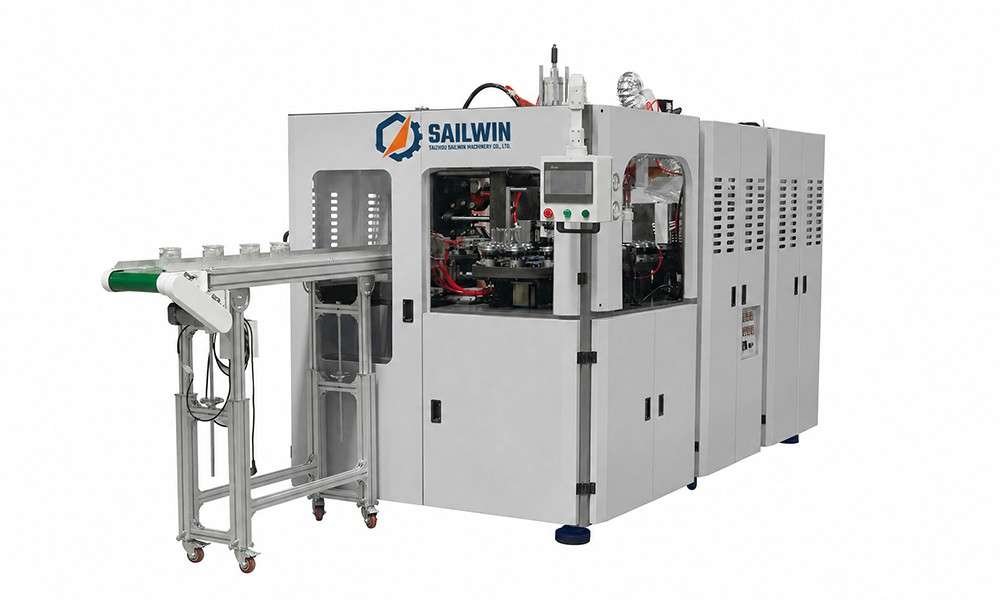

Wide Neck PET Jar Blow Molding Machine

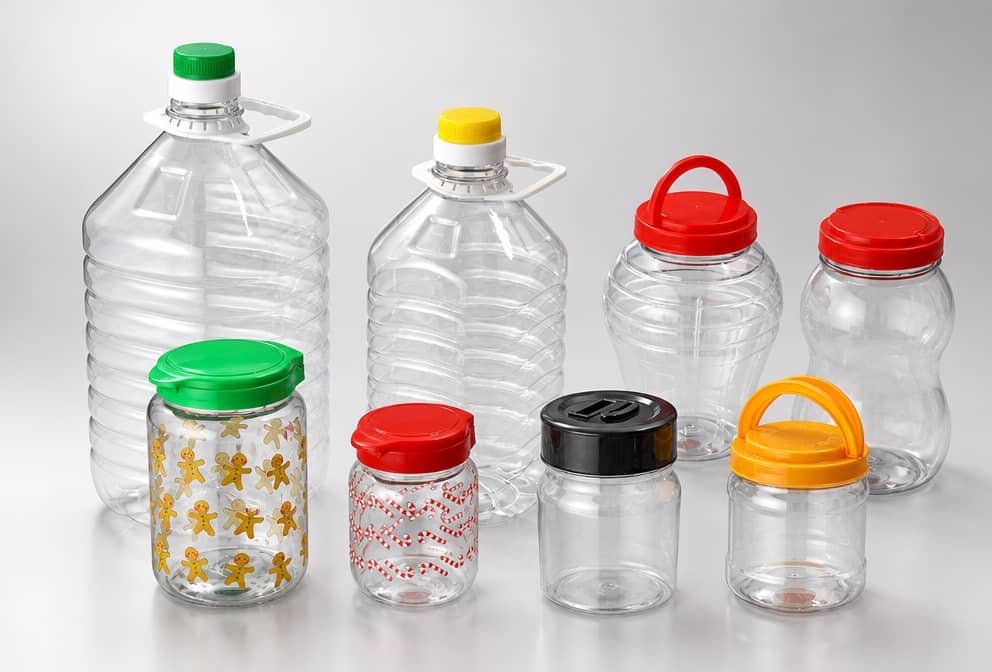

Specialized for wide-mouth jars and containers. Neck diameter up to 130mm. Covers yogurt jars, candy jars, cosmetic bottles, edible oil jars, sauce containers and honey jars.
| Model | Cavities | Output (BPH) | Max Neck Ø |
|---|---|---|---|
| SW-J1-175 | 1 | 800 | 130mm |
| SW-J2-105 | 2 | 1,400 | 100mm |
| SW-J4-105 | 4 | 3,000 | 100mm |

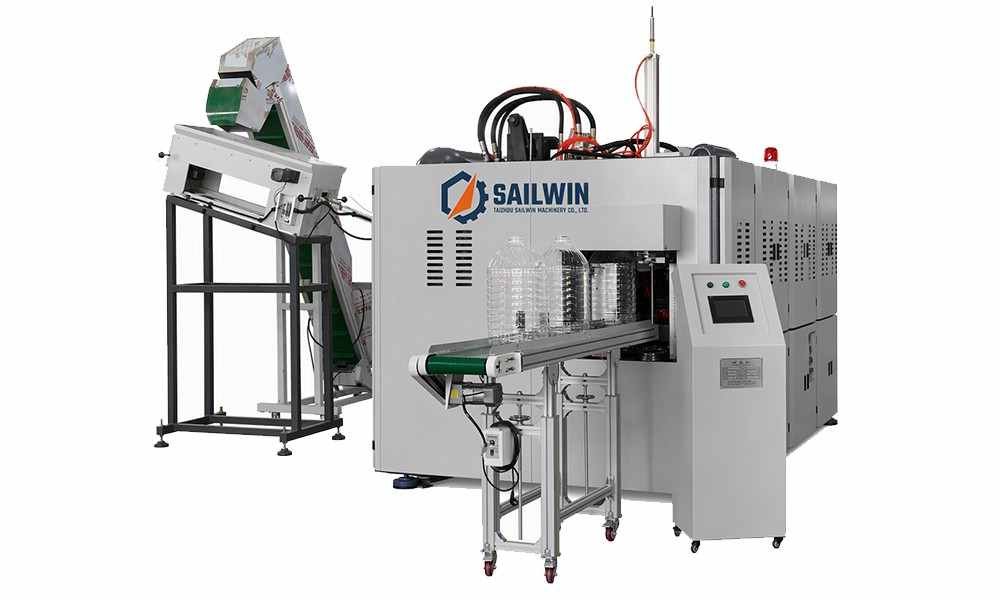

5 Gallon PET Bottle Blow Molding Machine
Dedicated large-volume PET blow molding machines for 5L, 10L and 20L (5-gallon) containers. Specially designed for drinking water dispensers, industrial liquid packaging and large-format dairy containers.
| Model | Cavities | Output (BPH) | Max Volume |
|---|---|---|---|
| SW-F5L-2 | 2 | 1,800 | 6L |
| SW-F10L-2 | 2 | 1,200 | 10L |
| SW-F20-1 | 1 | 650 | 20L (5 gal) |
MACHINE SELECTION GUIDE
Which PET Blow Molding Machine Fits Your Production?
Use this matrix to match your bottle type, daily volume target and automation requirement to the right machine model. All models are available factory-direct with CE certification and a 1-year warranty.
| Series / Model | Cavities | Output (BPH) | Bottle Volume | Automation | Best For (Application) |
|---|---|---|---|---|---|
| ⚙️ SEMI-AUTOMATIC SERIES | |||||
| SW-2000-2 | 2 | 1,000 | ≤2L | Semi-Auto | Entry-level · small water / juice bottles · budget start-up |
| SW-1500-4 | 4 | 2,000 | ≤1.5L | Semi-Auto | Start-ups · small-batch water / juice · frequent format changes |
| SW-880-6L | 2 | 1,000 | ≤6L | Semi-Auto | Mid-size water / cooking oil / dairy bottles (up to 6L) |
| SW-5G | 1 | 100–200 | ≤25L | Semi-Auto | 5-gallon water · large containers · low-volume specialty runs |
| 🤖 FULLY AUTOMATIC SERIES | |||||
| SW-F2-650 | 2 | 2,800 | ≤650ml | Full Auto | Small water · CSD · juice bottles (compact factory space) |
| SW-F4-650 | 4 | 5,500 | ≤600ml | Full Auto | Water bottle · CSD · mineral water (most popular model) |
| SW-F4-2000 | 4 | 4,500 | ≤1,800ml | Full Auto | Edible oil · hot-fill · large water · CSD (up to 1.8L) |
| SW-F6-2000 | 6 | 7,500 | ≤1,800ml | Full Auto | High-volume water / beverage bottling lines |
| ⚡ HIGH-SPEED SERIES | |||||
| SW-F6H-800 | 6 | 12,000 | ≤800ml | High Speed | CSD · mineral water · high-throughput small-format lines |
| SW-F8H-800 | 8 | 16,000 | ≤800ml | High Speed | Maximum throughput · flagship CSD / water lines · 24/7 operations |
| 🫙 WIDE NECK JAR SERIES | |||||
| SW-J2-105 / SW-J4-105 | 2–4 | 1,400–3,000 | ≤1,800ml | Full Auto | Yogurt jar · candy · cosmetic · sauce jar (neck ≤100mm) |
| SW-J1-175 | 1 | 800 | ≤5L | Full Auto | Large wide-mouth containers · edible oil jug · food jar (neck ≤130mm) |
| 🛢️ LARGE VOLUME SERIES | |||||
| SW-F5L-2 / SW-F10L-2 | 2 | 1,200–1,800 | 5L–10L | Full Auto | 5L–10L water · large dairy · industrial liquid containers |
| SW-F20-1 | 1 | 650 | ≤20L | Full Auto | 5-gallon water dispenser bottles · large-format containers |
Not sure which model? Send us your bottle drawing or sample — we'll recommend the right configuration within 24 hours.
Get a Free Machine Recommendation →MACHINE OUTPUT

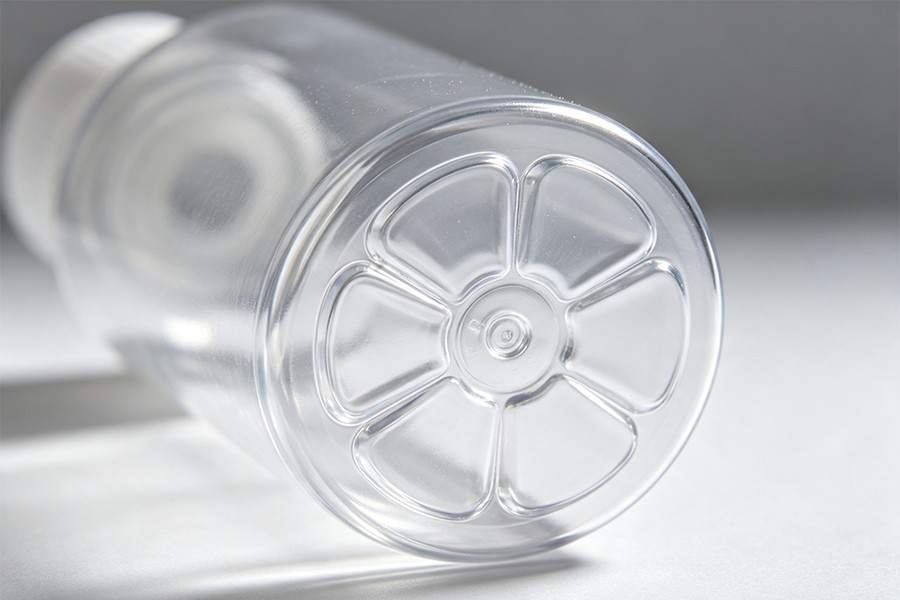

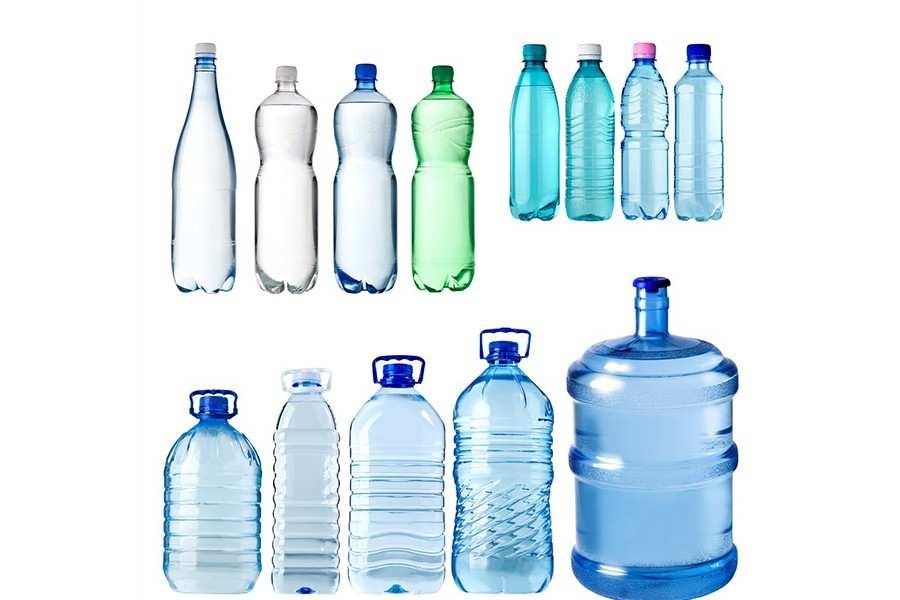

What Can Our PET Blow Molding Machines Produce?
From the raw PET preform to the finished bottle — every output below is produced by a Sailwin machine running at your factory. Send us your bottle sample and we will confirm machine compatibility within 24 hours.
From Preform to Finished Bottle in Seconds

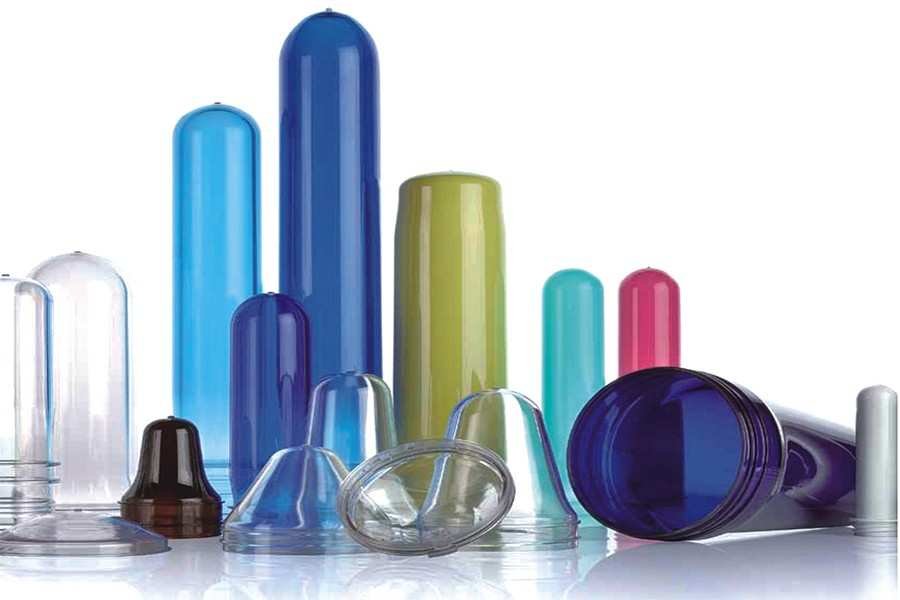

Our PET stretch blow molding machines accept all standard preform neck finishes — PCO 28mm, 30mm and 38mm — as well as custom wide-mouth preforms up to 130mm. The machine heats, stretches and blow-forms each preform in under 3 seconds, producing bottles with consistent wall thickness and high clarity.
Have a custom bottle shape or application not listed above?
Send Us Your Bottle Drawing — Free Feasibility Check →HOW IT WORKS

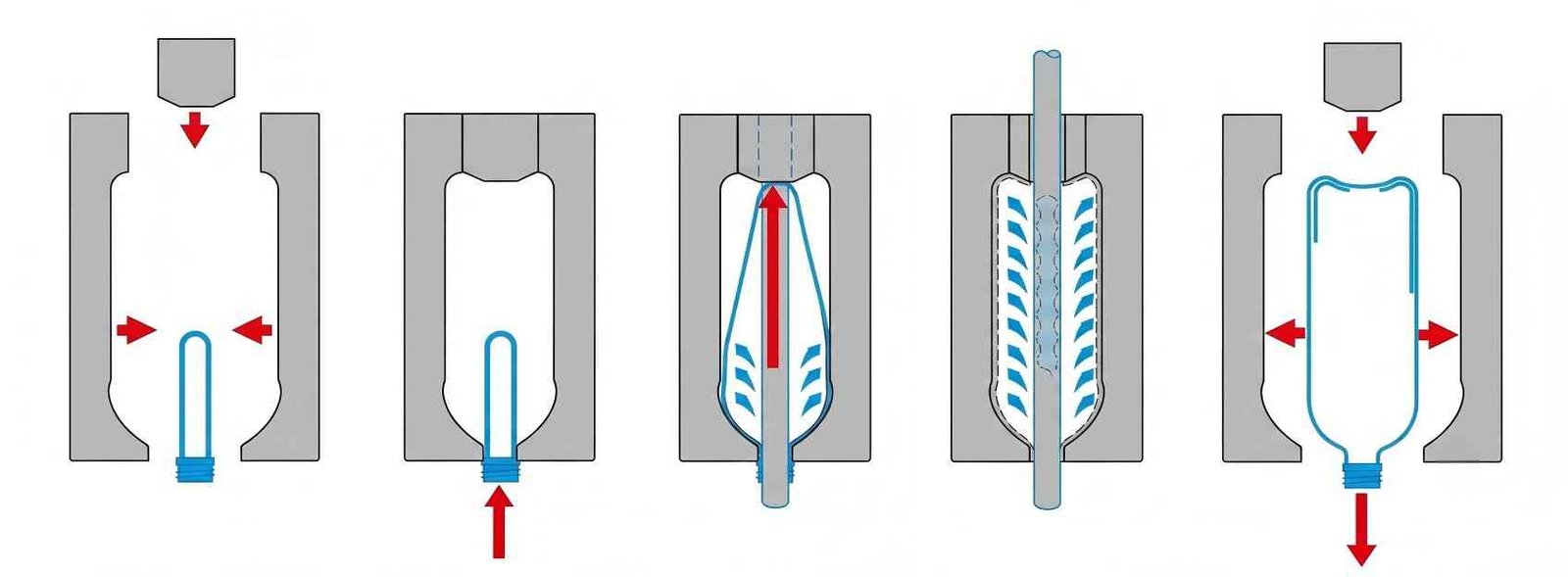

How a PET Stretch Blow Molding Machine Works
The PET stretch blow molding process (two-stage method) is what makes PET bottles strong, clear and lightweight. Understanding the process helps you select the right machine parameters for your bottle application.
Preform Loading
Automatic feeder sorts and loads PET preforms into the heating zone in the correct orientation.
Infrared Heating
PID-controlled IR lamps heat preforms to the exact temperature (90–115°C) for optimal stretch ratio. ±1°C precision.
Biaxial Stretching
A servo-driven stretch rod extends axially while low-pressure air pre-blows the preform — aligning PET molecules for strength.
High-Pressure Blowing

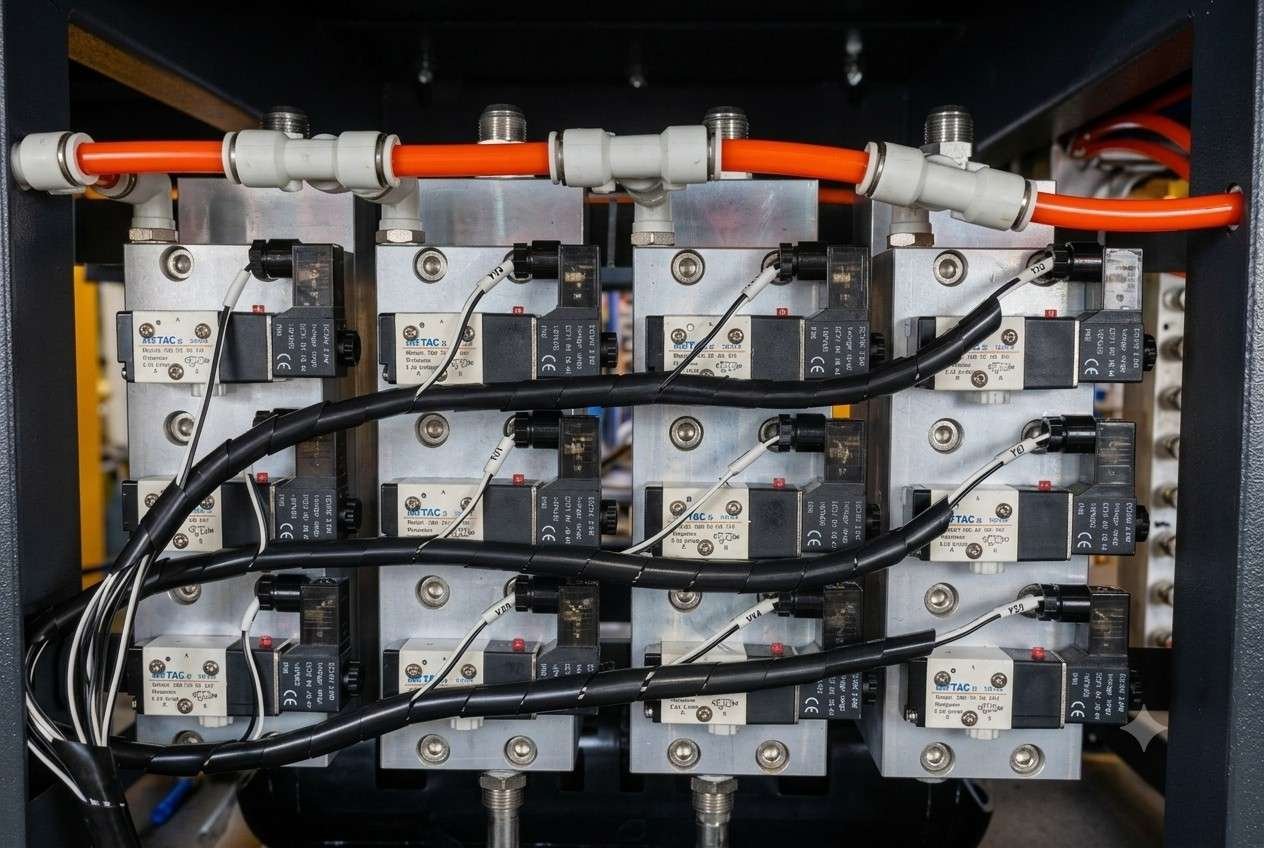

FESTO combination valve releases high-pressure air (25–40 Bar) to form the bottle against the mold cavity wall with precision.
Cooling & Ejection
The bottle is rapidly cooled in the mold, then ejected onto the output conveyor. Exhaust air is recovered by the air recovery system.
CORE COMPONENTS
International-Brand Components in Every Sailwin Machine
We do not compromise on components. Every PET blow molding machine leaves our factory with internationally recognized parts — because your production cannot afford downtime caused by substandard valves or controllers.
Also includes:
Ready to Upgrade Your Bottle Production Line?
Get custom technical proposals, machine layout drawings, and direct factory pricing within 24 hours.
Request Detailed Quote & Specifications →TECHNICAL ADVANTAGES
7 Reasons Sailwin PET Blow Molding Machines
Run 24 Hours a Day
A blow molding machine that sits idle costs money. Every design decision in a Sailwin machine is made with one question in mind: will this keep the line running or stop it?

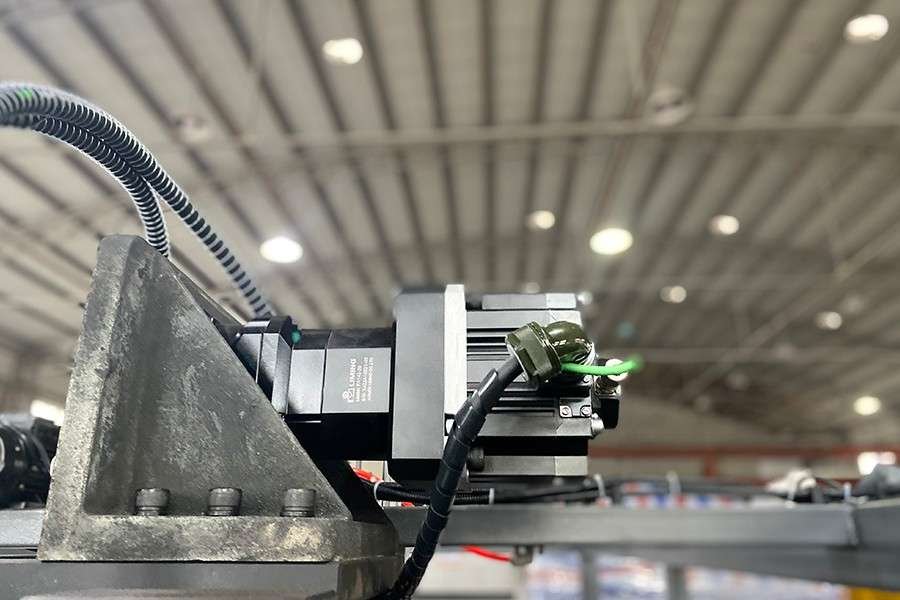

Servo Motor — Save Up to 30% Energy
Servo-driven clamping and preform transfer replaces traditional cam systems. Power consumption drops by up to 30%, and positioning repeatability improves to ±0.05mm.
PID Constant Temperature — ±1°C Heating Precision
Closed-loop PID control across all heating zones maintains ±1°C temperature accuracy, ensuring every preform reaches the optimal stretch condition — regardless of ambient temperature.

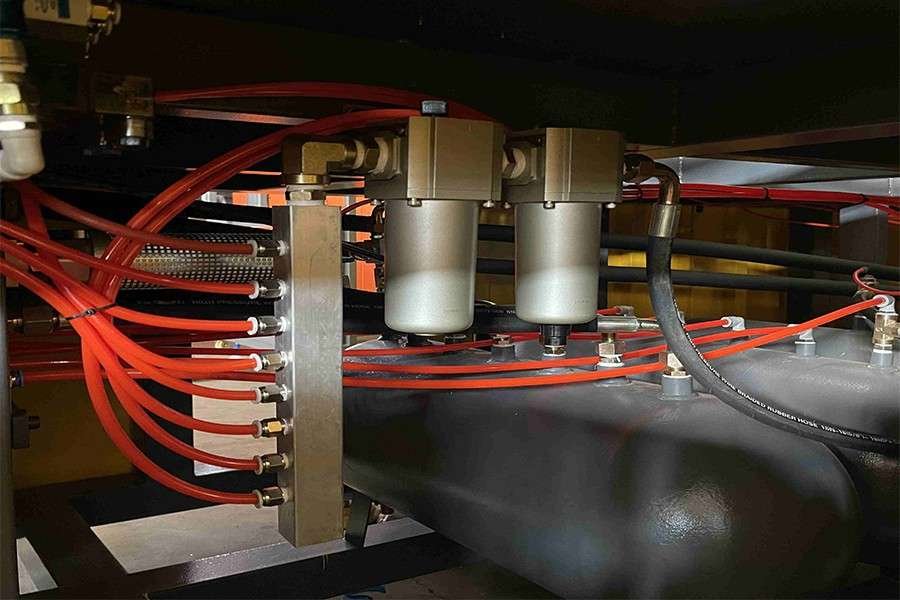

Air Recovery System — 20% Less Compressor Load
High-pressure exhaust air is captured and recycled. The compressor runs less, utility bills drop, and service intervals extend — saving approximately 20% on compressed-air operating costs.

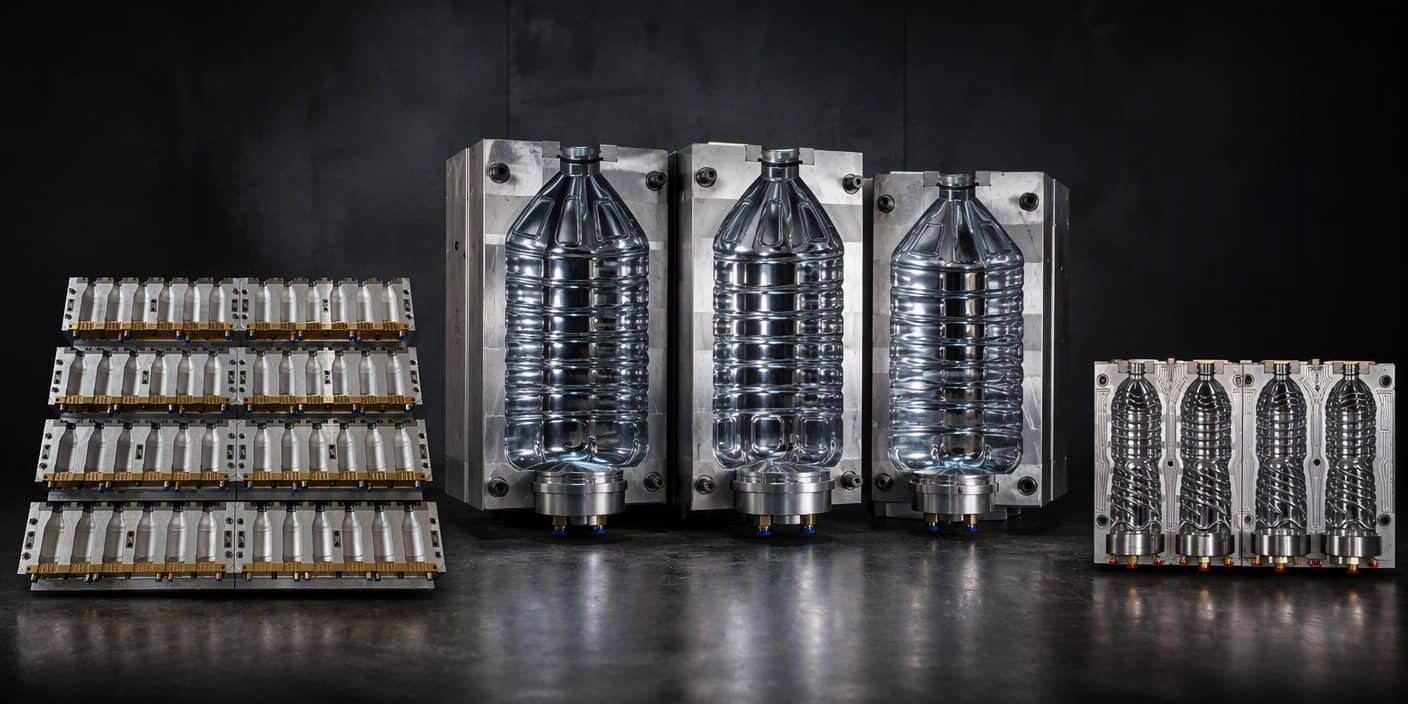

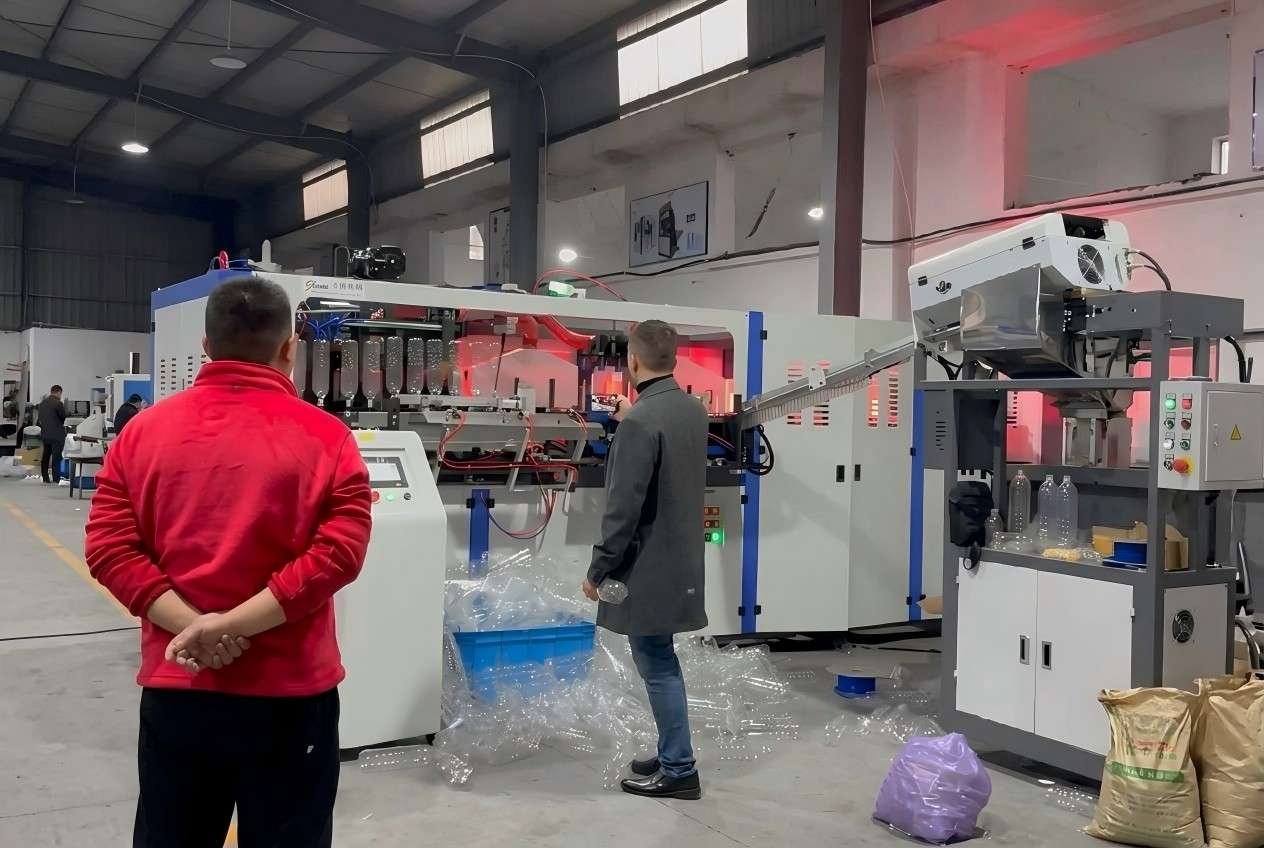

Mold Change in Under 30 Minutes
Modular mold design with quick-release clamps reduces changeover time to under 30 minutes. Switch between bottle formats without specialized tools or extended downtime.
Intelligent Self-Diagnosis — Fewer Unplanned Stops

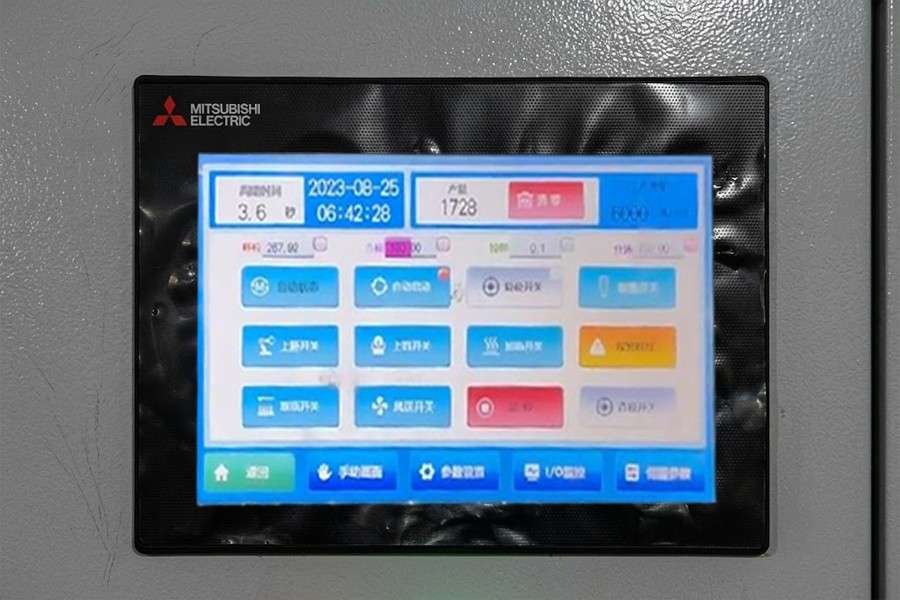

The PLC monitors over 40 parameters in real time. When a deviation is detected — temperature drift, pressure drop, preform jam — the machine alerts the operator before a fault becomes a stoppage.

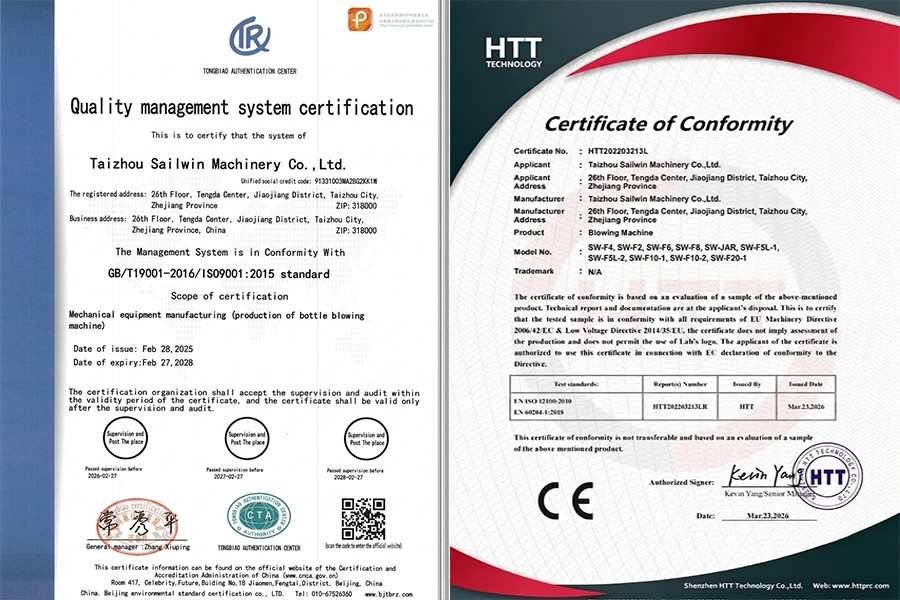

CE Certified — Ready for EU, US and Global Markets
Every Sailwin PET blow molding machine carries CE marking and is produced under ISO 9001:2015. Full documentation — declaration of conformity, operation manual, wiring diagrams — included with every shipment.
2-Year Warranty + On-Site Installation in 60+ Countries
Our engineers travel to your factory for installation, commissioning and operator training. The 2-year machine warranty covers all non-consumable components. 24/7 remote video troubleshooting is available throughout the warranty period. Spare parts for common consumables ship within 48 hours.
FULL PRODUCT RANGE
The Complete Sailwin PET Blow Molding Machine Lineup

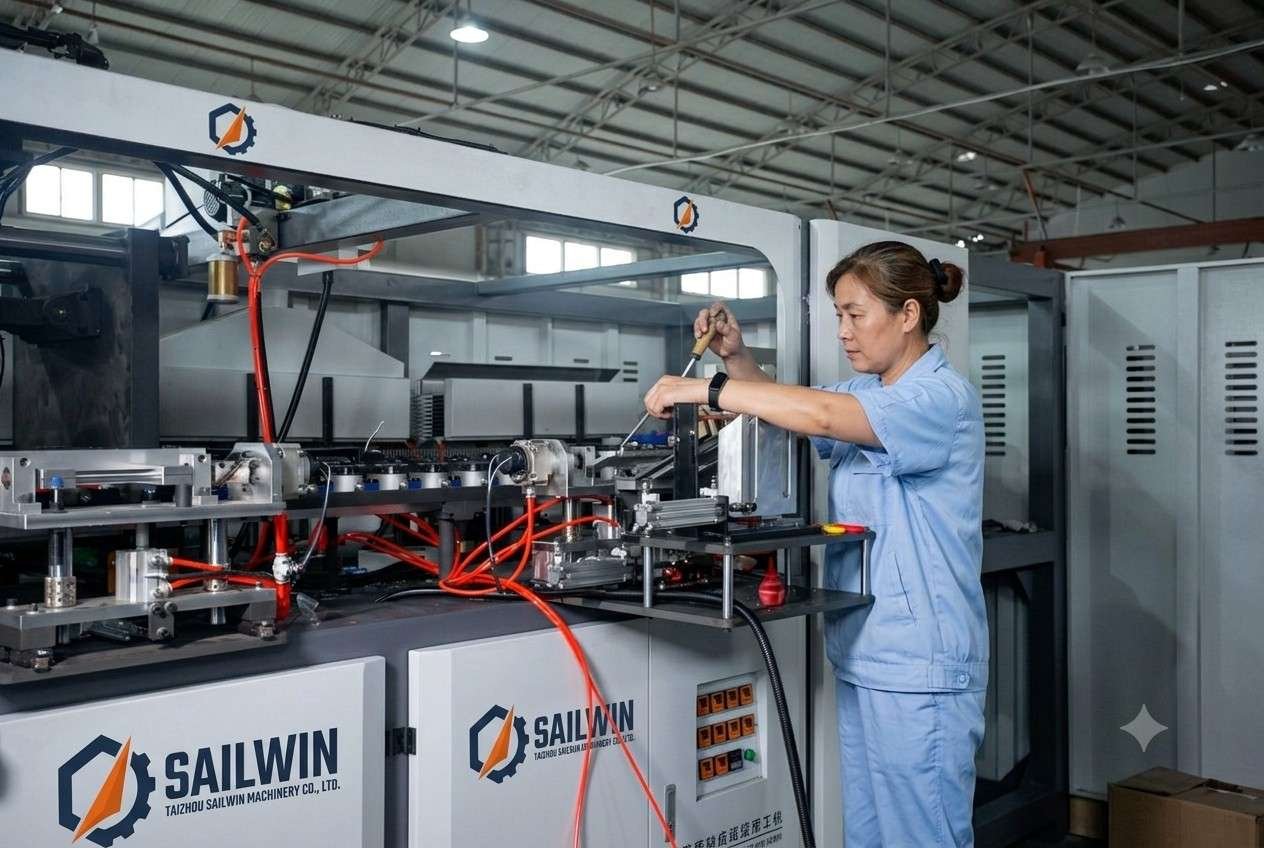

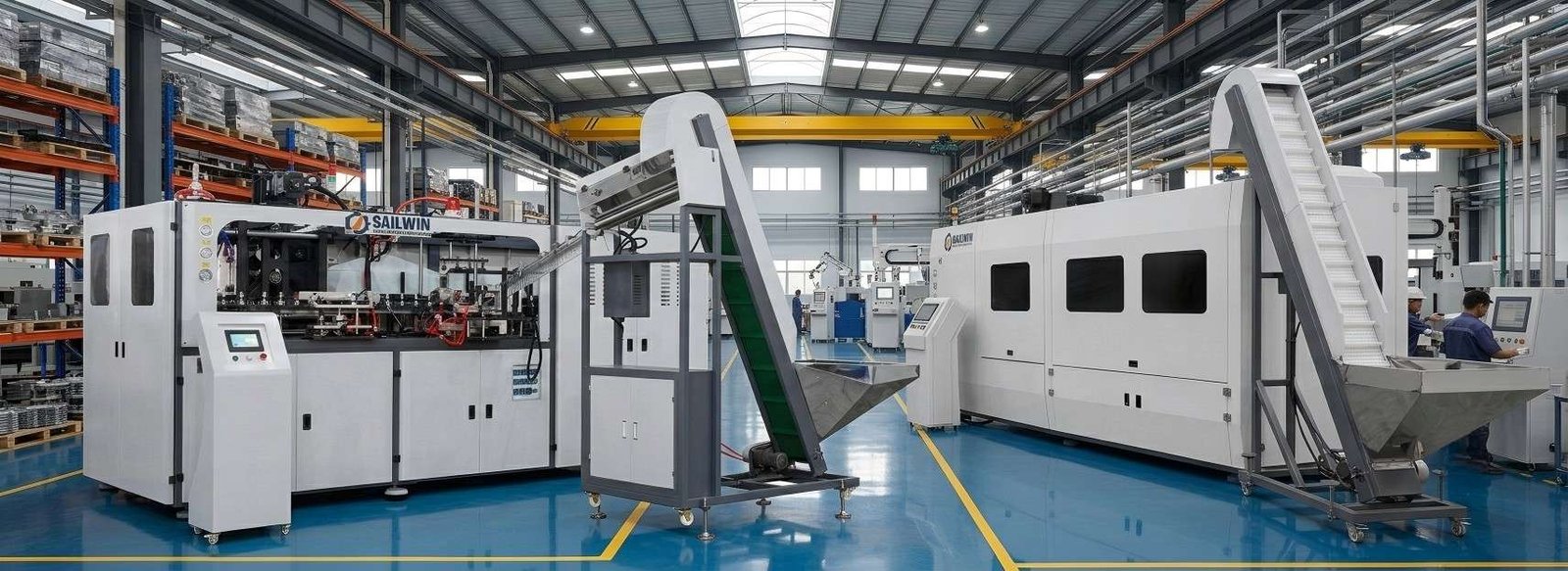

From the 2-cavity semi-automatic starter machine to the 8-cavity high-speed flagship — every Sailwin model is built in our 12,800 m² Taizhou factory and tested at full load before shipment.
FREQUENTLY ASKED QUESTIONS
PET Blow Molding Machine — Engineering FAQ
Practical answers from our engineering team to the questions machinery buyers ask most often.
Have a Question Not Listed Here?
Send us your bottle drawing or project target — our engineering team will provide a tailored technical response within 2 hours.
GET YOUR PET MACHINE FACTORY PRICE TODAY
Tell Us Your Bottle —
We'll Find the Right PET Blow Molding Machine
Share your bottle type, volume and daily output target. Our engineers will recommend the right model, cavity count and configuration — with a factory-direct price — within 24 hours. No obligation, no spam.
