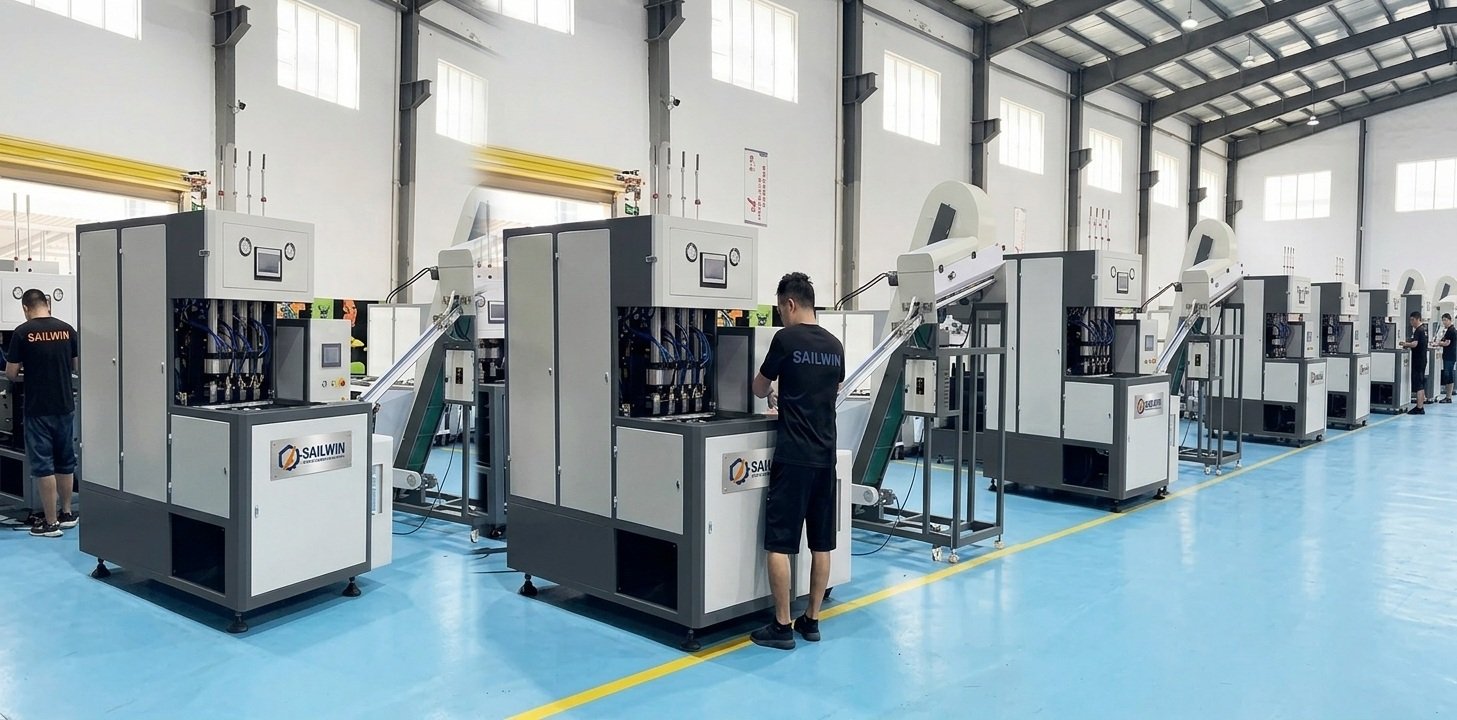

Semi Automatic PET Blow Molding Machine Operator

LOW INVESTMENT ENTRY 0.1L–20L RANGE 1-PERSON OPERATION CE + ISO CERTIFIED

Semi Automatic PET Blow Molding Machine
(0.1L–20L) — Factory Direct

Q: What is the price of a semi automatic PET blow molding machine?

The price of a semi automatic PET blow molding machine from Sailwin ranges from approximately $4,500 to $28,000 FOB depending on the bottle capacity — from our entry-level SW-SEMI-2000 (0.1L–2L) to the large SW-SEMI-20L model. As a direct factory manufacturer established in 2008, we offer competitive pricing with no middleman markup. Contact us to receive a detailed quotation based on your required bottle size, output volume and any customizations needed.

Q: How many bottles per hour can a semi automatic PET machine produce?

Output depends on the model and bottle size. Our semi automatic PET blow molding machines range from 80 BPH (SW-SEMI-20L, large jugs) to 1,000 BPH (SW-SEMI-2000, small bottles). For example, the SW-SEMI-3L produces 400–800 bottles per hour for 3L water bottles. These figures are based on single-cavity operation with one operator; actual throughput may vary with preform quality and ambient temperature conditions.

Q: Can one person operate your semi automatic PET blow molding machine alone?

Yes — our semi automatic PET blow molding machine is specifically designed for 1-person operation. The operator manually loads preforms into the heating zone; the machine then handles heating, stretching, and high-pressure blow-forming automatically. Furthermore, the 5-inch PID touchscreen makes startup and parameter adjustment simple, allowing any worker with 30 minutes of training to run the machine independently on a full production shift.

Q: What is the minimum bottle size for your semi-automatic machine (0.1L)?

Yes, our SW-SEMI-2000 model supports bottles as small as 100ml (0.1L) — suitable for cosmetic toners, sample vials, medicine bottles and miniature condiment containers. The minimum neck diameter supported is 28mm. For very small-volume bottles, we recommend confirming preform specifications with our engineering team to ensure compatibility with the heating zone configuration.

Q: How long does mold change take on a semi automatic PET blow molding machine?

Mold change on our semi automatic PET blow molding machines takes under 30 minutes with a standard wrench — no crane or specialist technician required. The process involves loosening 4 bolts, sliding out the old mold, installing the new mold, and loading a saved bottle recipe on the touchscreen. This quick-change design makes our machines ideal for factories producing multiple bottle SKUs or running short production runs with frequent size changes.

Q: What is the difference between a cheap semi automatic PET machine and a fully automatic?

A cheap semi automatic PET blow molding machine requires one operator to manually load preforms; output ranges from 80 to 2,000 BPH. A fully automatic machine uses an automatic preform loader and conveyor system, achieving 2,800 to 16,000 BPH with no operator intervention. Semi-automatic models have lower initial investment, smaller footprint, and can produce bottles up to 20L — while fully automatic machines are best for high-volume mass production of standard water or beverage bottles below 2L.

Q: Can your manual PET bottle blowing machine produce 20L water jugs?

Yes — our SW-SEMI-20L model is specifically designed to blow 10L and 20L PET/PC water dispensing jugs, with a maximum neck diameter of 90mm. This is a unique capability of the manual PET bottle blowing machine that fully automatic machines cannot match, as automatic models are limited to standard bottle sizes below 2L. The SW-SEMI-20L produces 80–200 jugs per hour and is popular with regional bottled water companies and office water cooler suppliers.

Q: What certifications does your semi automatic PET blow molding machine carry?

All Sailwin semi automatic PET blow molding machines carry CE certification (EU Machinery Directive 2006/42/EC) and are manufactured under ISO 9001:2015 quality management system. CE certification confirms compliance with European electrical safety and mechanical safety standards. In addition, we provide full technical documentation including wiring diagrams, operation manual, spare parts list and a one-year factory warranty on every machine.

The ideal low-cost manual PET blow molding machine for startups, small bottle factories, and product sampling — minimal footprint, zero complex automation required.

Models ↓ vs Fully-Auto ↓ Startup ROI ↓ Applications ↓ FAQ ↓

WhatsApp Us

0.1–20L

Bottle Range

500–2,000

BPH Output

1 Person

To Operate

<30 min

Mold Change

FULL MODEL RANGE

Semi Automatic PET Blow Molding Machine — Full Model Range

7 models from 1,000 BPH compact units to 100–200 BPH large-volume jug machines — select by cavity count, bottle volume and output requirement.

STANDARD SERIES · 2cav 2L / 2cav 5L / 1cav 10L

View SW-2000-2 Full Specs →

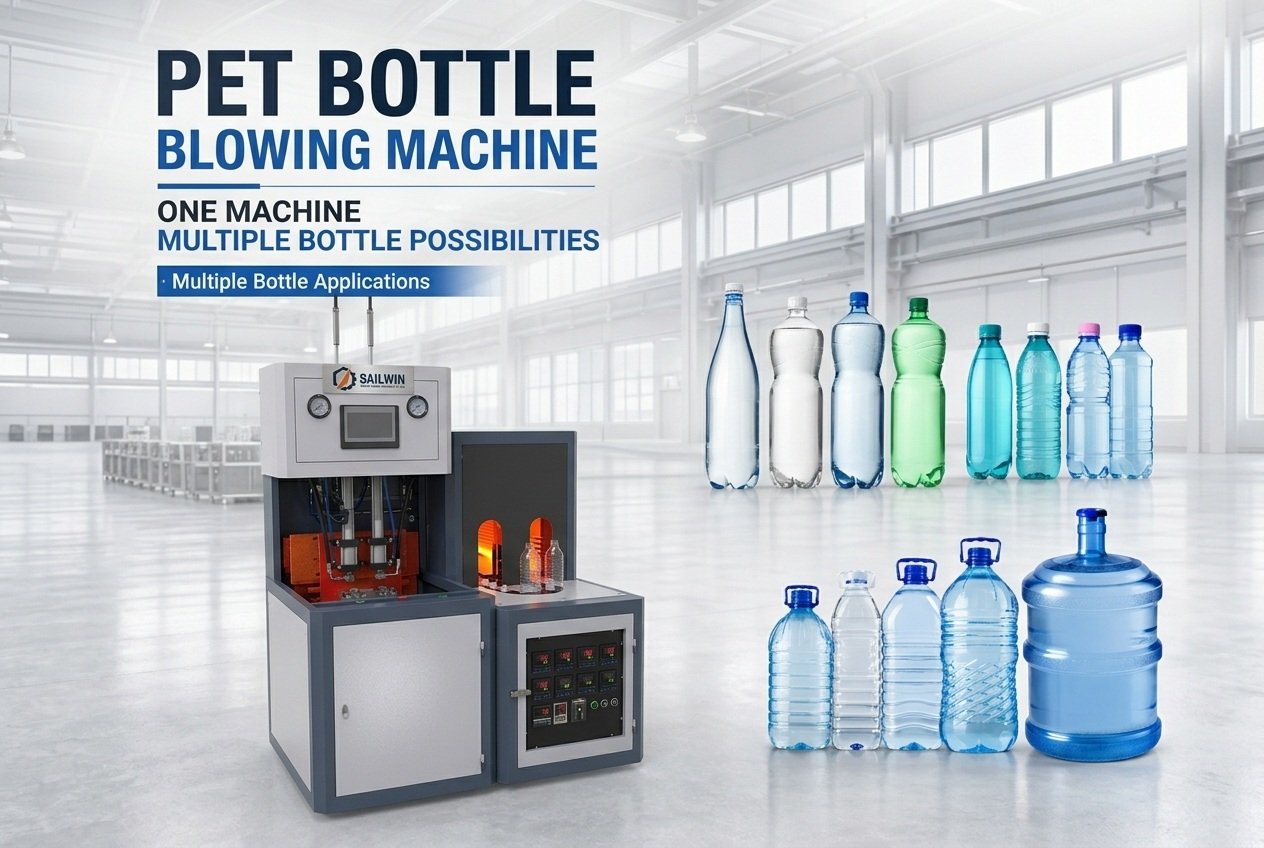

Standard Series Semi Automatic PET Blow Molding Machine

Parameter	Unit	SW-2000-2 2cav 2L / 1cav 3L	SW-5000-1 2cav 2L / 1cav 5L	SW-5000-2 2cav 5L / 1cav 10L
Clamping Force	T	10	15	20
Clamping Stroke	mm	220	240	280
Max. Stretching Stroke	mm	220	300	350
Number of Cavities	cavity	2	2	1
Theoretical Output	BPH	1,000	1,200	400
Max. Mould Thickness	mm	170	200	250
Space Between Tie Bars	mm	260×350	260×350	280×500
Voltage Standard	—	380V/50Hz	380V/50Hz	380V/50Hz
Number of Heating Zones	sections	4	4	4
Total Power (Full Load)	kW	13	13	17
Max. Container Volume	L	2cav 2L / 1cav 3L	2cav 2L / 1cav 5L	2cav 5L / 1cav 10L
Neck Diameter Range	mm	15–38	15–38	30–60
Max. Container Diameter	mm	35–100	35–120	50–210
Max. Container Height	mm	260	300	400
Low Pressure Air	Bar	8–10	8–10	8–10
High Pressure Air (Blowing)	Bar	25–30	25–30	25–30
Air Flow Rate	m³/min	1.2/30	1.6/30	1.6/30
Blow Molding Machine (L×W×H)	cm	160×65×160	180×70×175	160×76×185
Oven (L×W×H)	cm	180×60×140	180×60×155	180×60×140
Net Weight	kg	900	1,000	1,300

LARGE VOLUME SERIES · Up to 20L / 25L

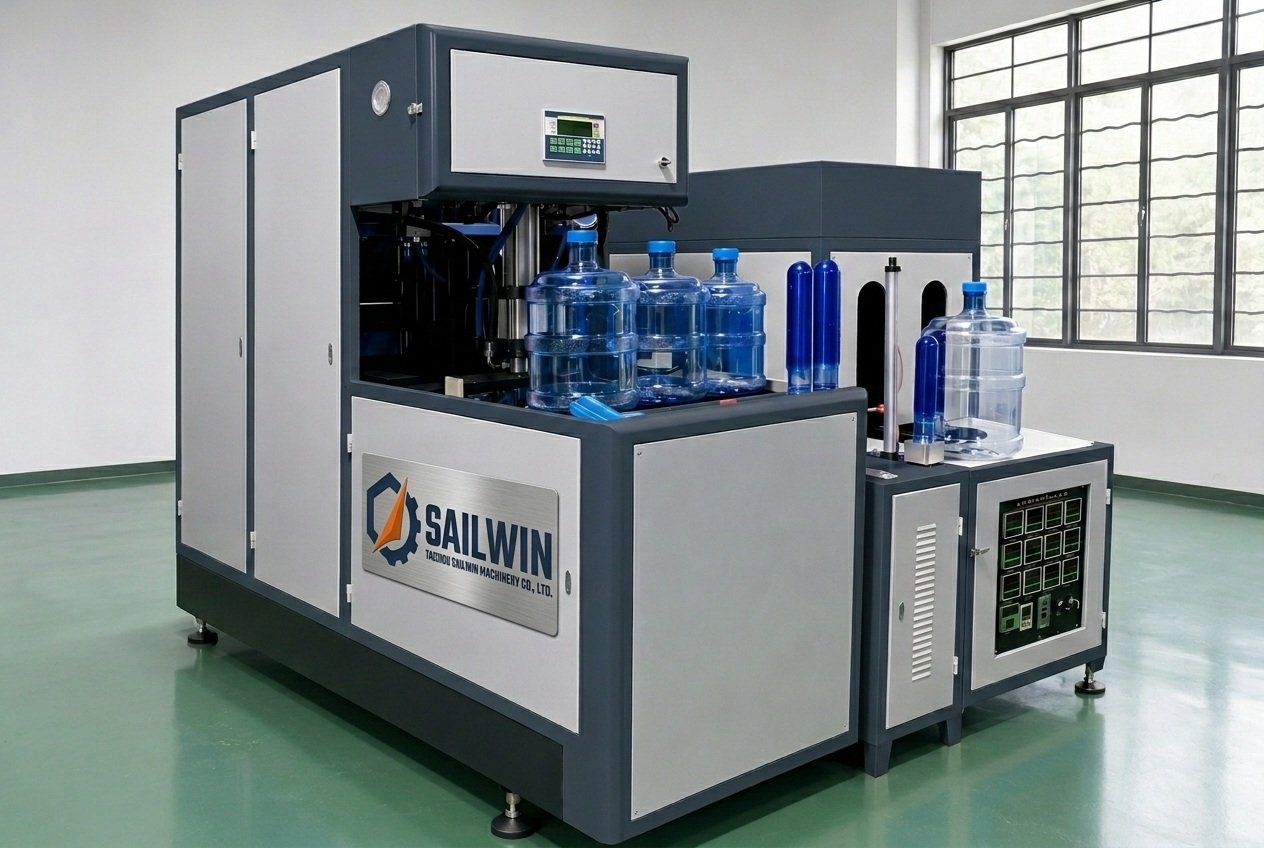

Large Volume Series Semi Automatic PET Blow Molding Machine

Parameter	Unit	SW-10L-2 2cav 10L / 1cav 20L	SW-5G 1cav 25L (5-Gallon)
Clamping Force	T	40	100
Clamping Stroke	mm	330	350
Max. Stretching Stroke	mm	400	450
Number of Cavities	cavity	2	1
Theoretical Output	BPH	400–500	100–200
Max. Mould Thickness	mm	400	300
Space Between Tie Bars	mm	400×500	440×500
Voltage Standard	—	380V/50Hz	380V/50Hz
Number of Heating Zones	sections	4	4
Total Power (Full Load)	kW	26	35
Max. Container Volume	L	2cav 10L / 1cav 20L	1cav 25L
Neck Diameter Range	mm	45–90	45–85
Max. Container Diameter	mm	100–300	280
Max. Container Height	mm	400	400
Low Pressure Air	Bar	8–10	8–10
High Pressure Air (Blowing)	Bar	25–30	25–30
Air Flow Rate	m³/min	2.0/30	2.0/30
Blow Molding Machine (L×W×H)	cm	160×80×200	230×82×188
Oven (L×W×H)	cm	225×60×140	225×67×155
Net Weight	kg	1,600	1,400

HIGH OUTPUT SERIES · 4cav 1.5L / 2cav 6L

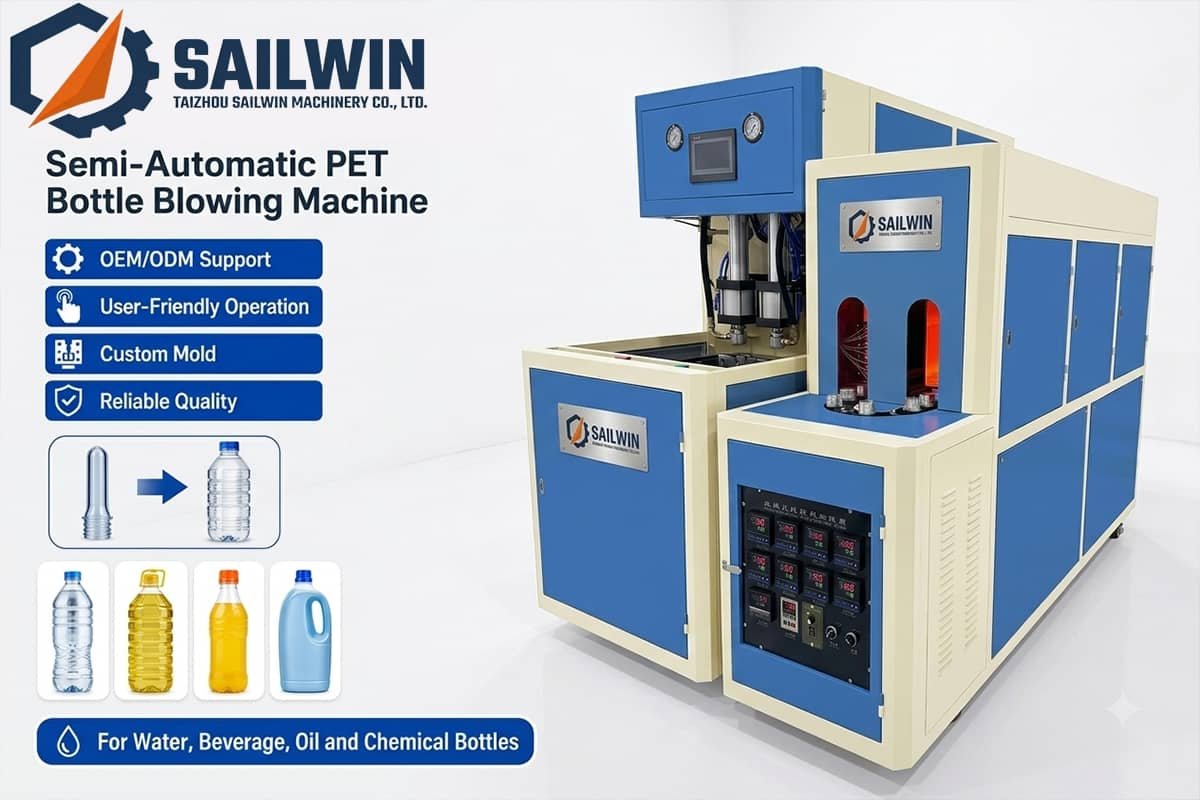

High Output Series Semi Automatic PET Blow Molding Machine

Parameter	Unit	SW-1500-4 4cav 1.5L — Semi-Auto 4-Out	SW-880-6L 2cav 2L / 1cav 6L
Clamping Force	T	30	10
Clamping Stroke	mm	220	230
Max. Stretching Stroke	mm	300	300
Number of Cavities	cavity	4	2
Theoretical Output	BPH	2,000	1,000
Max. Mould Thickness	mm	180	200
Space Between Tie Bars	mm	450×400	280×500
Voltage Standard	—	380V/50Hz	380V/50Hz
Number of Heating Zones	sections	2	2
Total Power (Full Load)	kW	20	13
Max. Container Volume	L	4cav 1.5L	2cav 2L / 1cav 6L
Neck Diameter Range	mm	15–38	15–60
Max. Container Diameter	mm	40–100	35–150
Max. Container Height	mm	300	300
Low Pressure Air	Bar	8–10	8–10
High Pressure Air (Blowing)	Bar	25–30	25–30
Air Flow Rate	m³/min	1.6/30	1.2/30
Blow Molding Machine (L×W×H)	cm	160×80×185	155×73×180
Oven (L×W×H)	cm	160×62×140	140×60×140
Feeder (SW-1500-4)	cm	180×140×240	—
Net Weight	kg	1,500	900

SELECTION GUIDE

Semi-Automatic vs Fully Automatic PET Blow Molding Machine
— Which Is Right for You?

A cheap semi automatic PET blow molding machine doesn't mean lower quality — it means smarter capital allocation for your production scale.

Comparison Factor	✔ Semi-Automatic Manual PET Blow Molding	Fully Automatic High-Speed PET Blowing
Initial Investment	Low Ideal for limited startup capital	High Suited for established factories
Output Capacity	80–2,000 BPH Flexible for small runs	2,800–16,000 BPH Mass production volumes
Labor Requirement	1 operator Manual preform loading	Minimal Auto loader + conveyor line
Bottle Size Range	0.1L–20L Including large 10–20L jugs	100ml–2L Standard water/CSD range
Footprint	Small Fits in compact workshops	Large Needs dedicated production line
ROI Payback Period	Faster Lower capex threshold	Longer Depends on throughput volume

CHOOSE SEMI-AUTO

Daily output < 50,000 bottles

Startup or small-scale factory
Produce 0.1L–20L range
Limited floor space or budget
Multiple bottle SKUs / frequent mold changes
Sampling or test production

UPGRADE TO FULL-AUTO

Daily output > 100,000 bottles

Established bottle manufacturer
Single SKU mass production
24/7 continuous operation needed

View Fully Automatic Series →

WHY SAILWIN

5 Reasons Factories Choose Sailwin
Semi Automatic PET Blow Molding Machine

From entry-level startups to regional bottle manufacturers — here's why our semi automatic PET blow molding machine is the trusted low-cost choice.

Widest Bottle Range: 0.1L to 25L

From 100ml cosmetic vials to 25L 5-gallon water dispensing jugs — our 7-model semi automatic PET blow molding machine lineup covers a bottle range no fully automatic machine can match. One factory, one supplier, the full size spectrum.

SW-2000-2 → 2L SW-5G → 25L 7 Models

Low Investment, Faster ROI

Entry price starts significantly lower than fully automatic lines. Lower capex means shorter payback period — ideal for startups validating a new bottle market or small factories expanding SKU range without committing to full automation.

Factory Direct No Middleman Fast Payback

1-Person Operation, <30 min Mold Change

Any worker with 30 minutes of training can run a full production shift alone. The PID touchscreen stores 50 bottle recipes — switching between SKUs takes under 2 minutes. No crane, no specialist technician required for mold changes.

1 Operator <30 min Changeover 50 Recipes

Compact Footprint — Fits Any Workshop

The SW-2000-2 blow molding machine measures just 160×65×160cm — small enough for a single-room workshop or factory corner. No dedicated production line infrastructure needed. Relocate or expand without major facility upgrades.

From 160×65cm No Line Setup

CE Certified · 16-Year Factory · 1-Year Warranty

Every semi automatic PET blow molding machine ships with CE certification and full technical documentation. Sailwin has manufactured blow molding equipment since 2008 — 12,800m² factory, direct export to 60+ countries. One-year warranty with remote technical support included.

CE + ISO 9001 Est. 2008 60+ Countries

Reply within 24 hours · CE certified · Factory direct from Taizhou, China

EASE OF OPERATION

Easy 1-Person Operation & Under 30-Minute Mold Change

Many startups fear complex machinery — skilled technicians are hard to hire and retain. Our semi automatic PET blow molding machine is engineered so that any worker with 30 minutes of training can operate it alone.

How to Operate a Manual PET Blow Molding Machine — 3 Steps

Load the PET Preform

Place the PET preform onto the mandrel by hand. The infrared oven heats it automatically to the set temperature. No conveyor or auto-loader required.

Press Start — Machine Does the Rest

The mold closes, the stretch rod extends, and high-pressure air (2.5–4.0 MPa) expands the preform to the bottle shape. The full blow cycle completes in 3–8 seconds per bottle.

Remove the Finished Bottle

Mold opens and the operator removes the finished PET bottle. Ready for the next preform immediately. No cooling delay, no trimming required.

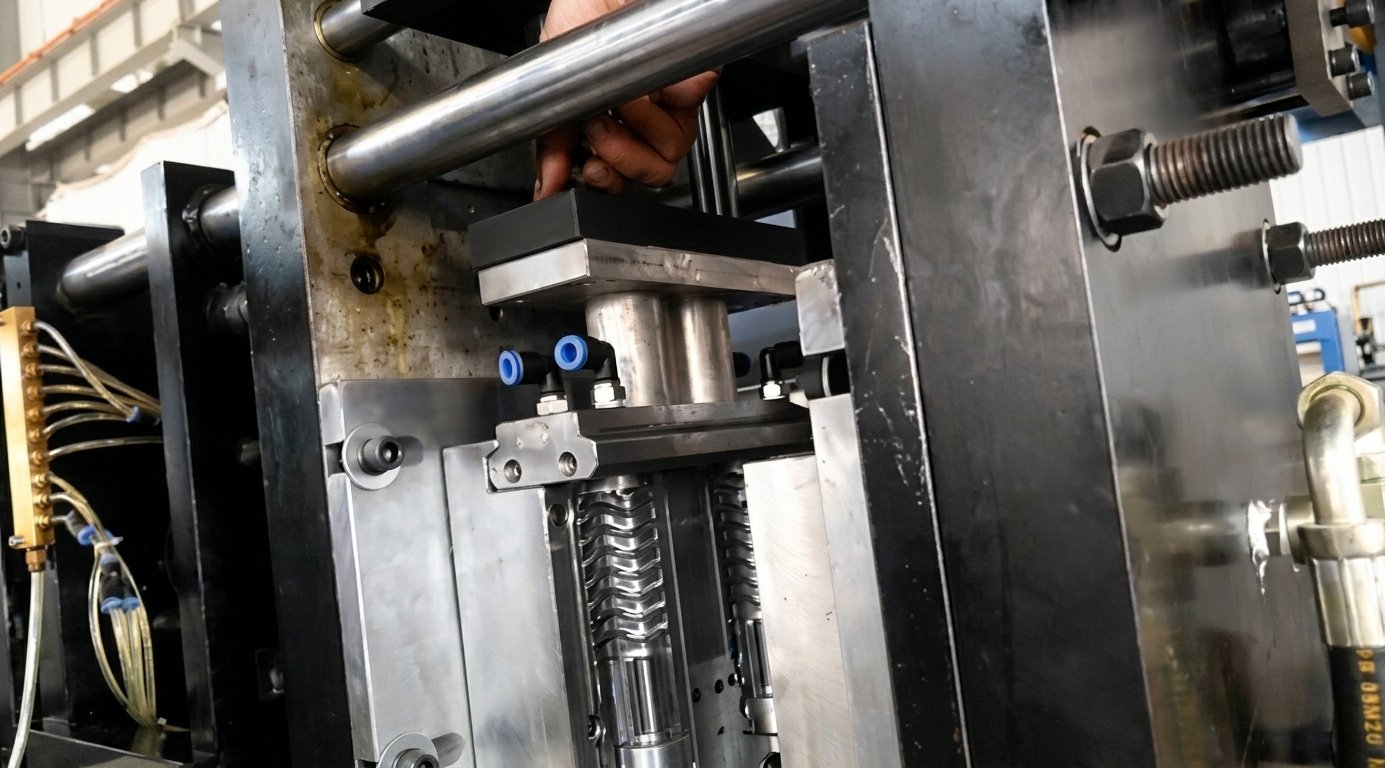

<30-Minute Mold Changeover

semi automatic PET blow molding machine mold change 30 minutes easy operation Sailwin

① Loosen

Loosen 4 bolts on mold seat — standard wrench, no crane needed

② Slide Out

Pull out the old mold halves along the guide rail

③ Install New

Slide in new mold, tighten bolts to specified torque

④ Load Recipe

Select saved bottle recipe on touchscreen — 2-minute parameter switch

PID Temperature Control Touchscreen

The 5-inch color touchscreen stores up to 50 bottle recipes. Switching between bottle sizes takes under 2 minutes — simply select the saved program and the machine resets all heating zones and pressure parameters automatically.

Furthermore, real-time PID feedback keeps heating zone accuracy within ±1°C — ensuring consistent wall thickness even when ambient temperature fluctuates.

Operator Required

Full production shift

<30

Minutes Mold Change

No crane, no specialist

Saved Recipes

5-inch touchscreen

±1°C

Temp. Accuracy

PID closed-loop control

Ready to Start Your Bottle Production Line?

Contact our engineering team today for pricing, customized mold solutions, and a detailed machine quotation tailored to your business.

APPLICATIONS

Semi Automatic PET Blow Molding Machine — Ideal For

One cheap semi automatic PET blow molding machine covers a wide range of bottle types — from 100ml cosmetic samples to 20L pure water jugs.

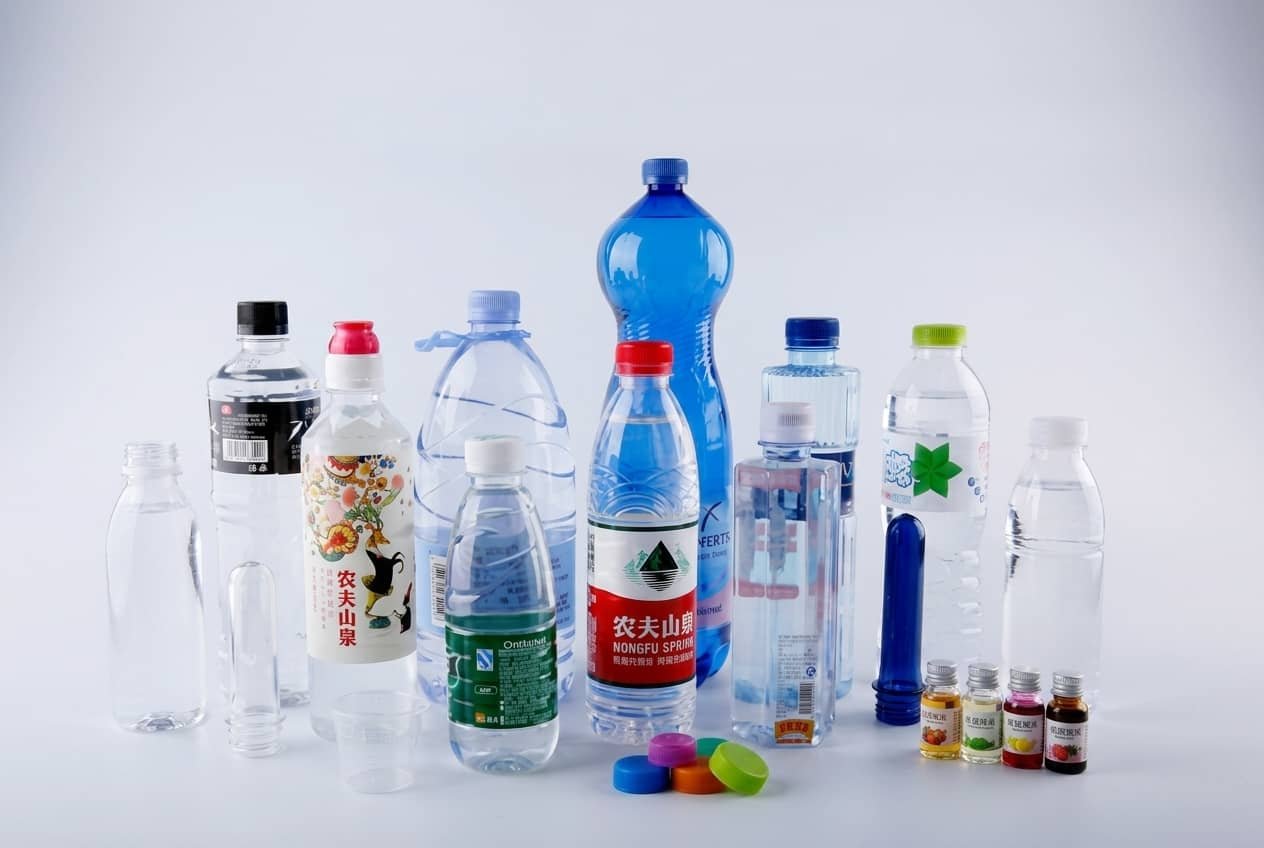

semi automatic PET blow molding machine small cosmetic bottle 100ml 500ml daily chemical Sailwin

DAILY CHEMICAL / FOOD

100ml–1.5L Cosmetic & Food Bottles

Shampoo, lotion, sauce, edible oil and mineral water small bottles. Ideal for daily chemical OEM production and food packaging startups.

100ml–1.5L 28mm Neck 500–1,000 BPH

Recommended: SW-SEMI-2000 / SW-SEMI-3L

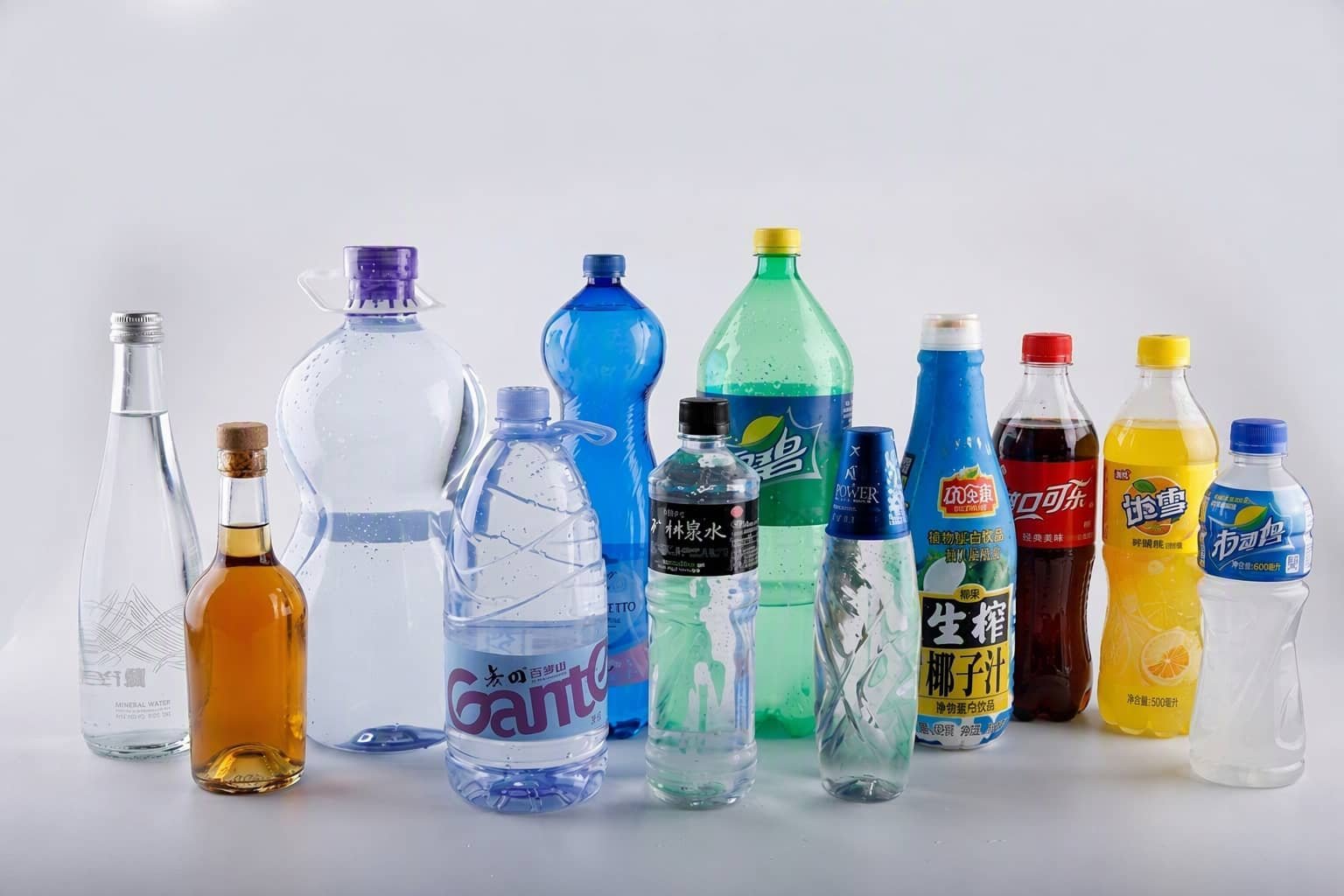

semi automatic PET blow molding machine 3L 5L water bottle production Sailwin

BOTTLED WATER / BEVERAGE

3L–5L Water & Beverage Bottles

Ideal for regional bottled water brands and large-volume juice packaging. In addition, the low cost PET blow molding machine enables small factories to produce 3–5L bottles without high capital investment.

3L–5L 300–600 BPH 55mm Neck

Recommended: SW-SEMI-3L / SW-SEMI-5L

semi automatic PET blow molding machine wide neck jar cosmetic sample bottle Sailwin

COSMETICS / SAMPLING

Wide-Neck Jars & Cosmetic Sample Bottles

Yogurt jars, honey jars, skincare cream bottles and product sampling containers. Specifically, the semi automatic PET blow molding machine supports neck diameters up to 75mm for wide-mouth designs.

Wide Neck ≤75mm 0.5L–6L Jar Custom Mold OK

Recommended: SW-SEMI-5L / SW-SEMI-6L

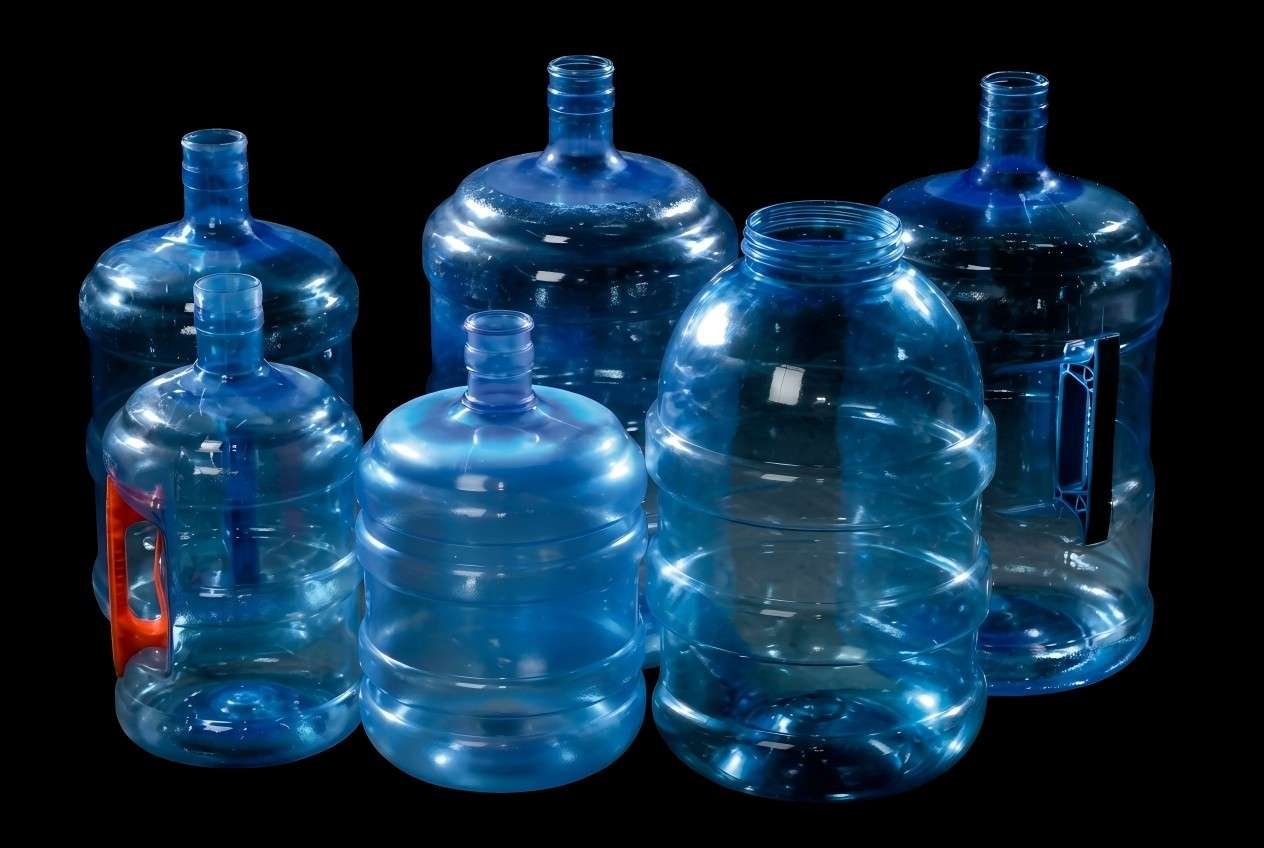

semi automatic PET blow molding machine 20L pure water jug large volume Sailwin

LARGE VOLUME / WATER JUG

10L–20L Water Dispensing Jugs

Pure water dispensing barrels, PC/PET refillable jugs and 20L office water cooler containers. Fully automatic machines cannot produce 20L bottles — this is an exclusive advantage of the manual PET bottle blowing machine.

10L–20L 80–200 BPH Neck ≤90mm

Recommended: SW-SEMI-10L / SW-SEMI-20L

Not sure which model matches your bottle size and daily production requirement?

FAQ

Semi Automatic PET Blow Molding Machine — Frequently Asked Questions

Common questions from startup factories and bottle manufacturers evaluating our semi automatic PET blow molding machine range.

▸ What is the price of a semi automatic PET blow molding machine? +

The price of a semi automatic PET blow molding machine from Sailwin ranges from approximately $4,500 to $28,000 FOB depending on bottle capacity — from the SW-SEMI-2000 (0.1L–2L) to the large SW-SEMI-20L model. As a direct factory manufacturer since 2008, we offer competitive pricing with no middleman markup.

Contact us to receive a detailed quotation based on your bottle size, daily output target and any customizations — mold included quotes available.

▸ How many bottles per hour can a semi automatic PET machine produce? +

Output capacity of our semi automatic PET blow molding machines ranges from 80 BPH (SW-SEMI-20L for 20L jugs) to 1,000 BPH (SW-SEMI-2000 for small 100ml–2L bottles). Mid-range models like the SW-SEMI-3L deliver 400–800 BPH for 3L water bottles.

Actual throughput depends on preform weight, bottle shape complexity and ambient temperature. We provide production efficiency reports during pre-sales to help you plan your investment accurately.

▸ Can one person operate your semi automatic PET blow molding machine alone? +

Yes — our semi automatic PET blow molding machine is designed for single-operator production. The operator manually loads preforms; the machine handles heating, stretching and blow-forming automatically. The 5-inch PID touchscreen makes startup and parameter adjustment simple.

Furthermore, any worker with 30 minutes of training can run the machine alone on a full production shift — no experienced technician needed. This keeps your labor cost low as your bottle business scales up.

▸ What is the minimum bottle size for your semi-automatic machine (0.1L)? +

The SW-SEMI-2000 supports bottles as small as 100ml (0.1L) with a 28mm neck — suitable for cosmetic toners, sample vials, medicine bottles and mini condiment containers.

For small-volume bottles, we recommend confirming your preform wall thickness and body diameter with our engineering team before ordering a mold, to ensure optimal heating zone performance and consistent bottle clarity.

▸ How long does mold change take on a semi automatic PET blow molding machine? +

Mold change takes under 30 minutes with a standard wrench — no crane or specialist required. The 4-step process: loosen 4 bolts → slide out old mold → install new mold → load saved recipe on touchscreen. This design makes our semi automatic PET blow molding machine ideal for factories producing multiple bottle SKUs or running short production runs.

Specifically, the touchscreen stores up to 50 bottle recipes — switching programs takes 2 minutes. As a result, a single machine can cover 5–10 different bottle sizes for sampling or small-batch production.

▸ What is the difference between a cheap semi automatic PET machine and a fully automatic? +

A cheap semi automatic PET blow molding machine requires one operator to load preforms manually, with output of 80–2,000 BPH. Initial investment is significantly lower, footprint is smaller, and it can produce large-volume bottles up to 20L that fully automatic machines cannot.

A fully automatic machine uses preform auto-loaders and achieves 2,800–16,000 BPH — ideal for mass production of standard water or CSD bottles below 2L. In contrast, semi-automatic models provide faster ROI for startups and small factories with daily output below 50,000 bottles.

→ Compare with Fully Automatic Series

▸ Can your manual PET bottle blowing machine produce 20L water jugs? +

Yes — the SW-SEMI-20L is specifically designed for 10L and 20L PET/PC water dispensing jugs, with neck diameters up to 90mm. This is a unique advantage of the manual PET bottle blowing machine that fully automatic machines cannot replicate, as they are limited to standard bottles below 2L.

The SW-SEMI-20L produces 80–200 jugs per hour and is particularly popular with regional bottled water companies and office water cooler suppliers in Southeast Asia, Africa and the Middle East. Mold design support for 20L jug is included.

▸ What certifications does your semi automatic PET blow molding machine carry? +

All Sailwin semi automatic PET blow molding machines carry CE certification (EU Machinery Directive 2006/42/EC) and are manufactured under ISO 9001:2015 quality management system. CE certification confirms compliance with European electrical and mechanical safety standards.

In addition, every machine ships with complete technical documentation — wiring diagrams, operation manual, spare parts list and a one-year factory warranty. CE Declaration of Conformity is available for customs clearance into EU and other regulated markets.

Need Higher Output? Explore Automatic PET Machines

When your daily output exceeds 50,000 bottles, upgrade to our fully automatic PET blow molding series.

FULLY AUTOMATIC SERIES

Automatic PET Blow Molding Machine

2 to 9 cavities · 2,800–12,000 BPH · Full servo drive · Auto preform loader — for mass production of water and CSD bottles.

View Fully Automatic Series →

AUTOMATIC · 4-CAVITY

4-Cavity PET Blow Molding Machine

SW-F4-650 / SW-F4-2000 · 4,500–5,500 BPH · Ideal for medium-scale water and edible oil bottle production.

View 4-Cavity Specs →

ALL PET MODELS

PET Blow Molding Machine Hub

Browse the full PET blow molding machine range — semi-automatic, fully automatic and high-speed series all in one place.

View All PET Models →

SAILWIN MACHINERY · EST. 2008 · 12,800M² FACTORY

Start Your Bottle Business with
Low Investment — Quality Guaranteed

From 100ml cosmetic vials to 20L water jugs, our semi automatic PET blow molding machines give startups and small factories a proven, CE-certified entry point — with factory-direct pricing, mold design support and a 1-year warranty.

✓ CE + ISO Certified

✓ Factory Direct Pricing

✓ Mold Design Support

✓ 12-Month Warranty

✓ Reply Within 24 Hours
