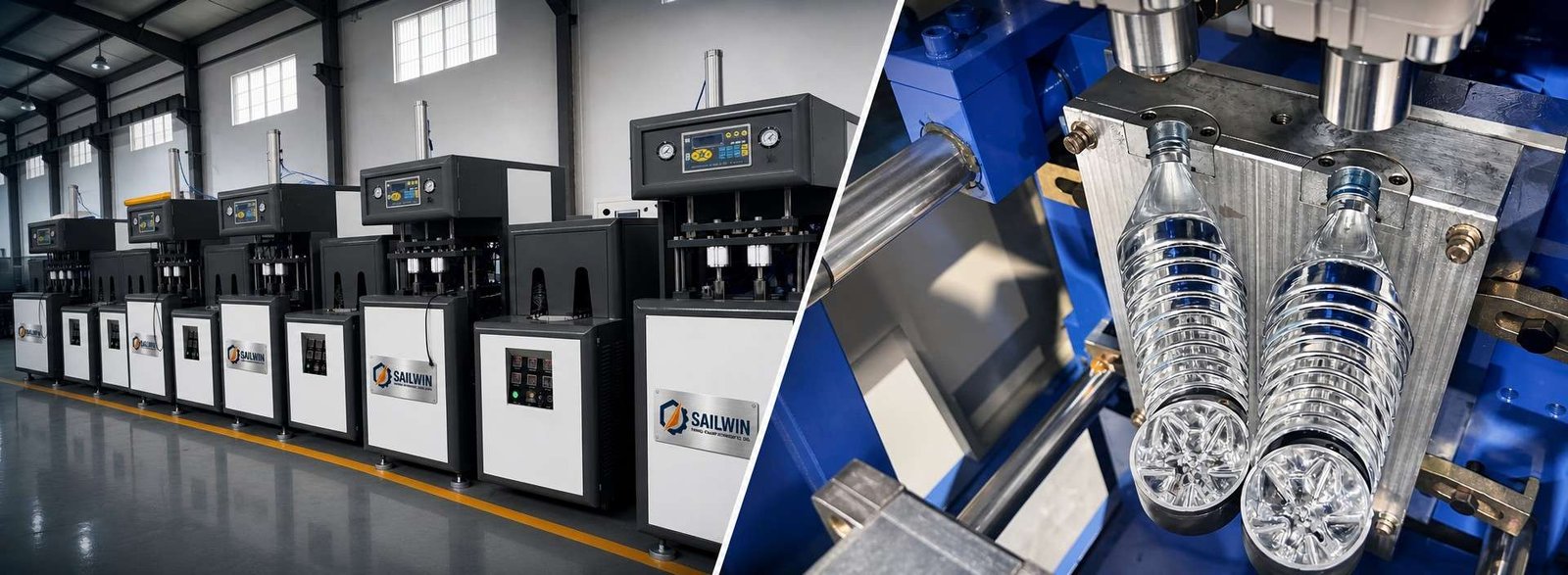

SW-2000-2 Semi Automatic PET Blow Molding Machine

Home › Semi Automatic PET Blow Molding Machine › SW-2000-2

SAILWIN MACHINERY · SW-2000-2 · CE CERTIFIED

SW-2000-2 Semi Automatic PET
Blow Molding Machine

2-cavity linear stretch blow moulder for 0.1L–2L PET bottles. 1,000 BPH output, 10T clamping force, 160×65×160 cm footprint — the entry-level machine chosen by 60+ countries.

WhatsApp
2 Cavity
Mould Spec
1,000 BPH
Max Output
0.1L–2L
Bottle Volume
160×65cm
Compact Footprint

FULL SPECIFICATIONS

SW-2000-2 Semi Automatic PET Blow Molding Machine

Factory-verified specifications. All data from Sailwin official technical sheet.

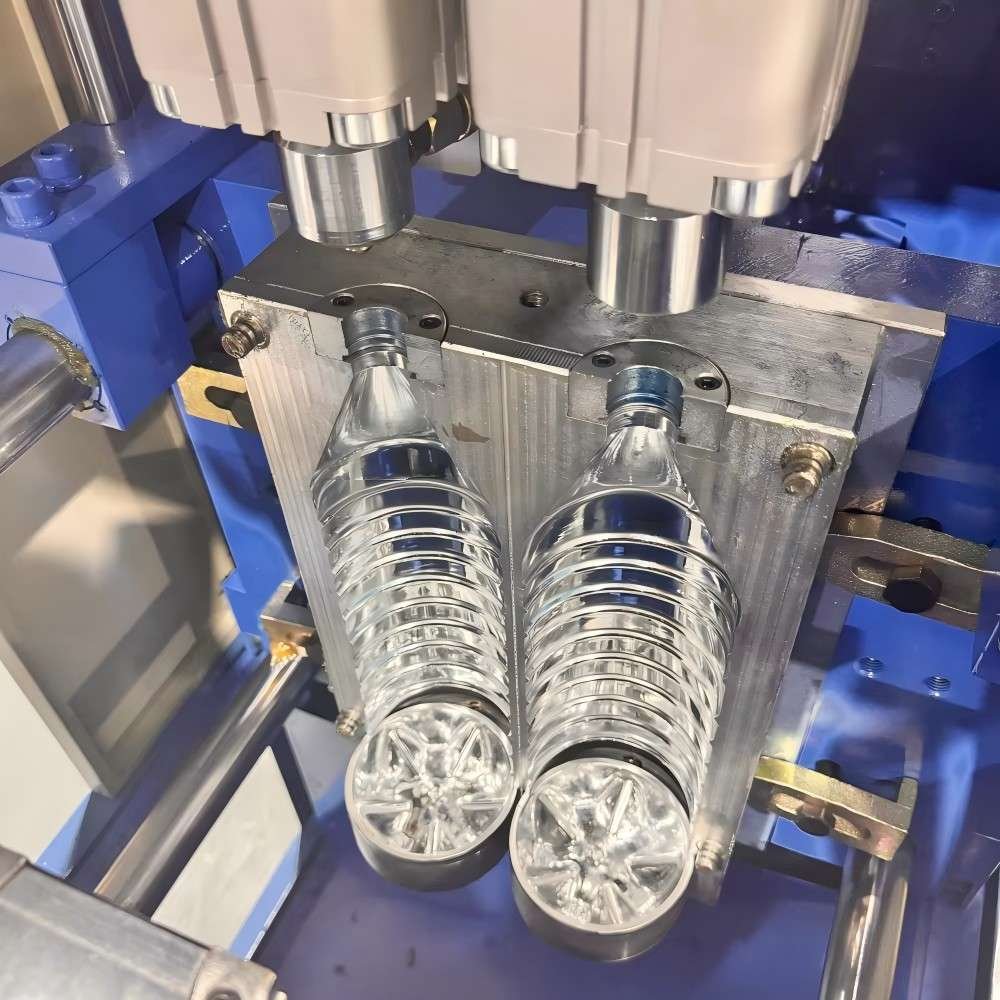

SW-2000-2 semi automatic PET blow molding machine 2 cavity mold bottle output Sailwin

2-Cavity Aluminum Mold

Both bottles blow simultaneously in one cycle. Mold change in under 30 minutes with standard tools.

ParameterUnitSW-2000-2
Number of Cavitiescavity2
Theoretical OutputBPH1,000
Clamping ForceT10
Clamping Strokemm220
Max. Stretching Strokemm220
Max. Mould Thicknessmm170
Space Between Tie Barsmm260×350
Max. Container VolumeL2cav 2L / 1cav 3L
Max. Container Heightmm260
Max. Container Diametermm35–100
Neck Diameter Rangemm15–38
Number of Heating Zonessections4 (6 adjustable)
Total Power (Full Load)kW13
Voltage Standard—380V / 50Hz
Low Pressure AirBar8–10
Blowing PressureBar25–30
Air Flow Ratem³/min1.2/30
Machine Dimension (L×W×H)cm160×65×160
Oven (L×W×H)cm180×60×140
Net Weightkg900

HEATING TECHNOLOGY

6-Zone Infrared Heating System

Independent temperature control per zone ensures uniform preform conditioning from neck to base — eliminating uneven wall thickness and wasted preforms.

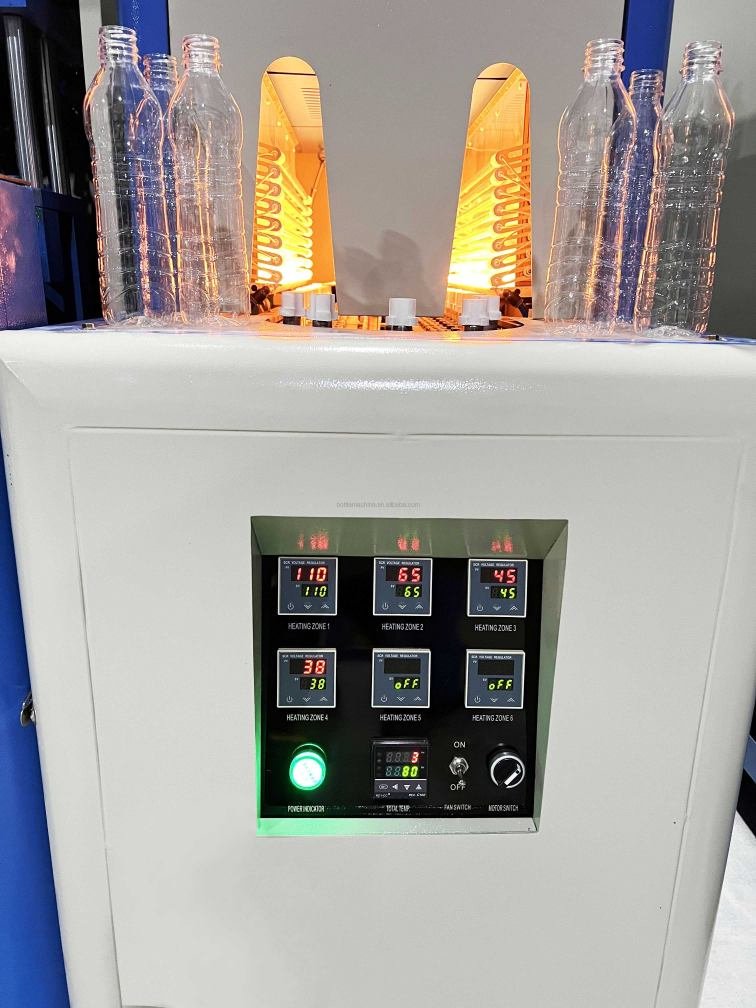

SW-2000-2 semi automatic PET blow molding machine infrared heating lamp 6 zone control panel

6 Independent Heating Zones

Digital PID controllers visible on front panel. Each zone settable from 0–200°C independently.

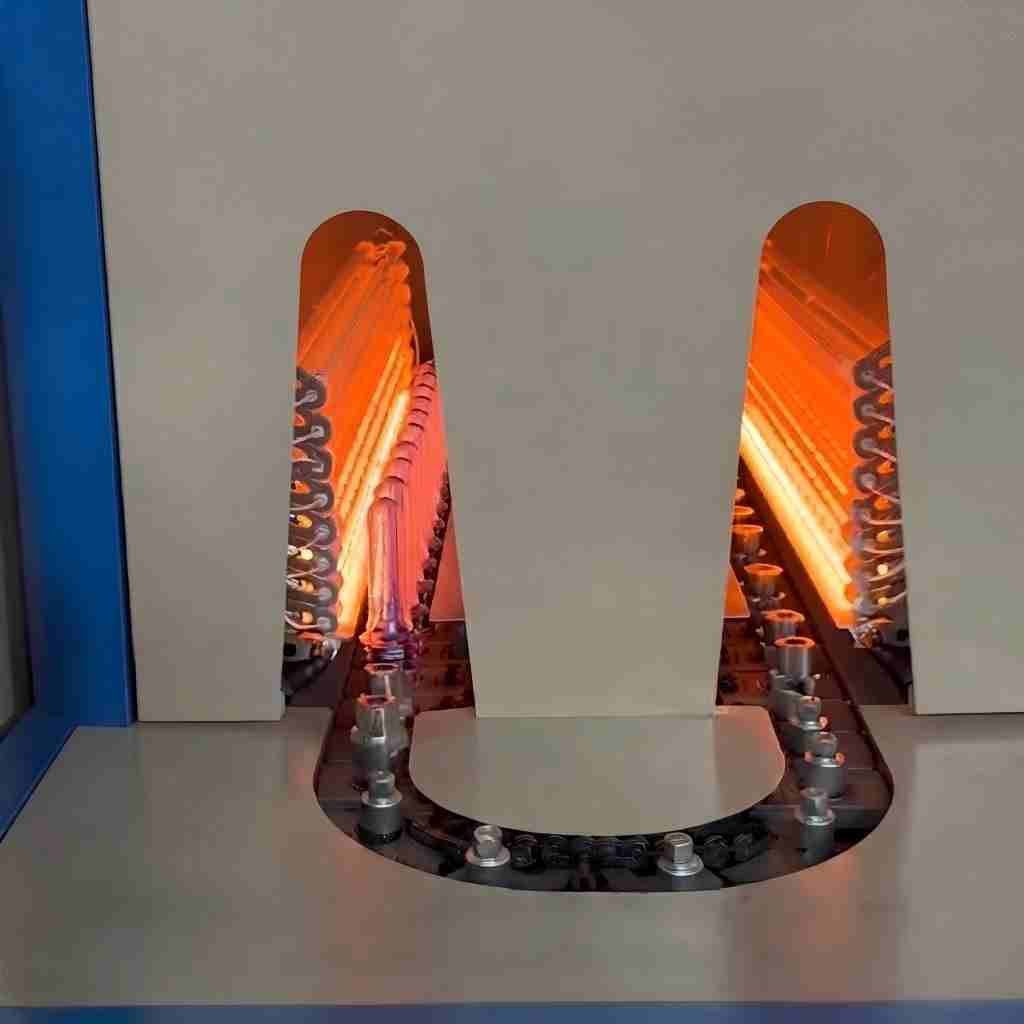

SW-2000-2 semi automatic PET blow molding machine infrared heating rod closeup orange glow

Halogen Infrared Heating Rods

U-shaped reflector design maximises energy absorption into the preform wall, reducing heating time.

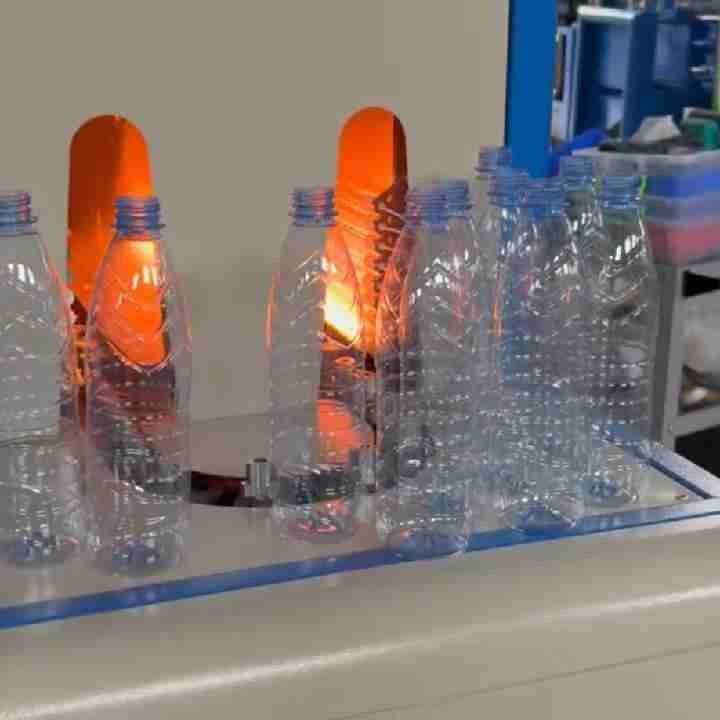

SW-2000-2 semi automatic PET blow molding machine preform infrared heating production demo

Preform-to-Bottle in One Cycle

Heated preforms on the left, finished bottles queued on the right — visible production flow at a glance.

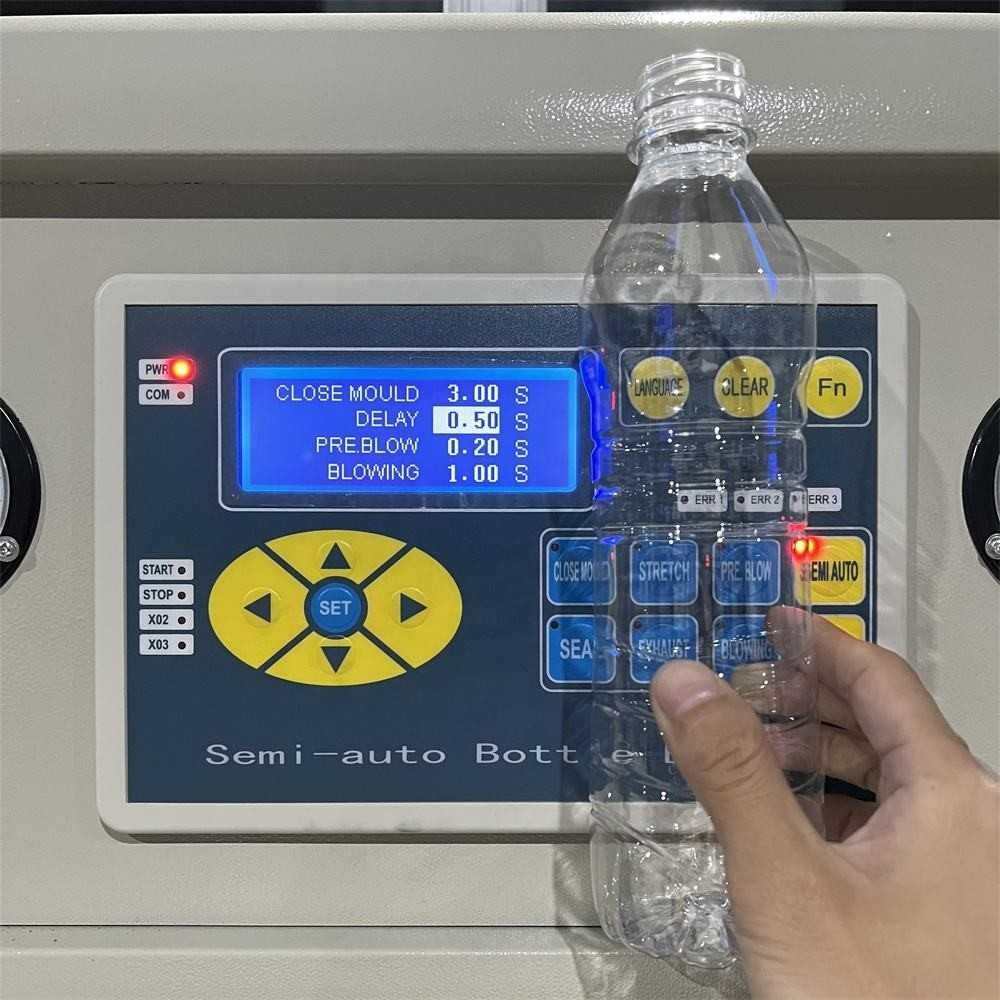

SW-2000-2 semi automatic PET blow molding machine LCD control panel close mould delay pre blow timing

LCD Control Panel — Programmable Timing

Set Close Mould / Delay / Pre-Blow / Blowing times independently. Store up to 50 bottle programs.

6

Independent Heating Zones

±1°C

Temperature Accuracy

50

Saved Bottle Programs

HOW IT WORKS

Simple 3-Step Operation — Preform to Bottle in One Cycle

No prior blow moulding experience required. One operator handles loading, blowing and quality checking — full training provided with machine delivery.

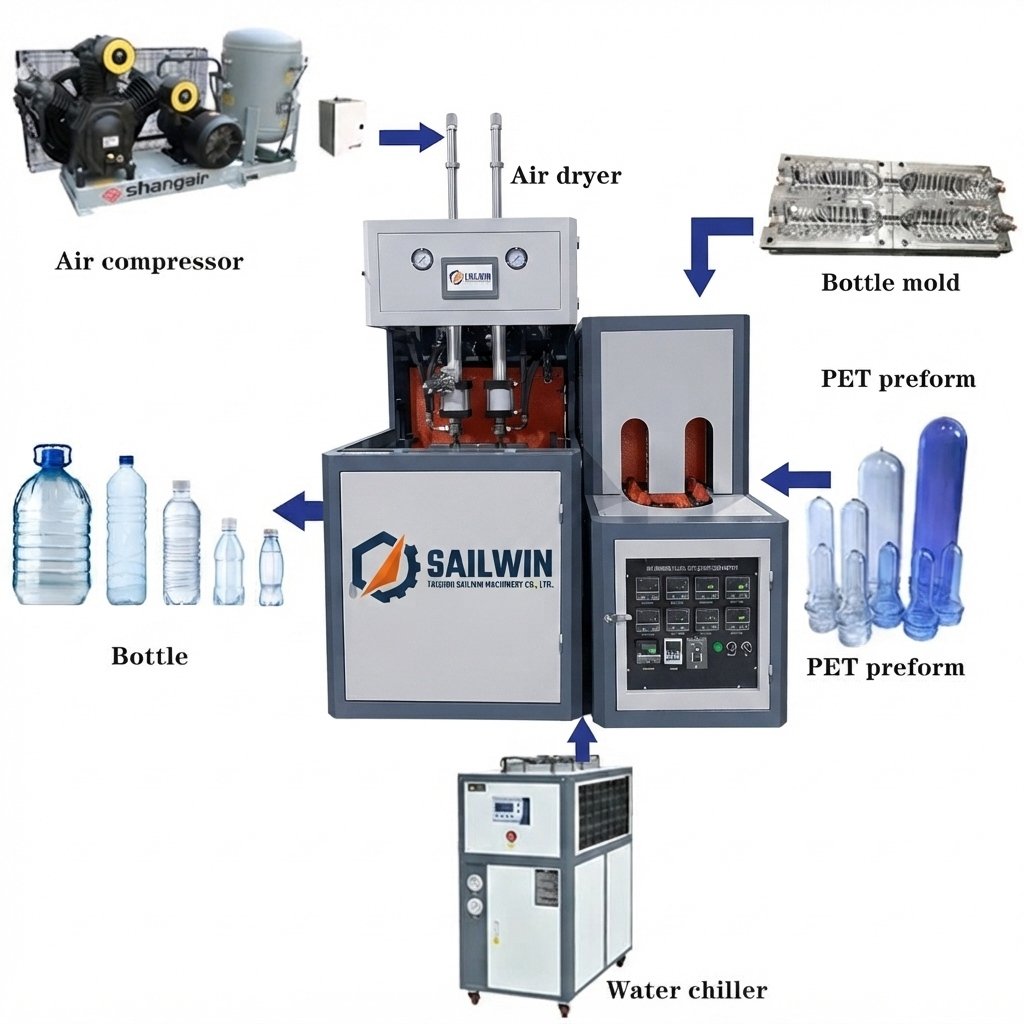

SW-2000-2 semi automatic PET blow molding machine working process diagram accessories air compressor mold chiller

Required accessories (sold separately): Air compressor (≥1.2m³/min, 30 Bar) · Air dryer · Bottle mold · Water chiller (5 HP) · PET preforms

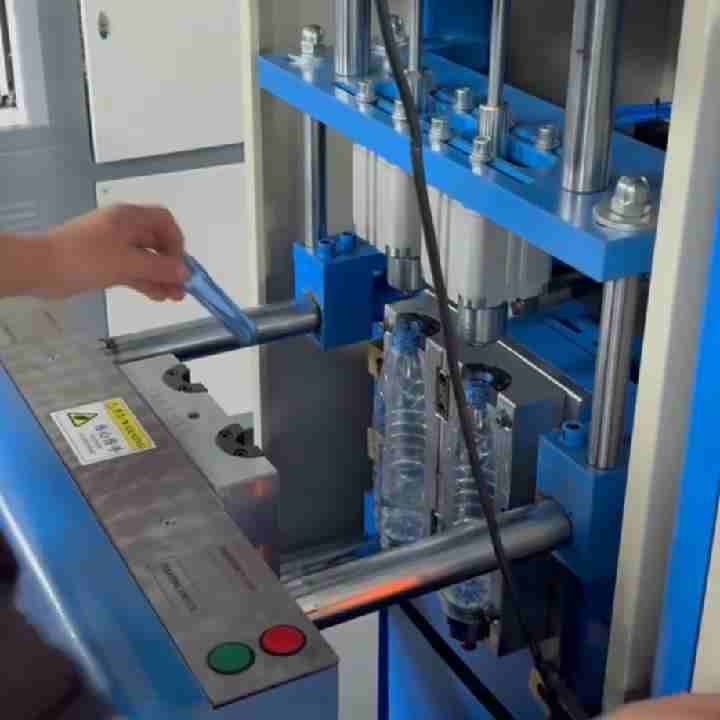

SW-2000-2 semi automatic PET blow molding machine preform loading manual operation green red button
STEP 1

Load Preforms — Press Start

Operator places 2 heated preforms into the mold station, presses the green start button. The machine handles the rest automatically.

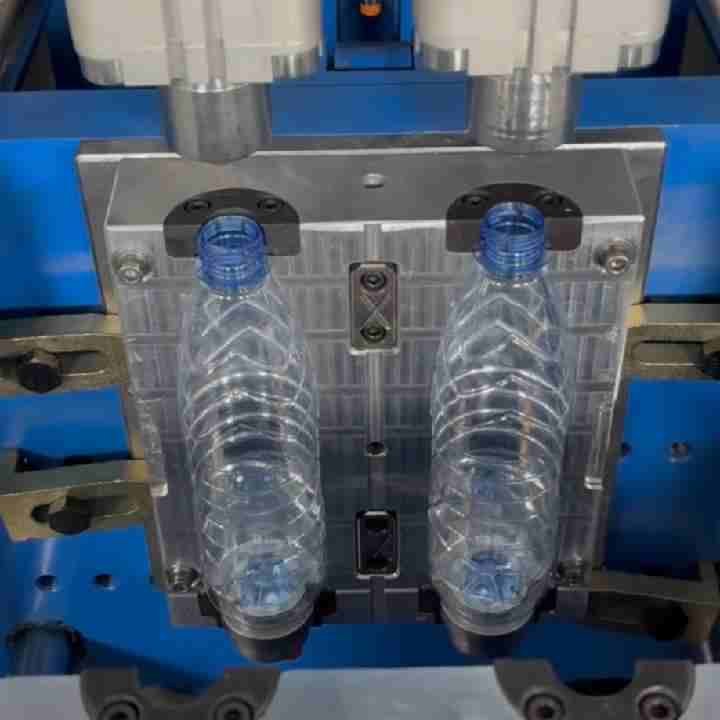

SW-2000-2 semi automatic PET blow molding machine open mold 2 cavity pet bottle
STEP 2

Blow & Open Mold

Machine closes mold, stretches rod, pre-blows then high-pressure blows. Mold opens automatically — 2 bottles per cycle.

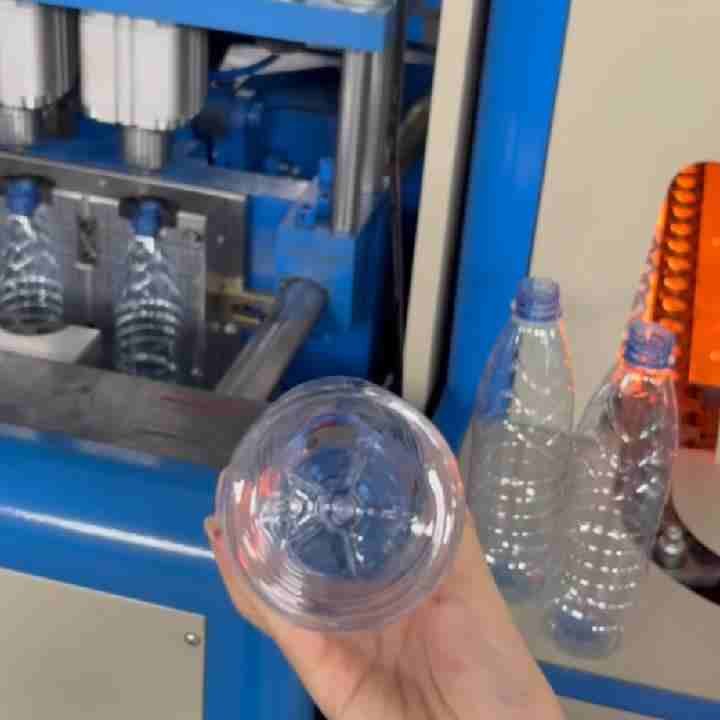

SW-2000-2 semi automatic PET blow molding machine finished PET bottle quality check output
STEP 3

Collect & Quality Check

Finished bottles exit the mold. Inspect base for even wall distribution. Cycle time: approx. 4–6 seconds per pair.

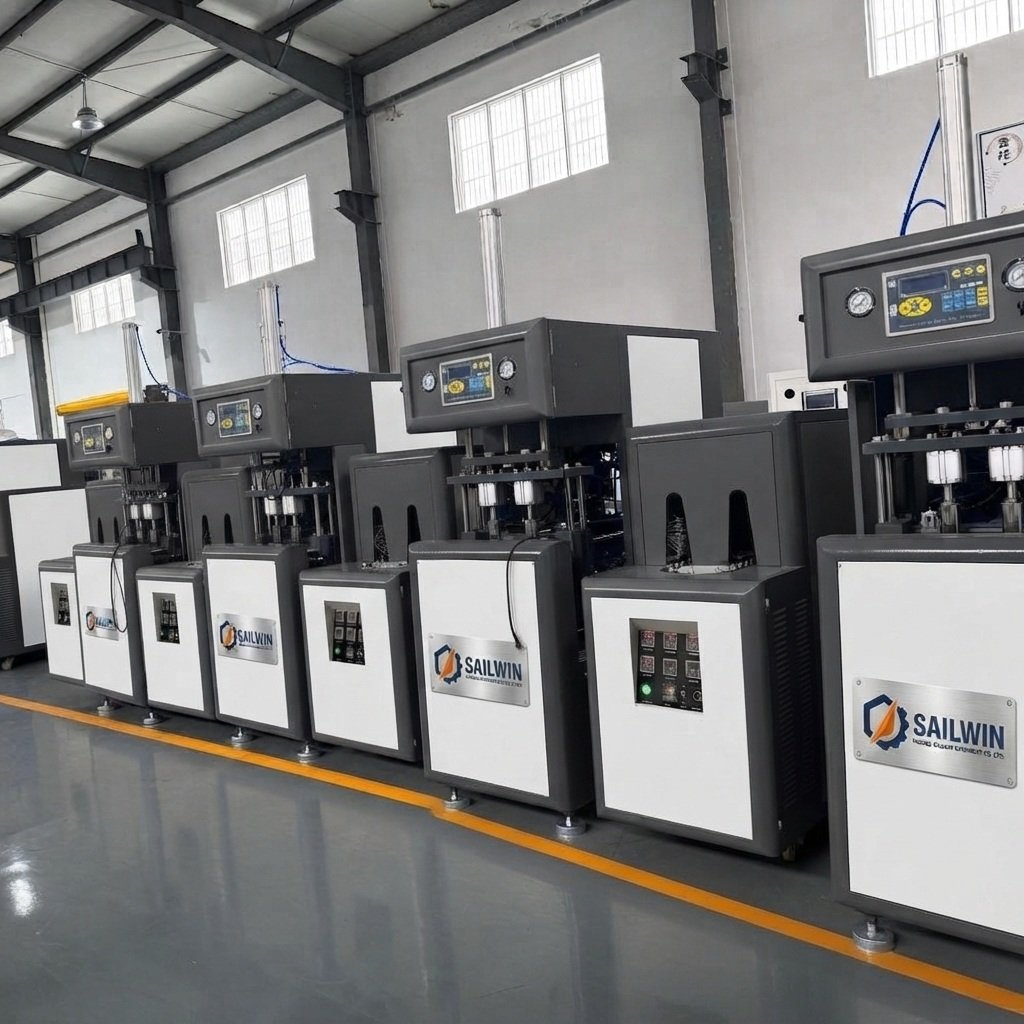

Sailwin SW-2000-2 semi automatic PET blow molding machine factory showroom multiple units in stock

FACTORY DIRECT

Sailwin SW-2000-2 — Stock Ready, Ship in 7 Days

The SW-2000-2 is Sailwin's best-selling entry model — hundreds of units shipped to beverage plants, cosmetic fillers and water bottlers across 60+ countries since 2008. What you see in the showroom is what you receive: no middlemen, no surprise specs.

2008

Est. Year

60+

Countries

1 Year

Warranty

FAQ

SW-2000-2 Semi Automatic PET Blow Molding Machine — FAQ

What is the output of the SW-2000-2 semi automatic PET blow molding machine? +

The SW-2000-2 produces up to 1,000 bottles per hour in 2-cavity mode for bottles up to 2L. In single-cavity mode it handles bottles up to 3L at approximately 500 BPH.

Output depends on bottle shape, preform weight and operator loading speed. Sailwin can provide a demo video for your specific bottle type on request.

What bottle sizes can the SW-2000-2 produce? +

The SW-2000-2 handles 0.1L to 2L in 2-cavity mode, and up to 3L in 1-cavity mode. Maximum container height 260mm, diameter 100mm, neck diameter 15–38mm.

Compatible with PCO1810, PCO1881 and most standard necks. Custom mold designs are accepted — send us your bottle drawing for a mold quotation.

How many operators does the SW-2000-2 require? +

One operator is sufficient. The operator heats preforms in the oven, loads them into the mold station and presses start. The machine handles mold closing, stretching, pre-blowing and high-pressure blowing automatically.

A second operator speeds up output on high-volume shifts. Full operation training is provided with each machine delivery.

What air compressor is needed for the SW-2000-2? +

You need a compressor capable of 25–30 Bar blowing pressure with minimum 1.2 m³/min flow rate. Low-pressure working air (8–10 Bar) handles mechanical movements.

An air dryer is strongly recommended to prevent moisture from entering the blowing valve and contaminating bottles. Sailwin can source a compatible compressor package on request.

How long does mold changeover take on the SW-2000-2? +

An experienced operator completes a mold change in under 30 minutes using standard hex tools. The SW-2000-2 uses a standard mold plate compatible with most 2-cavity aluminum molds.

Sailwin provides a mold change guide with each machine. If you run multiple bottle types, Sailwin recommends ordering a dedicated mold per SKU for fastest changeover.

What is the difference between the SW-2000-2 and a fully automatic PET blow molding machine? +

The SW-2000-2 is semi-automatic: operators manually load preforms. A fully automatic machine such as the SW-F2-650 uses an automatic preform loader and produces 2,800 BPH without manual intervention.

The SW-2000-2 costs significantly less and suits lower-volume production or specialty bottle shapes. It is the ideal starting point for new bottle producers before scaling to a fully automatic line.

Does the SW-2000-2 come with CE certification? +

Yes. The SW-2000-2 is CE certified and meets EU machinery safety directives. Sailwin provides the CE declaration of conformity and user manual in English with each machine.

The machine also complies with ISO 9001 quality management standards. Inspection reports and factory test videos are available before shipment on request.

What is the lead time and shipping cost for the SW-2000-2? +

Standard lead time is 7–15 working days for in-stock units. The SW-2000-2 ships on a standard wooden pallet (approximately 1.1 CBM, 950 kg gross).

FOB Ningbo or Shanghai pricing is available. Contact Sailwin with your destination port for a freight quote including sea and air freight options.

EXPLORE MORE

Need Higher Output or a Different Bottle Size?

semi automatic PET blow molding machine full range Sailwin

SEMI-AUTOMATIC SERIES

All Semi-Auto Models

SW-2000-2 to SW-5G — 7 models covering 100–2,000 BPH.

fully automatic PET blow molding machine 2 cavity 4 cavity Sailwin

FULLY AUTOMATIC

Automatic PET Machines

2,800–16,000 BPH high speed with zero manual preform loading.

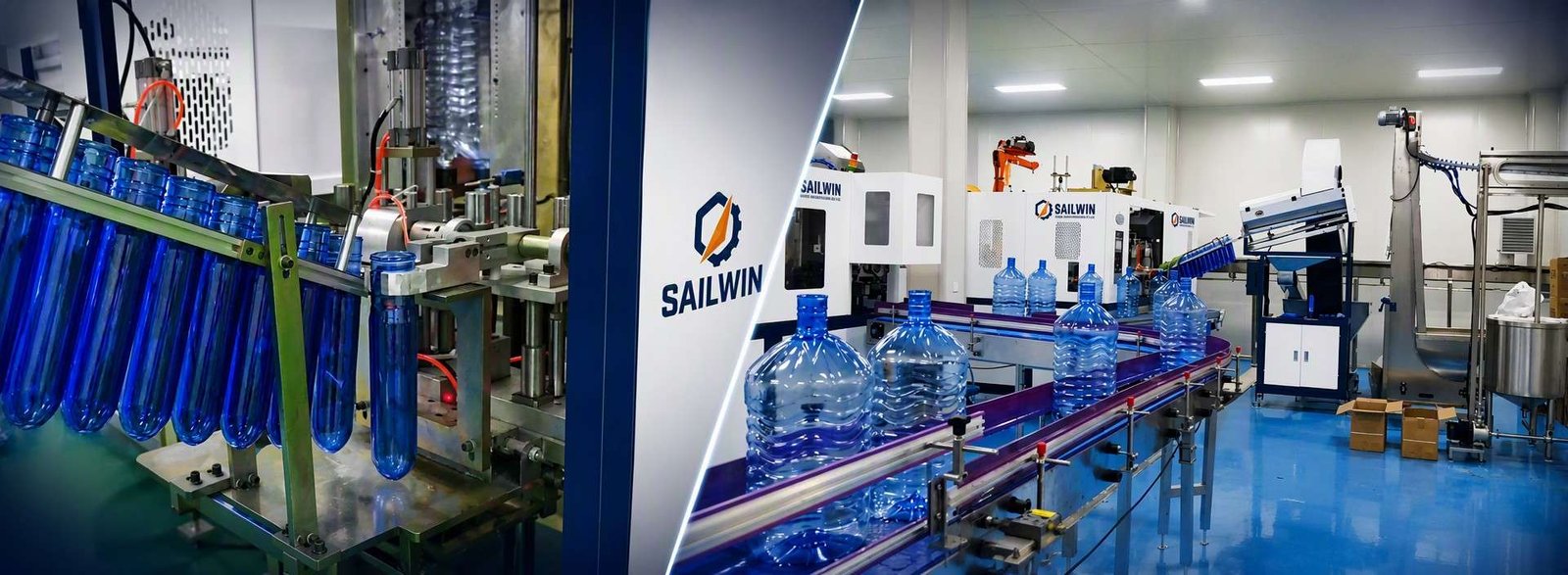

5 gallon PET blow molding machine semi automatic large jug Sailwin

LARGE VOLUME

5 Gallon / 20L Machine

SW-F5L-2 / SW-F10L-2 / SW-F20-1 for large water jugs.

READY TO ORDER · SAILWIN MACHINERY

Get Your SW-2000-2 Factory Price Today

In-stock units ship in 7–15 days. FOB Ningbo/Shanghai. CE certificate included. Tell us your bottle spec and we'll confirm compatibility before you order.
