Small Extrusion Blow
Molding Machine

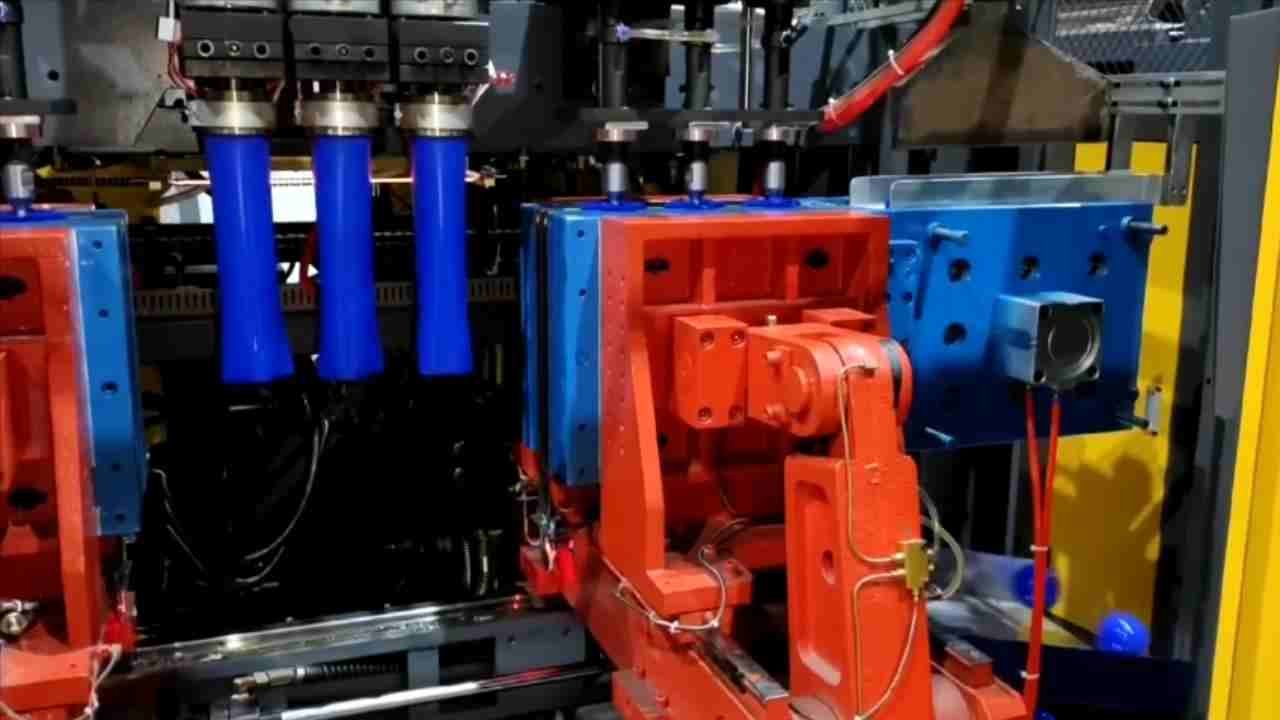

Sailwin's small extrusion blow molding machines (EBM) cover 0.5L to 15L containers — from single-die to dual-die configurations. Tie-bar clamping structure with center-position hydraulic locking ensures even force distribution and extended mold life. Suitable for HDPE, PP, PE, EVA, ABS, TPU and Nylon hollow containers.
TECHNICAL SPECIFICATIONS
Small Extrusion Blow Molding Machine — Full Model Range
14 models across two series — Standard Series and Special-Purpose (T) Series. All models available in single-die (S) or dual-die (2S) configurations. Parameters are for reference; custom specifications available on request.
| Parameter | Unit | SW-2S1L | SW-S2L | SW-2S2L | SW-2S3L | SW-S5L | SW-2S5L | SW-S12L | SW-2S12L |
|---|---|---|---|---|---|---|---|---|---|
| Max Container Volume | L | 0.5 | 2 | 2 | 3 | 5 | 5 | 12/1.5/2 | 12/1.5/2 |
| Output (Empty Cycle) | pc/h | 950×2 | 800 | 800 | 600×2 | 700 | 700×2 | 600 | 600×2 |
| Screw Diameter | mm | 50 | 50 | 60 | 70 | 60 | 70 | 80 | 90 |
| L/D Ratio | L/D | 25 | 25 | 25 | 25 | 25 | 25 | 30 | 37 |
| Screw Motor Power | Kw | 11 | 11 | 15 | 22 | 15 | 22 | 30 | 37 |
| HDPE Output | Kg/hr | 30~40 | 30~40 | 50~60 | 70~85 | 50~60 | 70~85 | 100~120 | 130~160 |
| Clamping Force | Kn | 20 | 38 | 38 | 80 | 68 | 68 | 110 | 110 |
| Platen Opening Stroke | mm | 100~250 | 138~368 | 138~368 | 135~360 | 148~508 | 148~508 | 180~600 | 180~600 |
| Platen Size | mm | 100×280 | 300×320 | 300×320 | 250×430 | 370×390 | 370×390 | 500×510 | 500×510 |
| Mold Traverse Stroke | mm | 310 | 370 | 370 | 520 | 420 | 420 | 600 | 600 |
| Max Die Diameter | mm | 35 | 90 | 90 | 90 | 160 | 160 | 220 | 220 |
| Blow Air Pressure | MPa | 0.6 ~ 0.8 | |||||||
| Machine Weight | Ton | 2.5 | 2.78 | 4.5 | 4.8 | 4.8 | 6 | 7.8 | 11.2 |
| Machine Dimensions | m(L×W×H) | 2.5×1.6×2 | 3×1.6×2.1 | 3×1.6×2.1 | 3.5×2.1×2.1 | 3.5×1.8×2.1 | 3.5×2.1×2.1 | 3.3×3.3×2.6 | 3.5×3.5×2.6 |
| Parameter | Unit | SW-S2L/T | SW-2S2L/T | SW-S5L/T | SW-2S5L/T | SW-S12L/T | SW-2S12L/T |
|---|---|---|---|---|---|---|---|
| Max Container Volume | L | 2L/1 | 2L/1 | 5L/1 | 5L/1 | 2L/1; 15L/2 | 2L/1; 15L/2 |
| Output (Empty Cycle) | pc/h | 800 | 800×2 | 700 | 700×2 | 600 | 600 |
| Screw Diameter | mm | 50+25 | 60+25 | 60+25 | 70+25 | 80+25 | 90+25 |
| HDPE Output | Kg/hr | 30~45 | 50~60 | 50~60 | 70~85 | 100~120 | 130~160 |
| Clamping Force | Kn | 38 | 38 | 68 | 68 | 110 | 110 |
| Machine Weight | Ton | 3.8 | 4.5 | 6 | 6.5 | 10.2 | 11.2 |
| Machine Dimensions | m(L×W×H) | 3×1.6×1.75 | 3×2×1.75 | 3.5×1.8×2.1 | 3.5×2.1×2.2 | 3.5×3×2.6 | 3.5×3.5×2.6 |
* All data are for reference only. Sailwin reserves the right to update specifications without prior notice. Contact us for custom configurations.
CONFIGURATION GUIDE

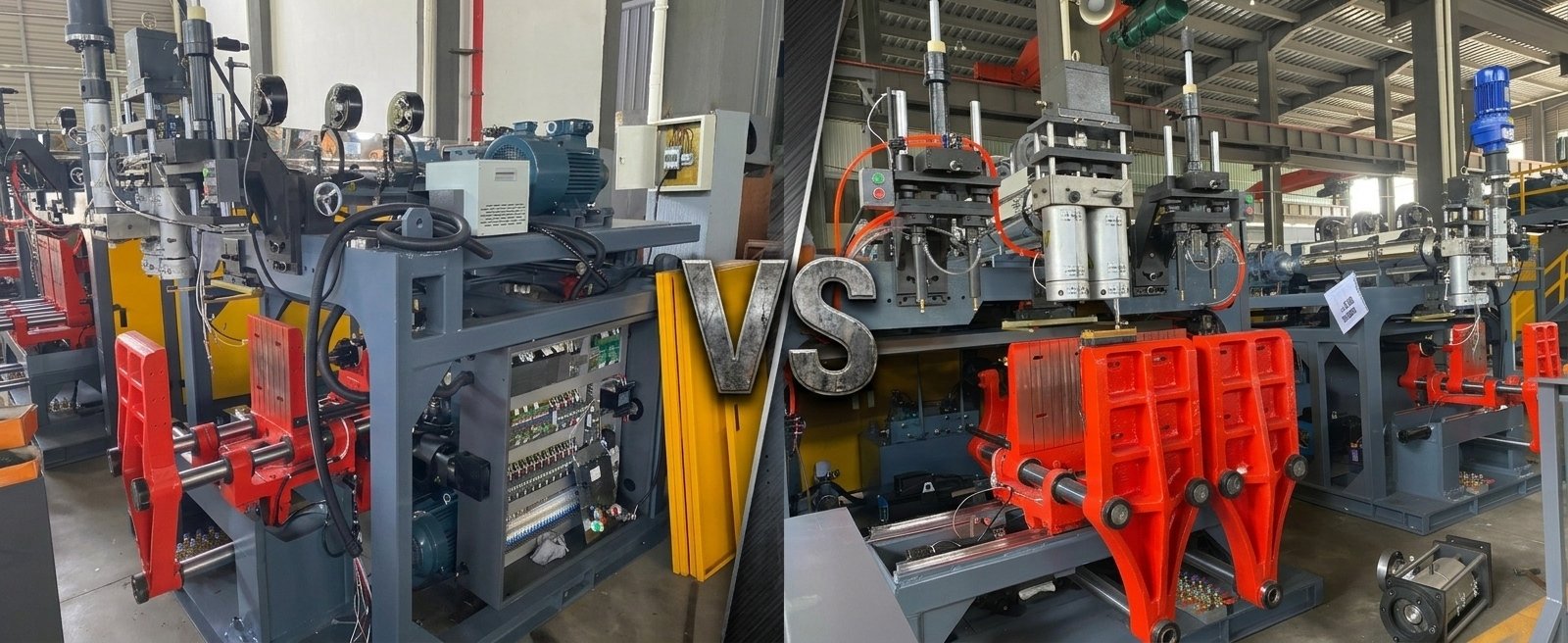

Single Die vs Dual Die — Which Configuration Do You Need?
All SW small extrusion blow molding machines are available in single-die (S prefix) and dual-die (2S prefix) configurations. Choose based on your target output and container volume.
- One die head — one parison per cycle
- Suitable for larger containers (5L–15L)
- Lower upfront cost, simpler maintenance
- Ideal for start-ups or small-batch production
- Compact footprint, easier installation
- Two die heads — two parisons per cycle
- Up to 2× the output vs single die
- Suitable for small containers (0.5L–5L)
- Higher production efficiency, lower cost per unit
- Preferred for high-volume mass production
| Container Volume | Recommended Config | Typical Output | Recommended Model |
|---|---|---|---|
| 0.5L | Dual Die | 950×2 pc/h | SW-2S1L |
| 2L | Dual Die | 800×2 pc/h | SW-2S2L / SW-2S2L/T |
| 5L | Single or Dual | 700~700×2 pc/h | SW-S5L / SW-2S5L |
| 12–15L | Single Die | 600 pc/h | SW-S12L / SW-S12L/T |
ENGINEERING ADVANTAGES
Key Technologies in Sailwin Small Extrusion Blow Molding Machines

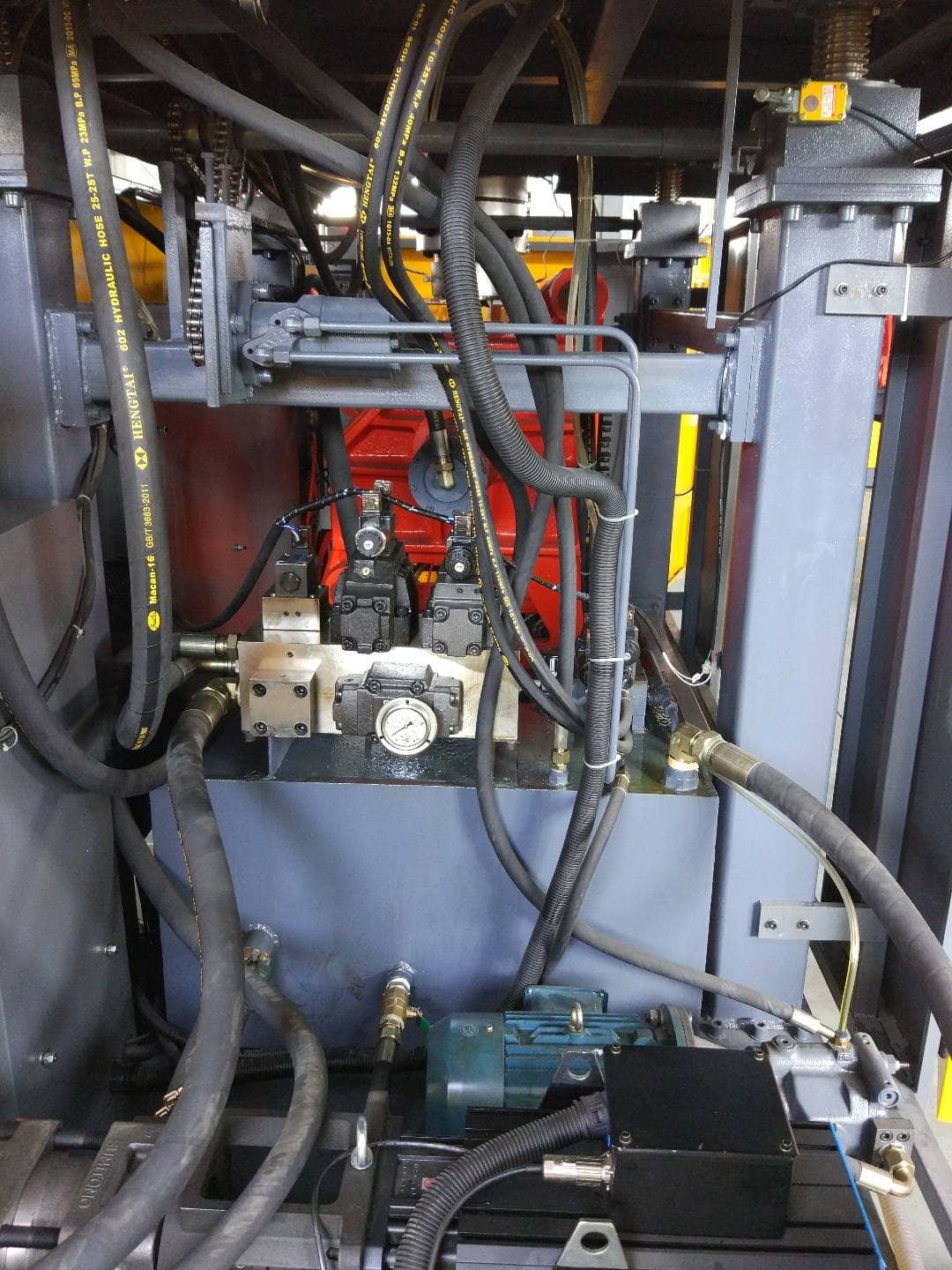

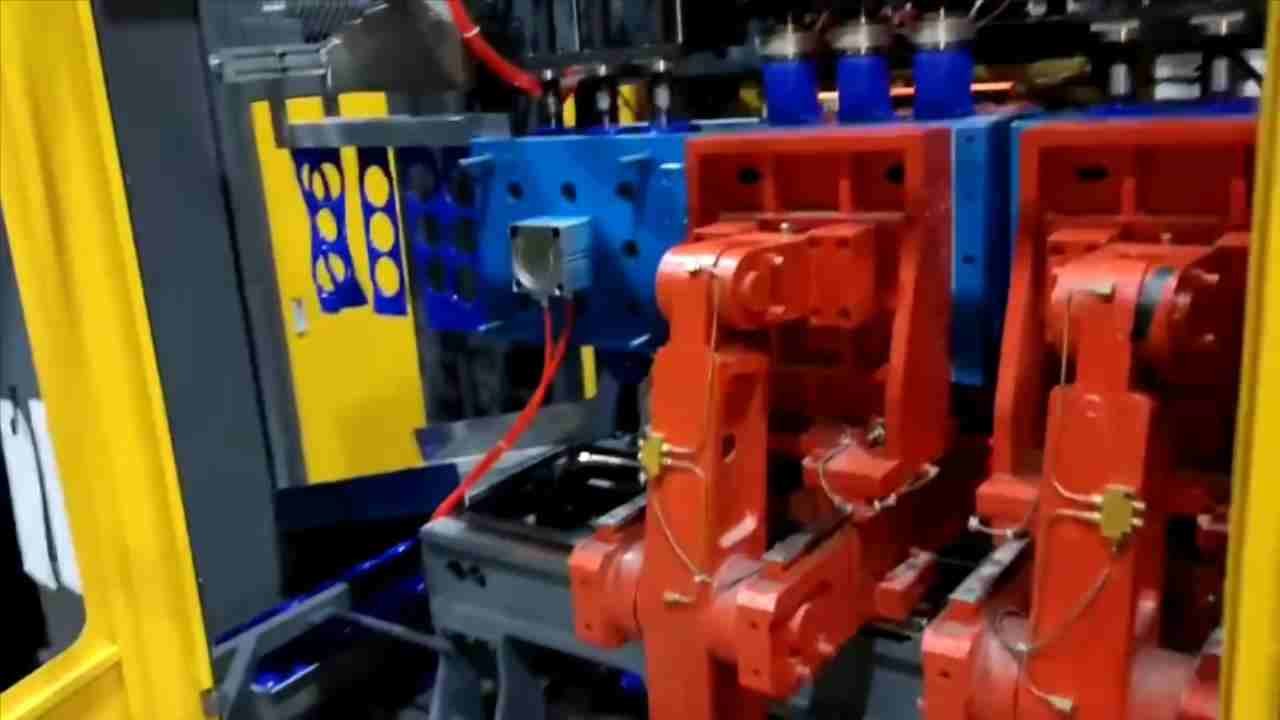

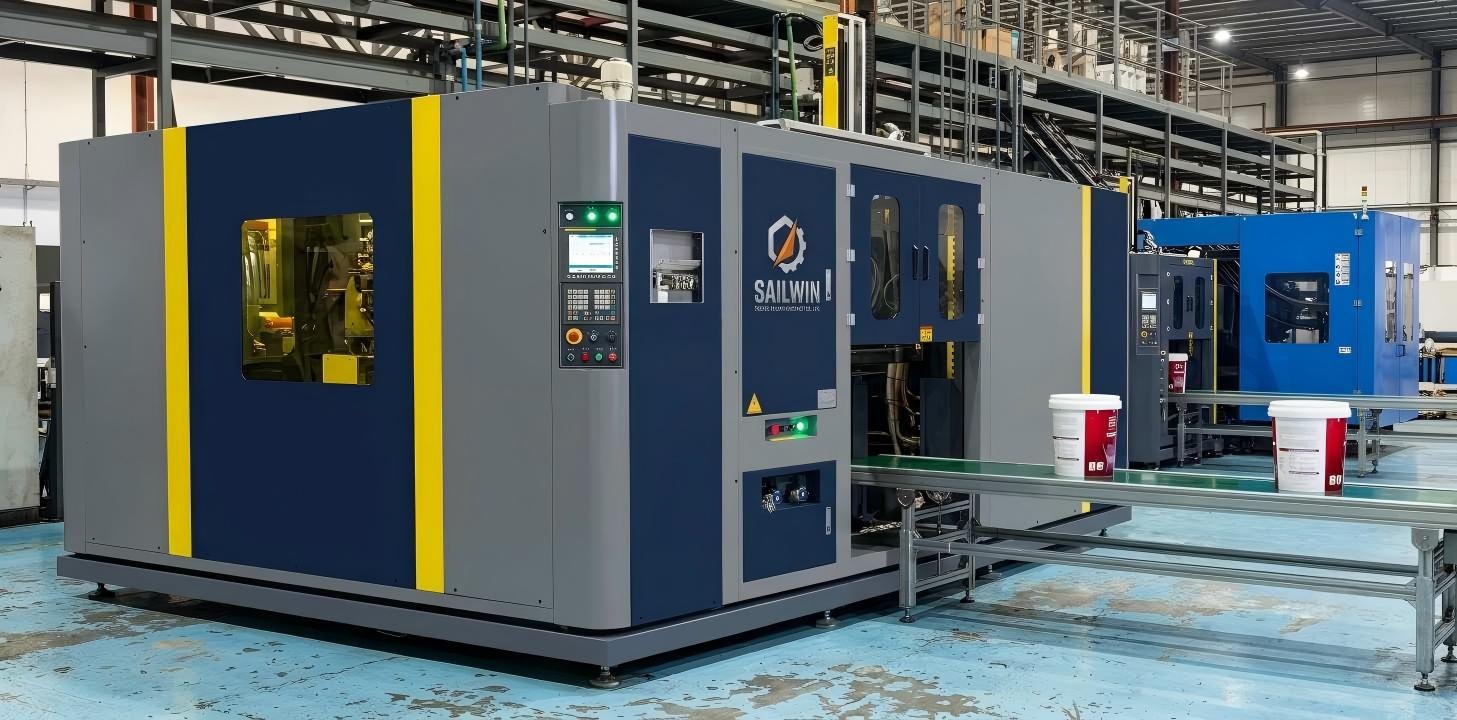

Four core engineering features that set SW small EBM machines apart — from clamping structure to automation options.
APPLICATIONS
What Can SW Small Extrusion Blow Molding Machines Produce?

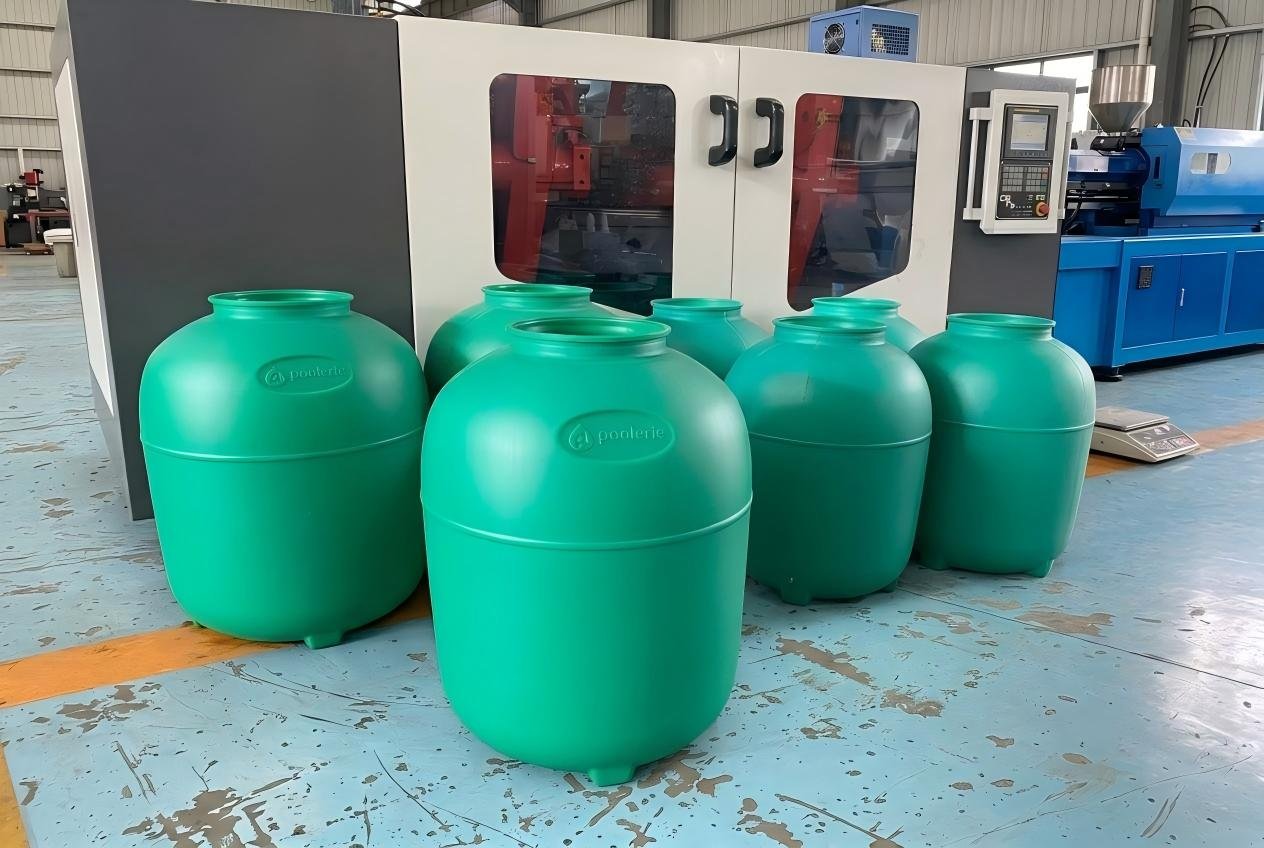

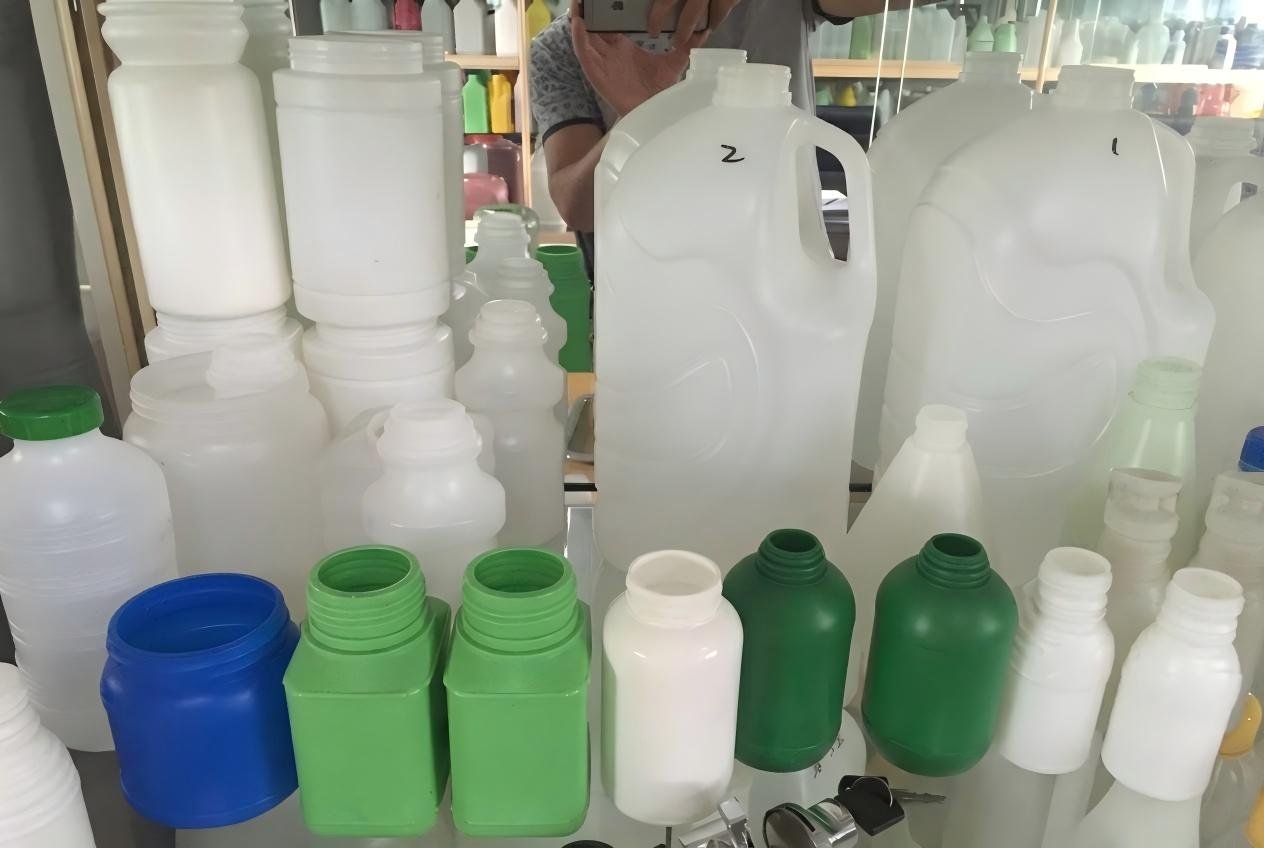

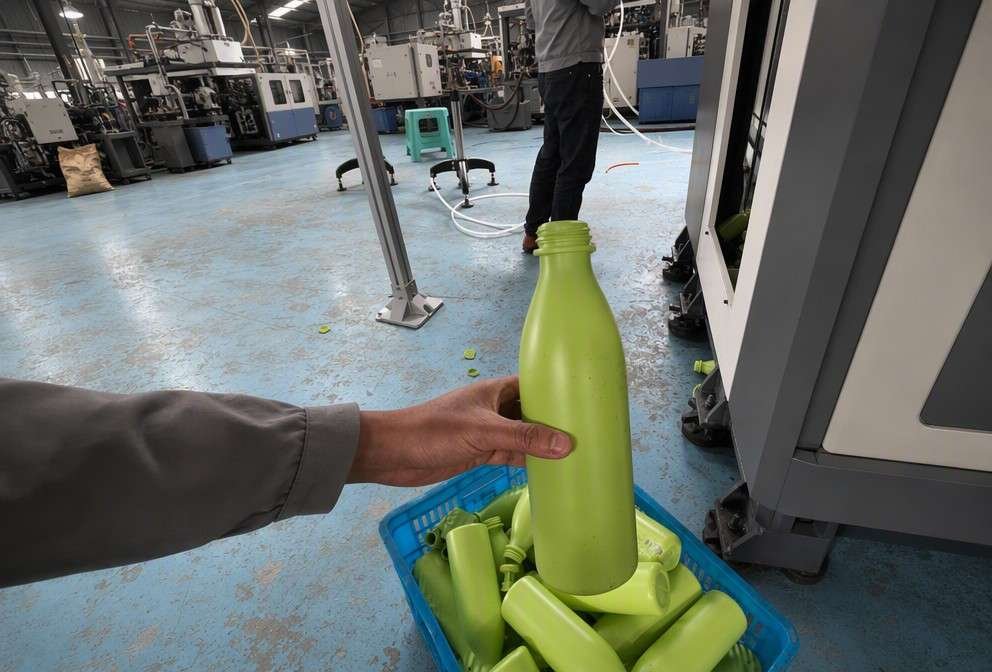

From 0.5L pesticide bottles to 15L jerrycans — SW small EBM machines serve packaging manufacturers across 6 major industries.
Not sure which model suits your container? Send us your bottle dimensions — we'll recommend the right SW machine.
COMPLETE PORTFOLIO
Complete SW Small EBM Machine Series
From compact 0.5L single die units to 12L dual-station production machines, Sailwin delivers robust packaging machinery solutions tailored for various bottle sizes and output demands.
SW-2S1L · SW-S2L · SW-2S2L · SW-2S3L · SW-S5L · SW-2S5L · SW-S12L · SW-2S12L
Traverse Rail Series: SW-S2L/T · SW-2S2L/T · SW-S5L/T · SW-2S5L/T · SW-S12L/T · SW-2S12L/T
Featured Small EBM Machine Categories
Precision-engineered machines categorized by volume capacity and station setup

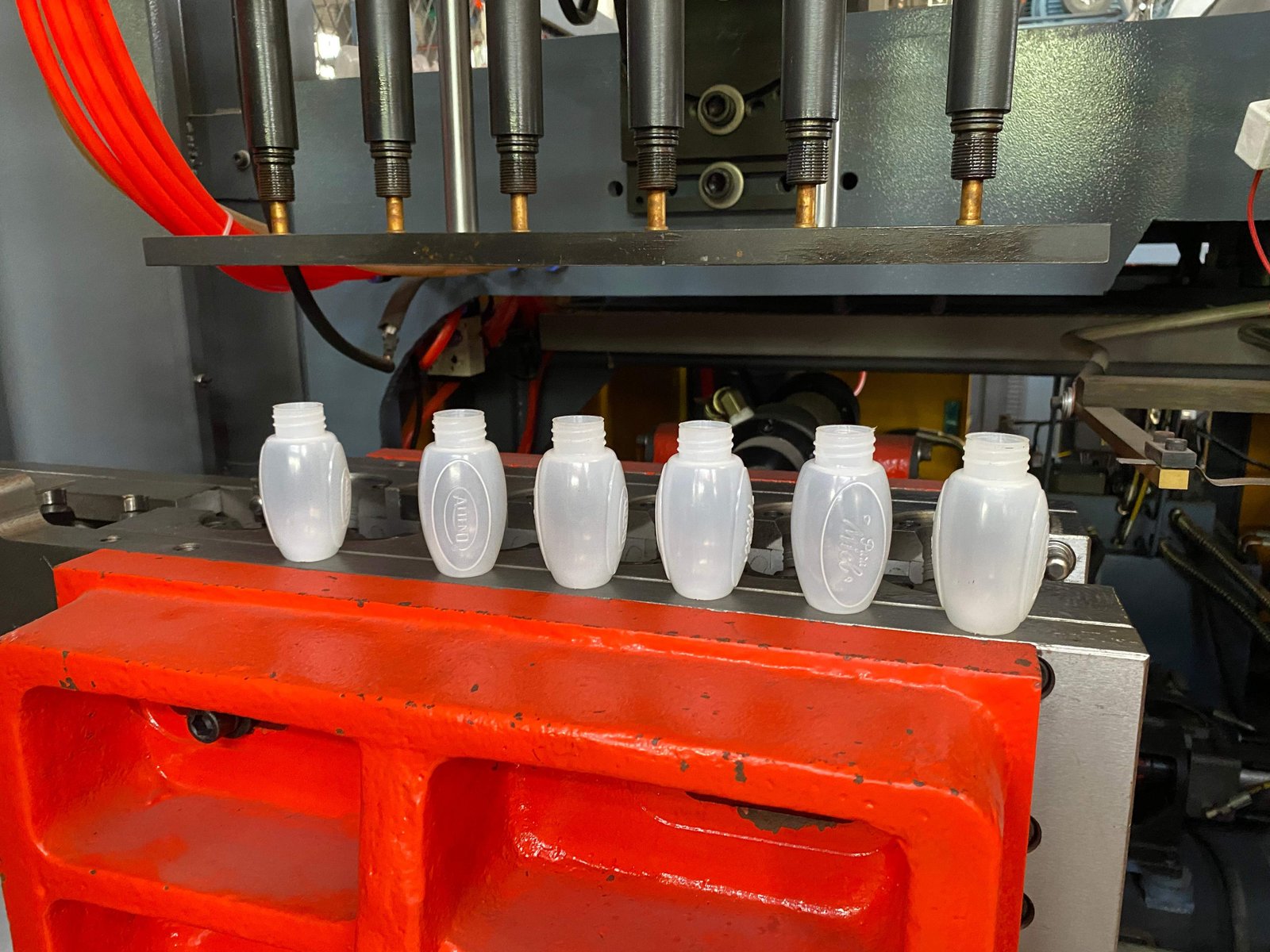

SW-2S1L (0.5L Single Die)
Ultra-compact footprint designed for high-precision manufacturing of small pharma bottles, cosmetic vials, and agrochemical samples.

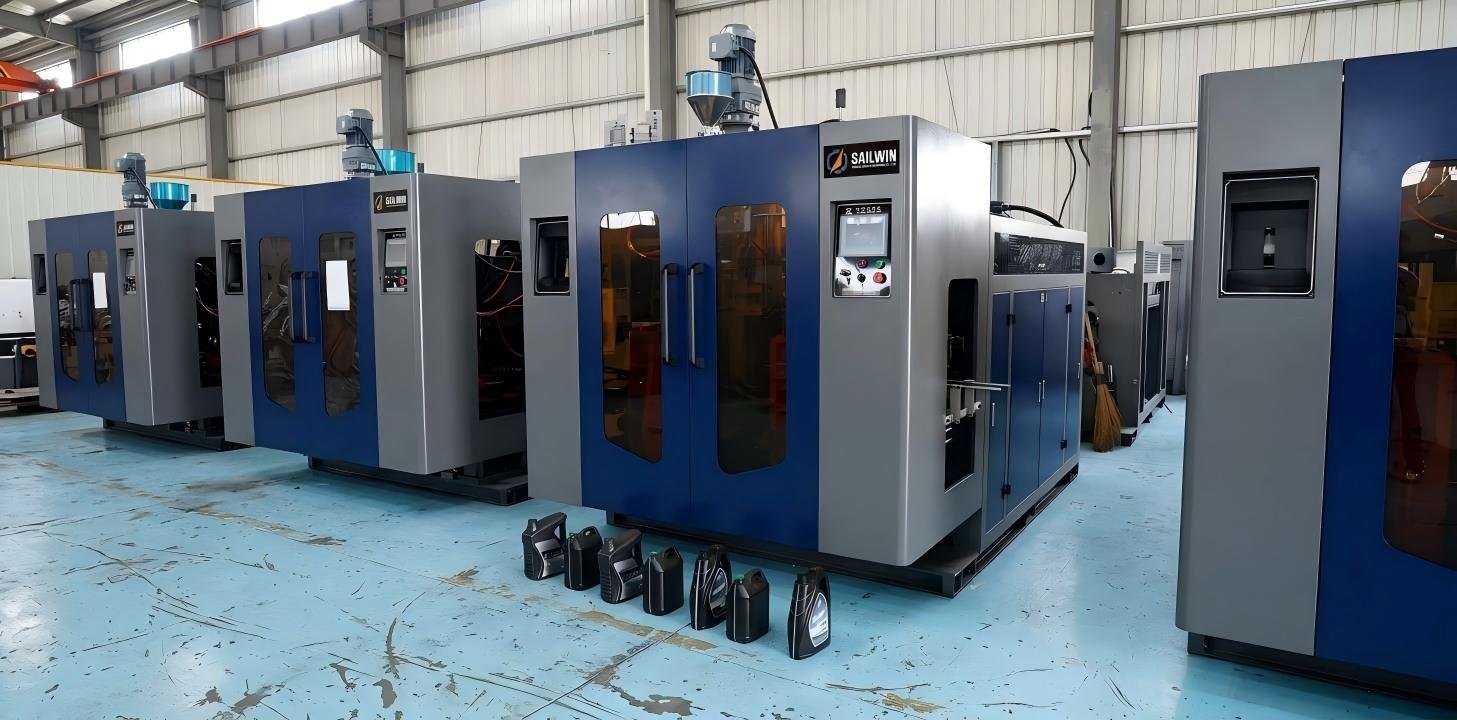

SW-2S2L (2L Double Die)
High-output double station setup featuring dual die heads. Ideal for rapid production of 1L–2L engine oil bottles and daily chemical containers.

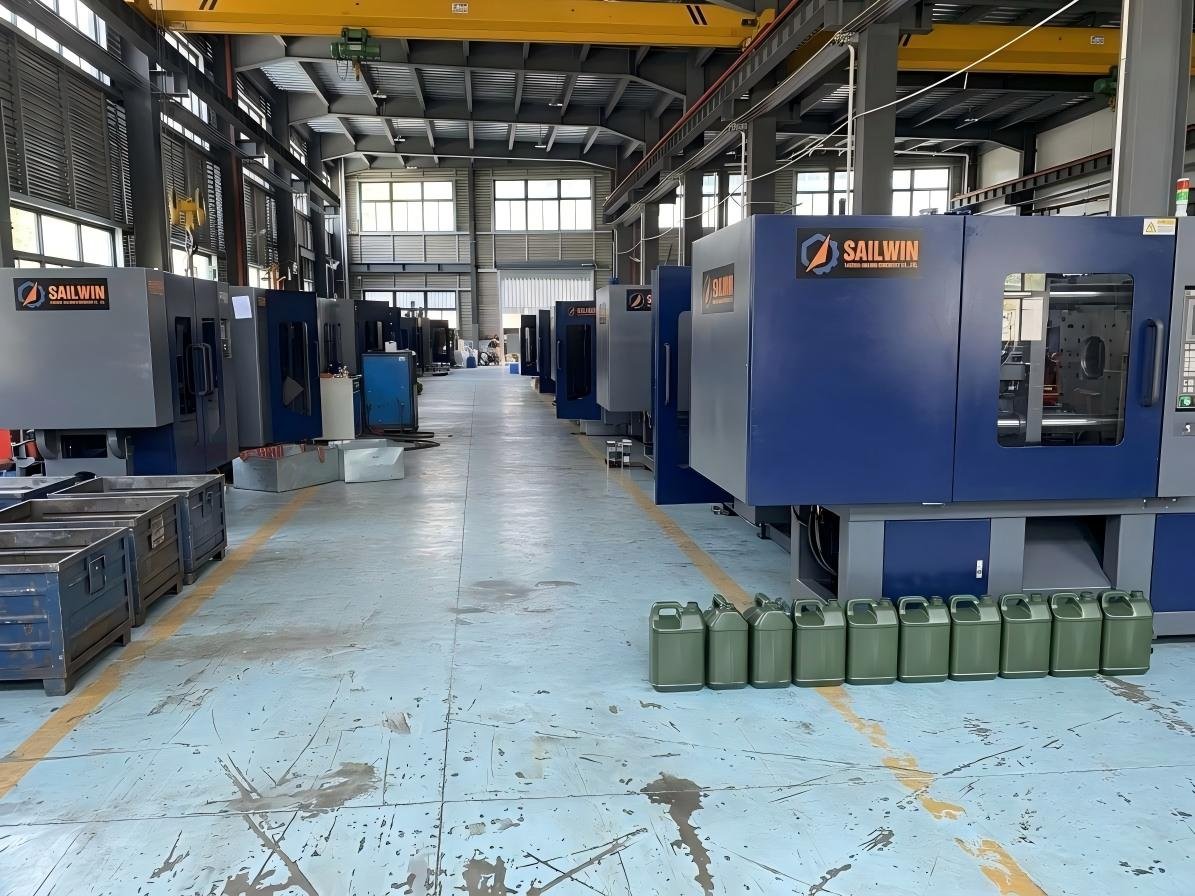

SW-2S5L (5L Jerrycan Model)
Heavy-duty clamping force and stable extrusion, specialized for 5L–10L HDPE chemical jerrycans, stackable drums, and detergent jugs.

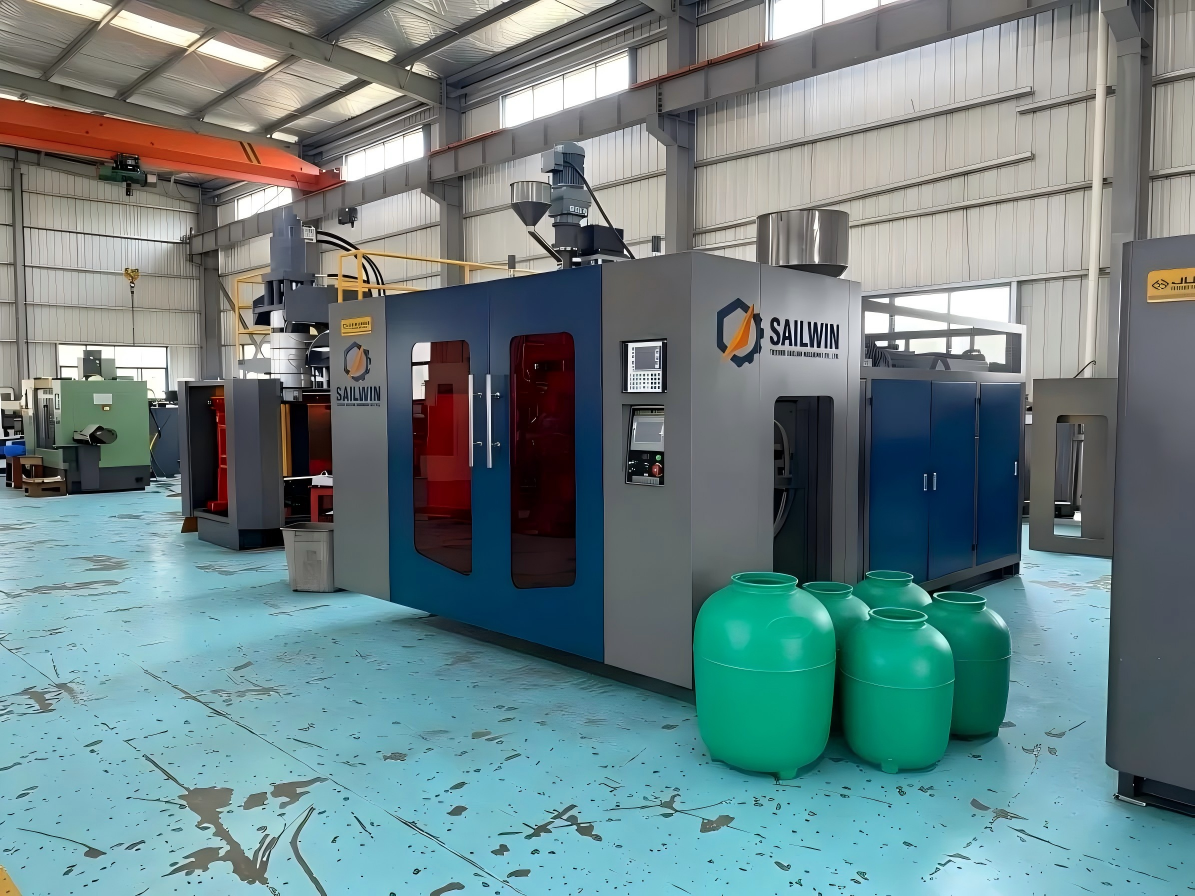

SW-2S12L (12L–15L Large Drum)
The largest model in the small EBM range, offering max volume capability for 10L, 12L, and 15L commercial chemical pails and open-top drums.
QUALITY ASSURANCE
CE Certified & Factory Tested
Every SW small extrusion blow molding machine is built under strict compliance standards and thoroughly tested before leaving our factory.
FAQ
Small Extrusion Blow Molding Machine — Frequently Asked Questions
Explore More Sailwin Extrusion Blow Molding Machines
Need larger containers or multilayer barrier packaging? View our full EBM machine range.
