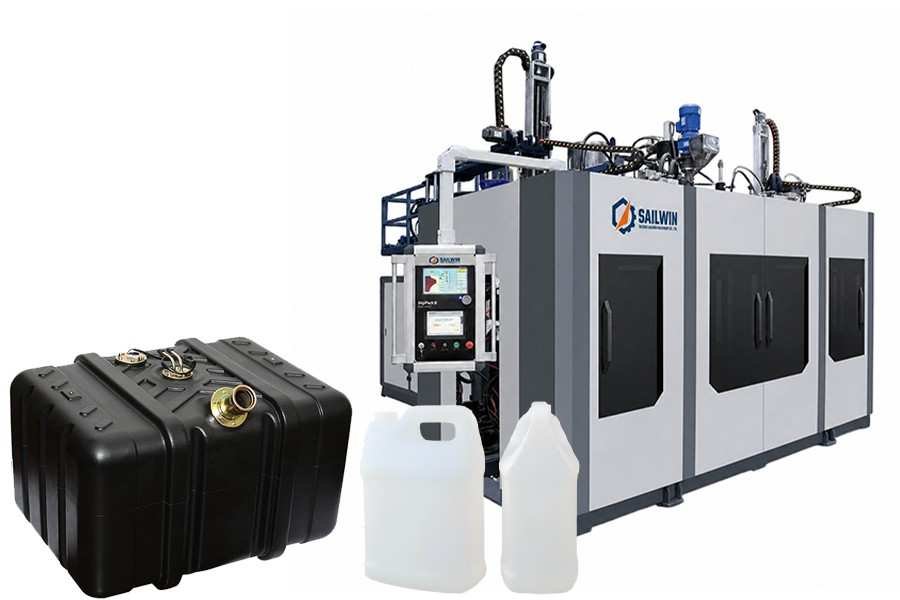

HDPE Blow Molding Machine —
0.5L to 260L, Jerrycan to Chemical Drum

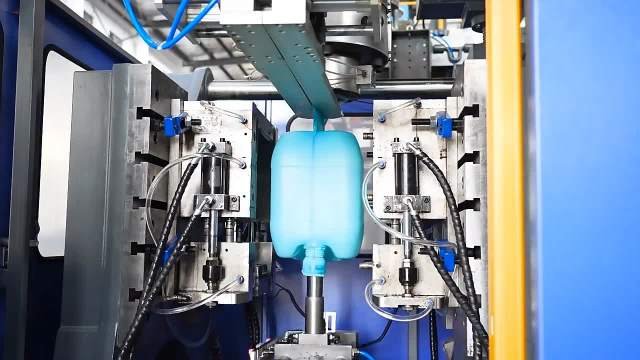

An HDPE blow molding machine is an extrusion blow molding machine (EBM) specifically designed to process High-Density Polyethylene resin into hollow containers. The machine melts HDPE pellets, extrudes them as a hollow parison, clamps it in a mold, and inflates it with compressed air.

Sailwin HDPE blow molding machines cover 0.5L household bottles to 260L industrial drums, all CE certified and shipped factory direct.

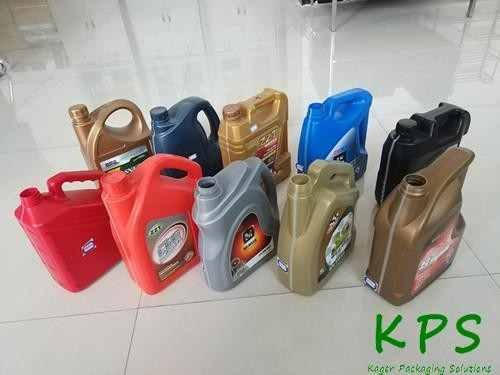

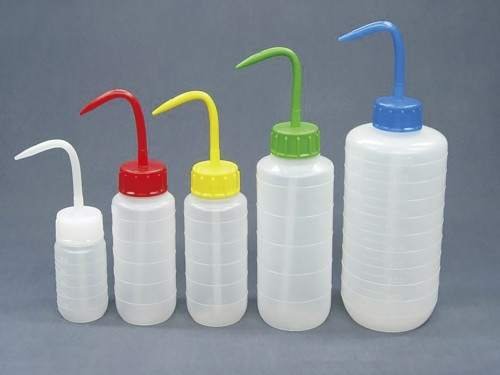

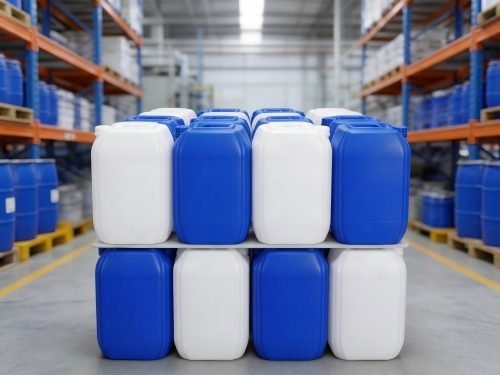

0.5L–2L motor oil bottles, detergent bottles and agrochemical small packs; 5L–12L jerrycans; 30L–80L chemical drums and stackable containers; 120L–260L industrial drums and water storage tanks.

All containers are produced in HDPE, PP or PE with custom mold tooling available for brand-specific shapes.

SW-2S1L (0.5L): 950 B/H × 2 die heads. SW-S2L (2L): 800 B/H. SW-S5L (5L): 700 B/H. SW-S30L (30L): 600 B/H. SW-S80L (80L): 360 B/H. Double die head models double the output figure.

Contact Sailwin with your container size and daily volume target for an accurate production rate calculation.

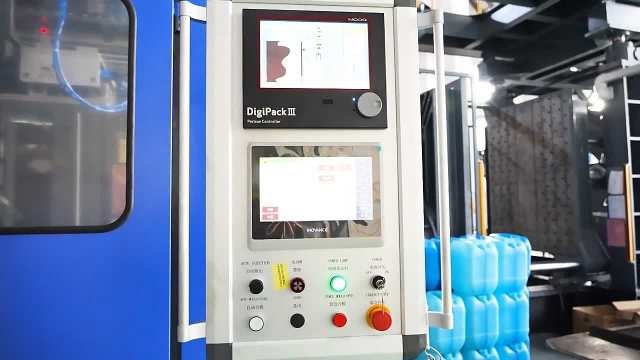

A 100-point parison controller divides the parison height into 100 programmable zones. Wall thickness at each zone is independently controlled — critical for large HDPE drums where uneven walls cause rejection.

The 100-point DigiPack III system on Sailwin machines reduces material waste by up to 15% versus machines with fewer control points.

A single die head produces one container per cycle. A double die head produces two simultaneously — doubling output with the same footprint. SW-2S2L, SW-2S5L and SW-2S12L are the double die head versions.

Double die head is recommended when daily output volume is a priority. For larger containers (30L+), single die head accumulator machines are standard.

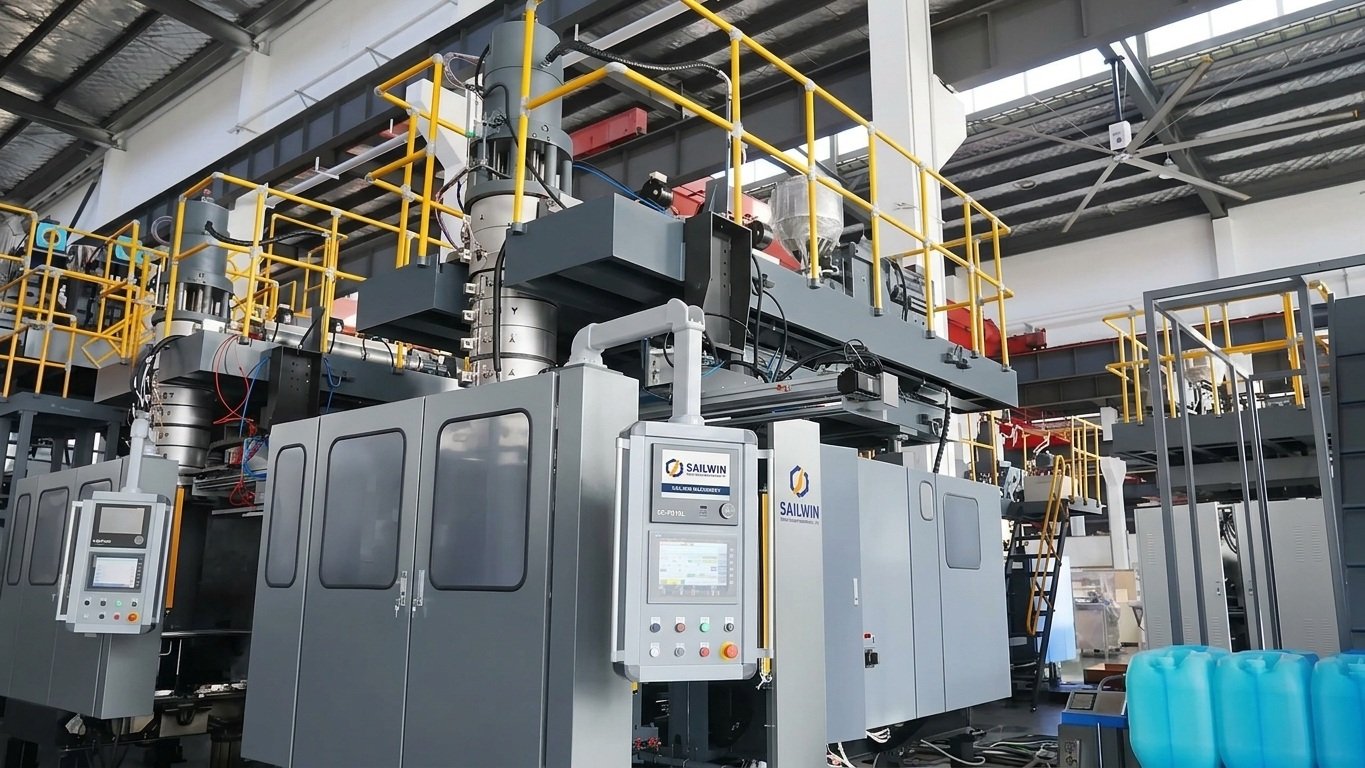

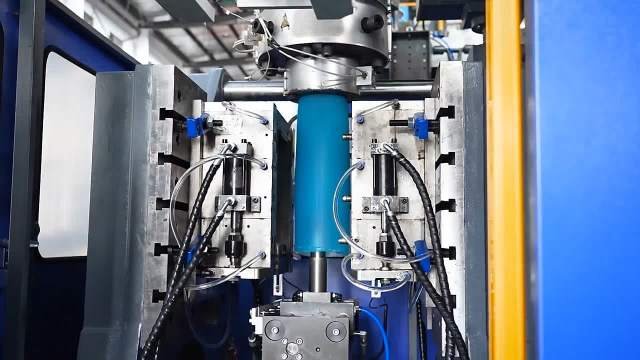

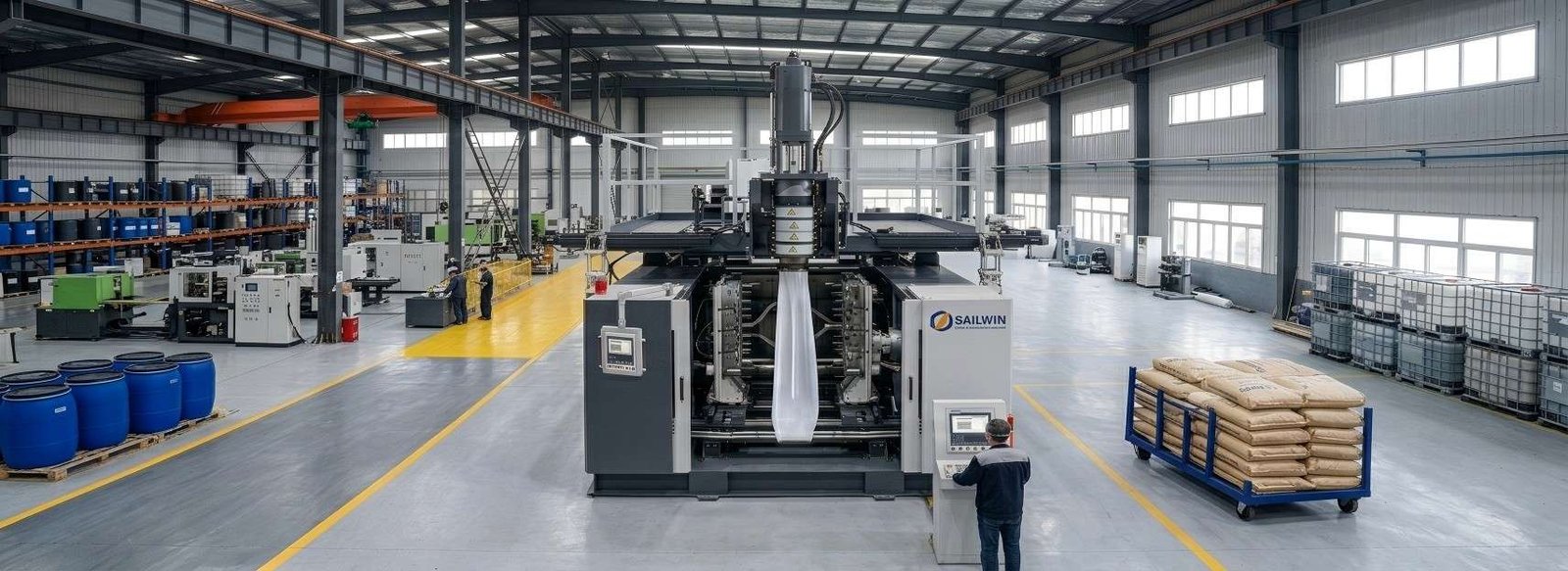

Yes. Sailwin's SW-S30L to SW-S260L accumulator series feature HMW-HDPE compatible screws with anti-sagging design. HMW-HDPE provides superior impact resistance for chemical drums and industrial containers.

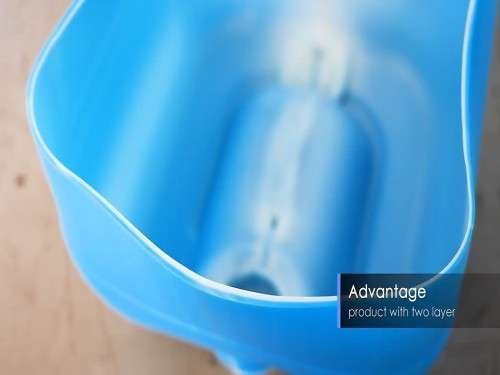

The anti-sagging geometry ensures parison stability during the blow cycle, preventing thin-wall defects at the bottom of large containers.

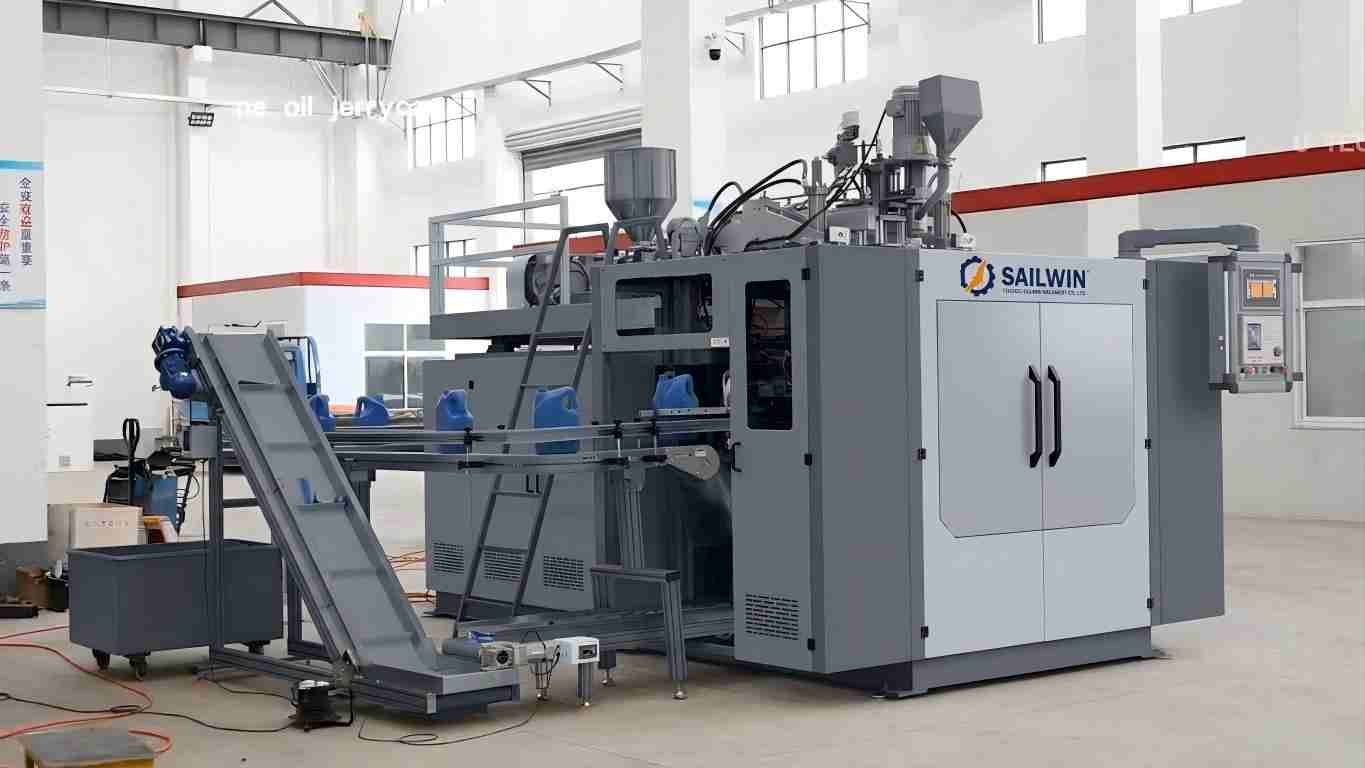

Price depends on container volume, die head count, clamping type and configuration. Small tie-bar models (SW-S2L) are significantly more affordable than large accumulator machines (SW-S80L, SW-S260L).

Contact Sailwin with your container size, daily output target and material specification for a factory-direct price within 24 hours.

Sailwin machines produce containers compatible with UN 3H1 (solid goods) and UN 3H2 (liquid goods) certification requirements when correct HDPE resin grade and mold design are used. UN certification is issued to the finished container by an accredited laboratory — not to the machine itself.

Sailwin provides mold design guidance and resin recommendations to support customers pursuing UN certification for HDPE jerrycans or drums.
